Lumi Letter Skeleton

Standard Type

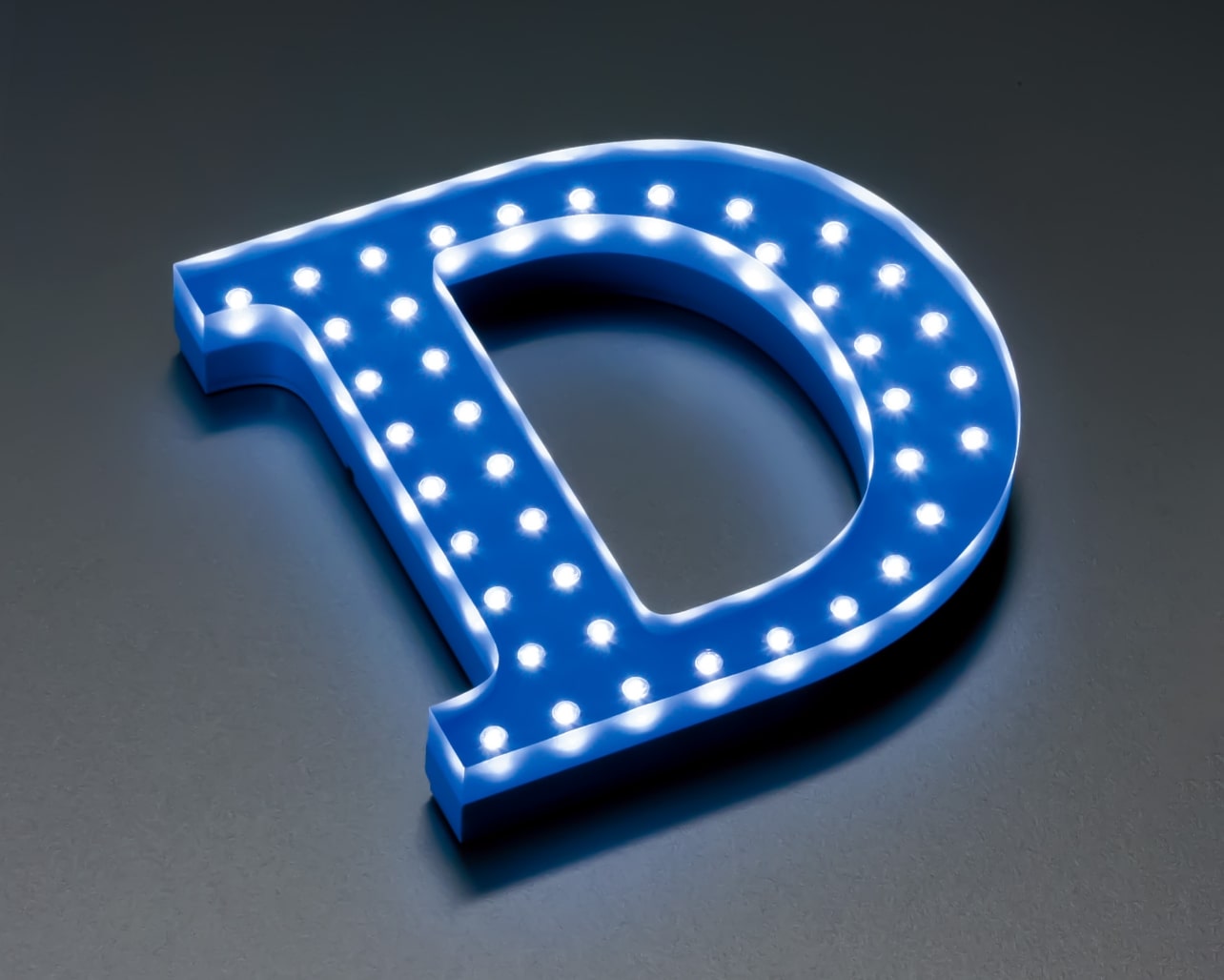

Smart LED illumination is achieved for Lumi Letter Skeleton by opening lens-shaped apertures on clear acrylic material. This uniquely designed LED sign creates remarkable eye-catching effect also when seen from a distance.

Body: Clear Acrylic 10mm Thick Blue Painted on Back Diffused Lighting Effect on Sides + Acrylic 8mm Thick Black Painted Light Source: SMD-LED Natural White — Body: Clear Acrylic 10mm Thick Blue Painted on Back
Diffused Lighting Effect on Sides + Acrylic 8mm Thick Black Painted
Light Source: SMD-LED Natural White

Showcase

Specification

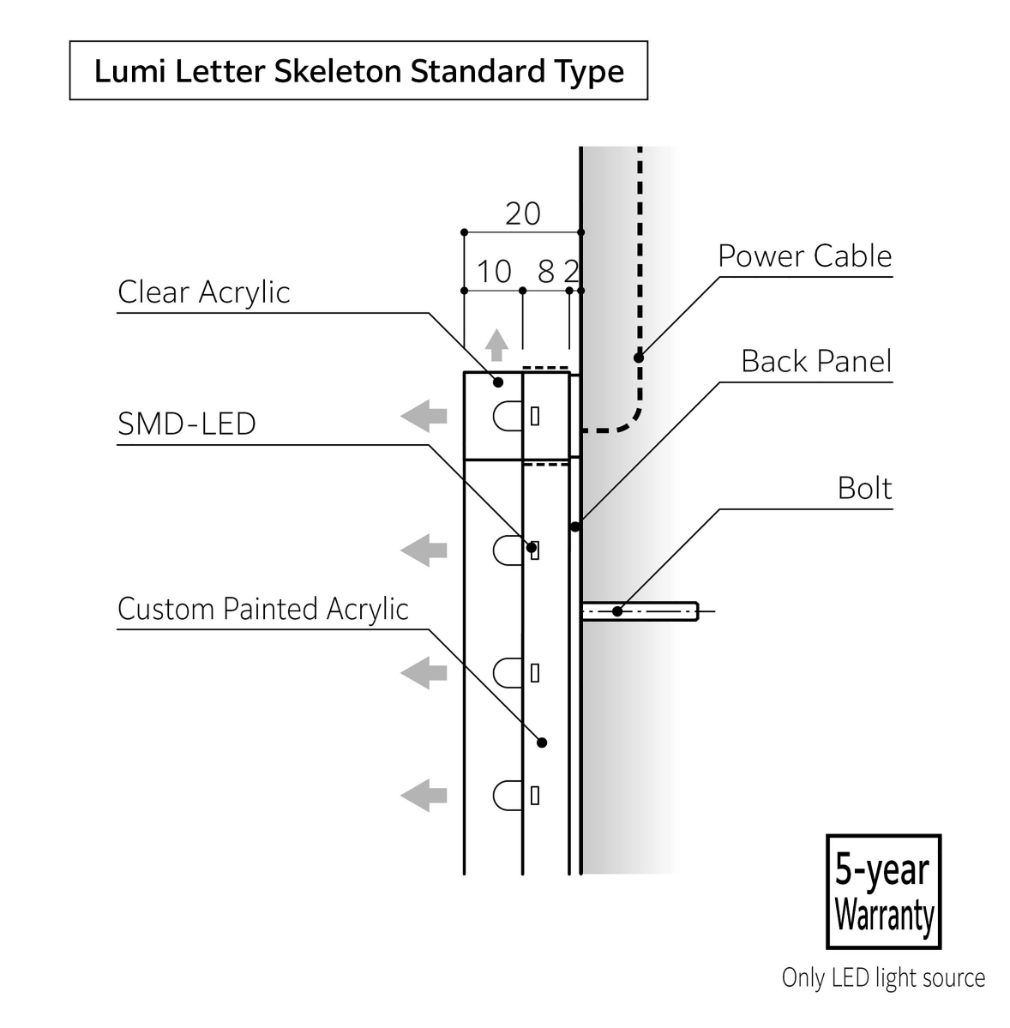

Light Source	SMD-LED on Custom Designed Circuit Board
Material,Thickness	Clear Acrylic 10mm Thick (Diffused Lighting Effect) Acrylic 8mm Thick (Custom Painted)
Size	Recommended: 150-300mm Available: 100-600mm
Minimum Stroke	12mm

Notes

*Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
*For a Quick Release System, please refer to this.
*The designated AC/DC Power Supply to be used.
*This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

*See “Warranty Policy” before placing orders.
*Product specifications and appearance may be subject to change without notice due to the improvement.
*Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.

Color Variations
