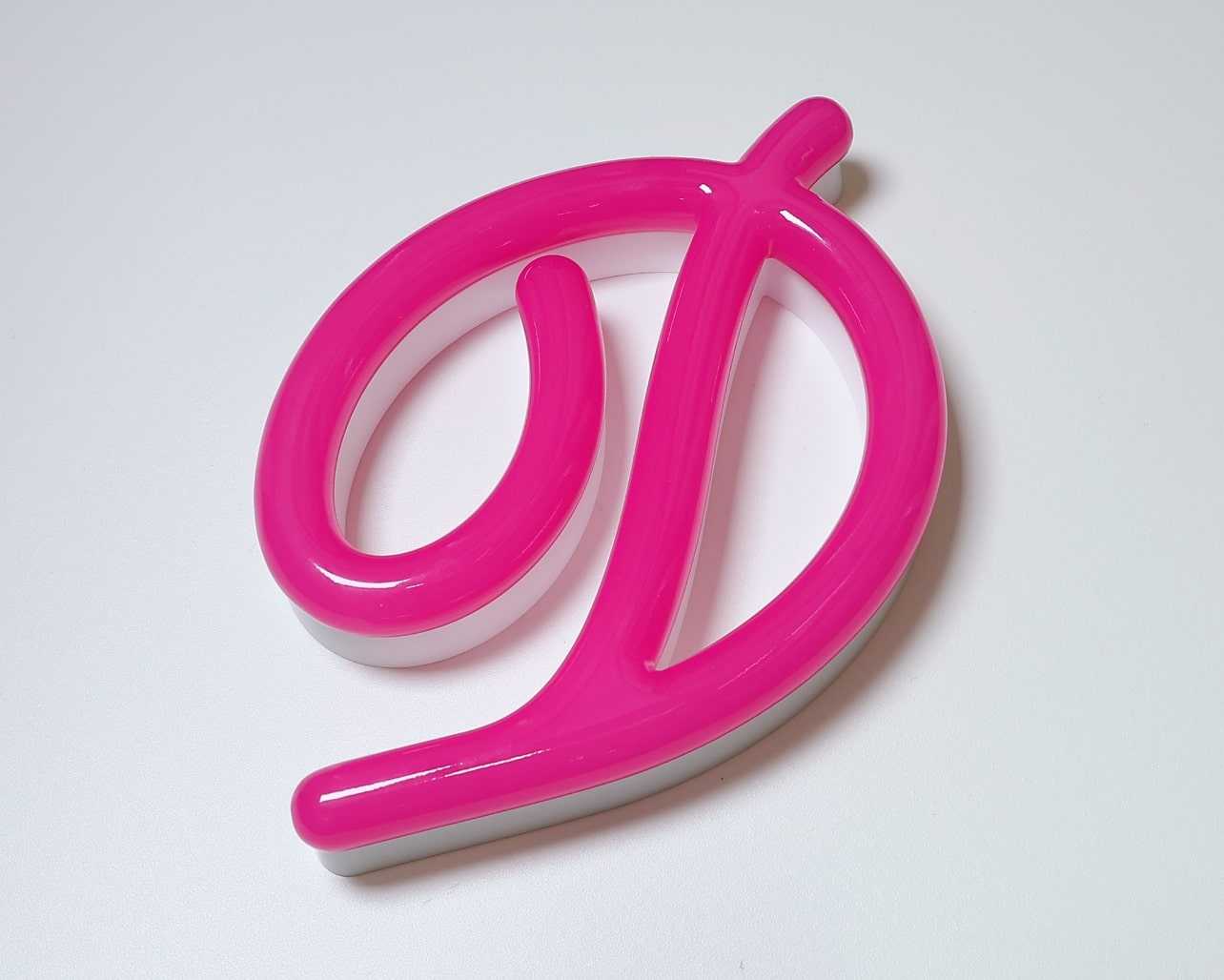

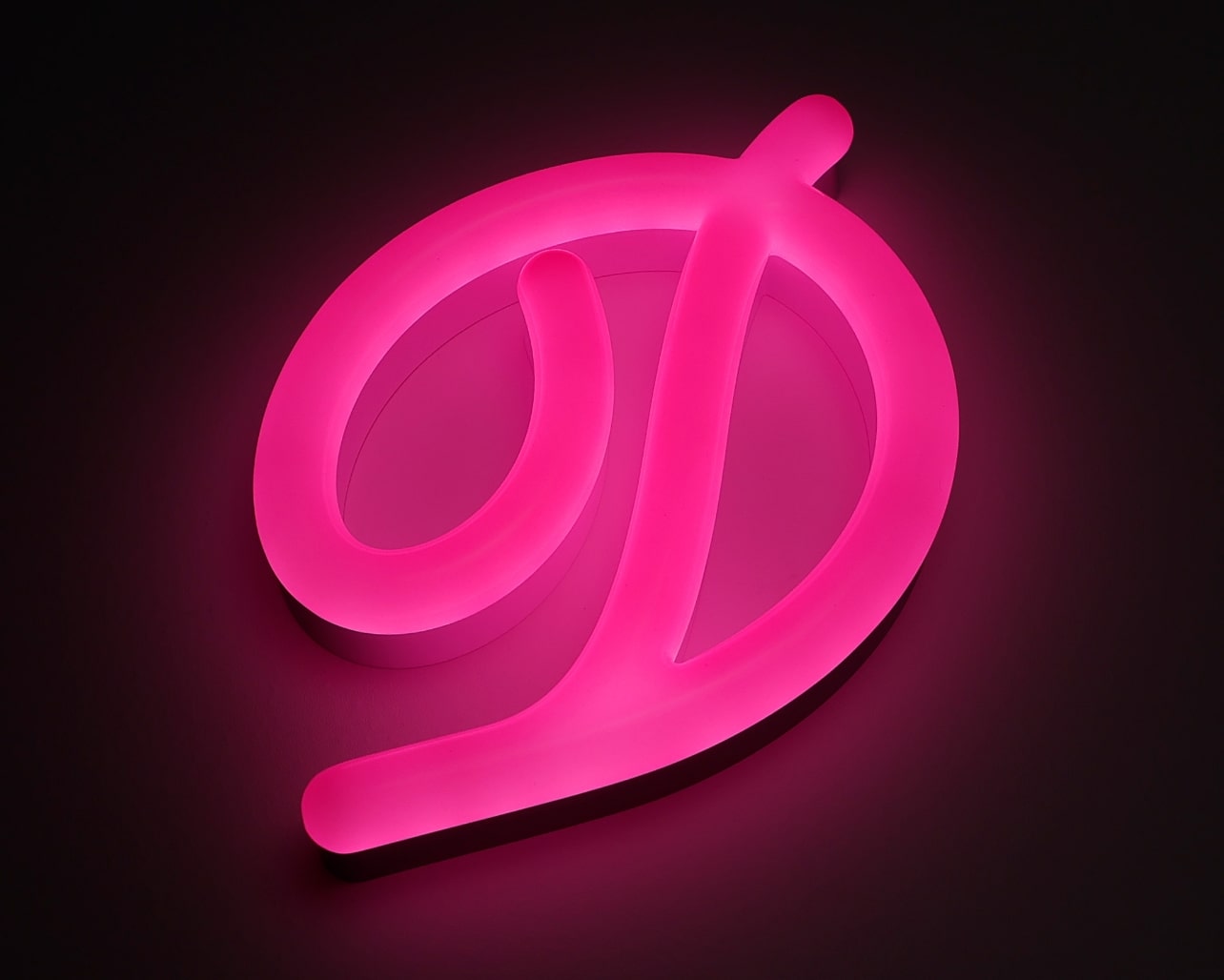

Lumi Letter TUBE-1 (With Back Panel)

Color Clear Coating Type

The neon’s vivid color and glossiness are enhanced by applying a color coating to the surface. For a more realistic neon effect, we recommend the clear color type.
*The 8mm dia. of NEON 1 is for indoor use only.

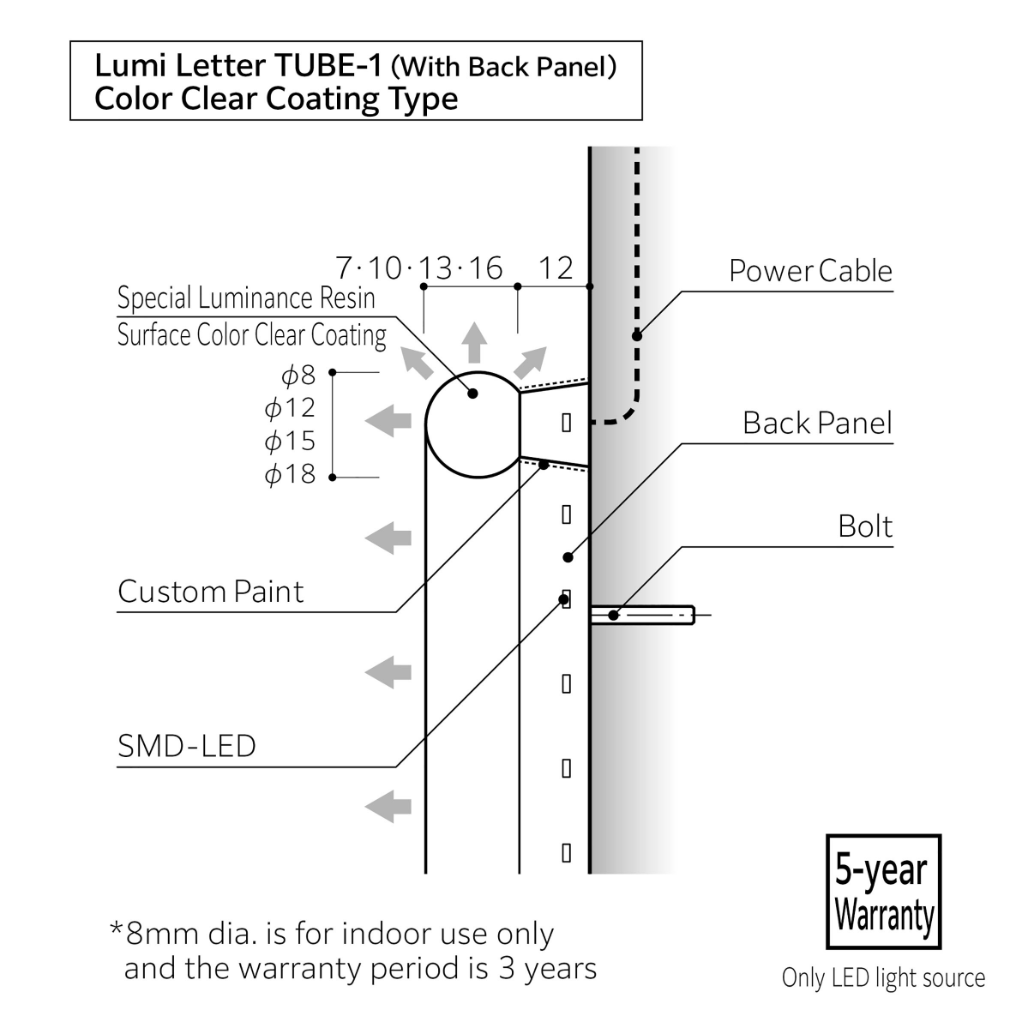

Body: Special Luminance Resin 15mm dia. Pink DK Back Panel: ABS Resin 12mm Thick White Painted Sides Light Source: SMD-LED — Body: Special Luminance Resin 15mm dia. Pink DK
Back Panel: ABS Resin 12mm Thick White Painted Sides
Light Source: SMD-LED

Showcase

Specification

Light Source	SMD-LED on Custom Designed Circuit Board
Material,Thickness	Special Luminance Resin 7,10,13,16mm Thick / ABS Resin 12mm Thick Custom Color Painted Sides
Size	Recommended: 100-450mm Available: 100-900mm
Type of Stroke Width	8,12,15,18mm dia.

Notes

*Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
*The designated AC/DC Power Supply to be used.
*Quick Release System is not available.
*This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

*See “Warranty Policy” before placing orders.
*Product specifications and appearance may be subject to change without notice due to the improvement.
*Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.

Color Variations
