Lumi Channel

Face Lit (Vis-non)

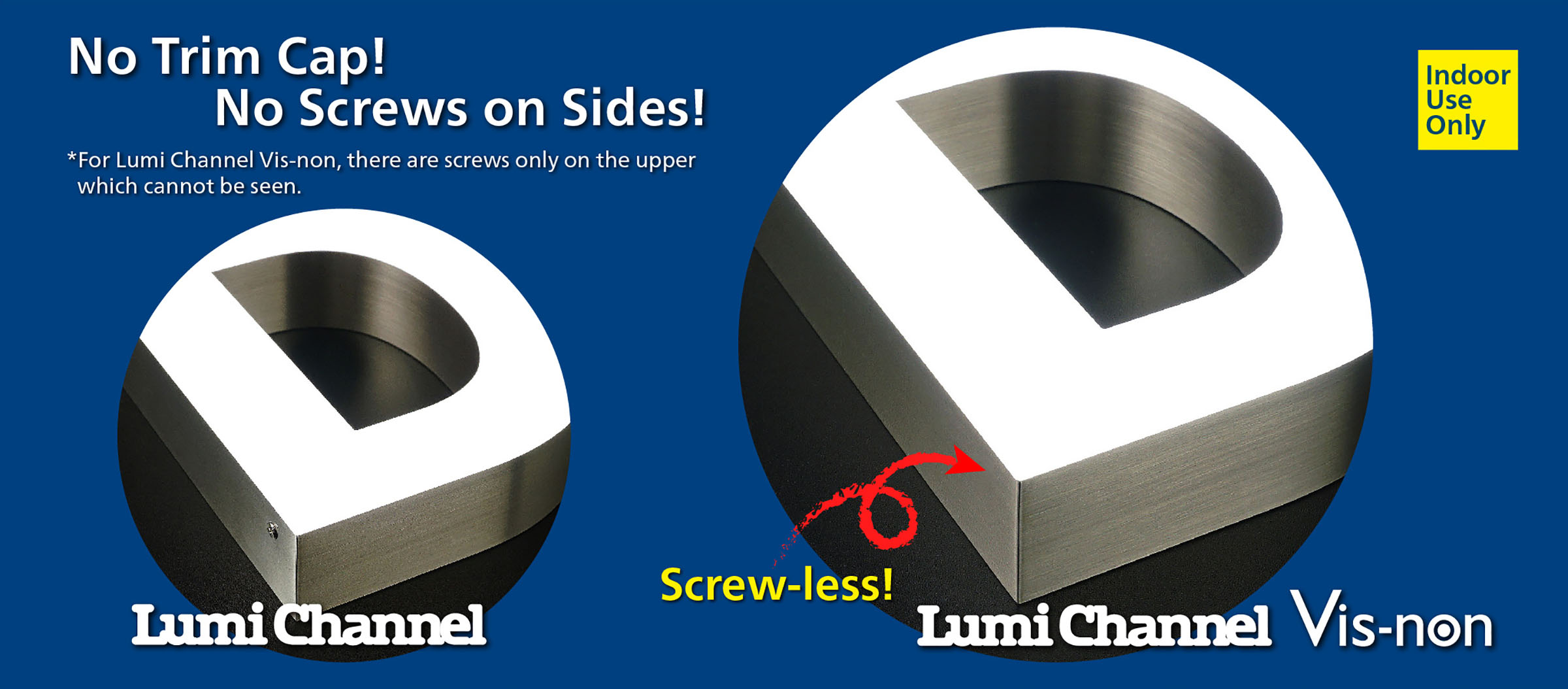

With this new technique, we succeeded in making LED metal channel letter without side screws, which were previously required to fix the acrylic face. With Vis-non, there are no more side screws to spoil the look when viewing from below!

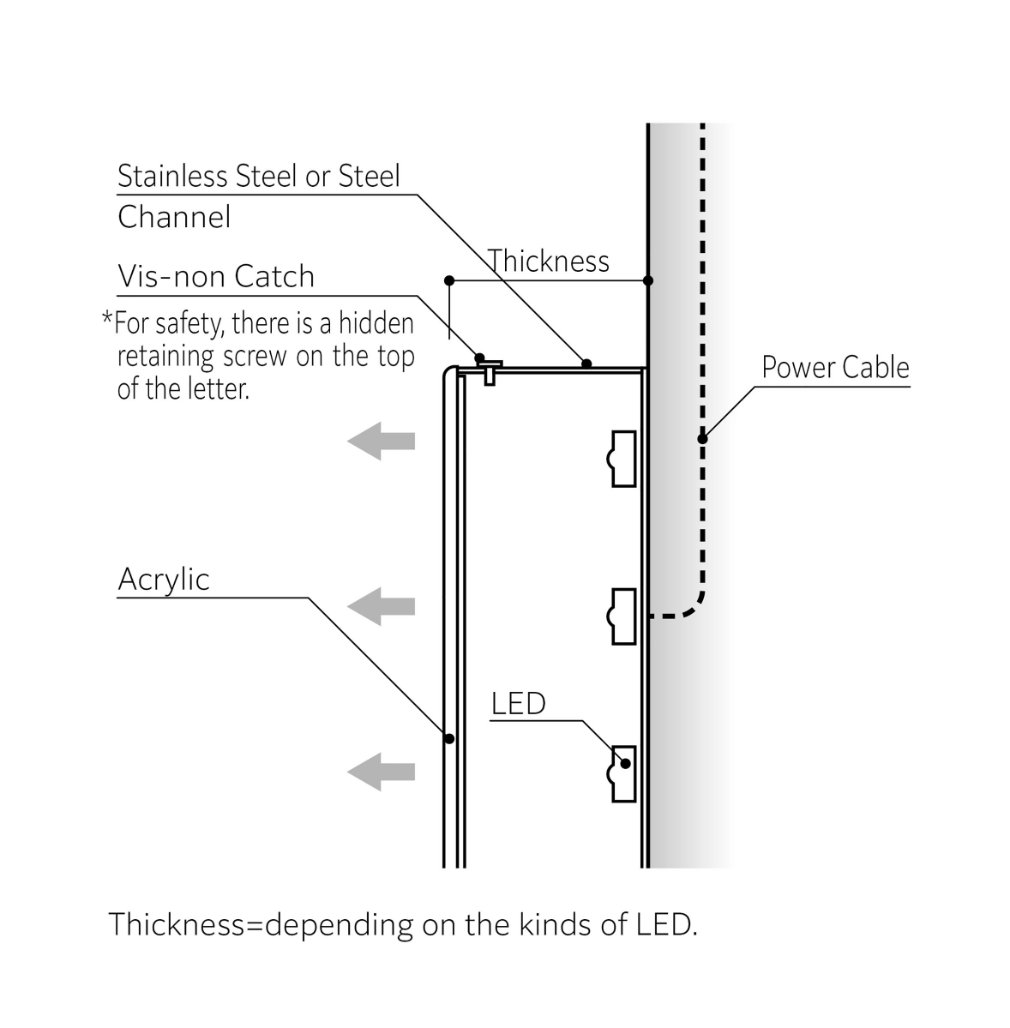

*For safety, there is a hidden retaining screw on the top of the letter.

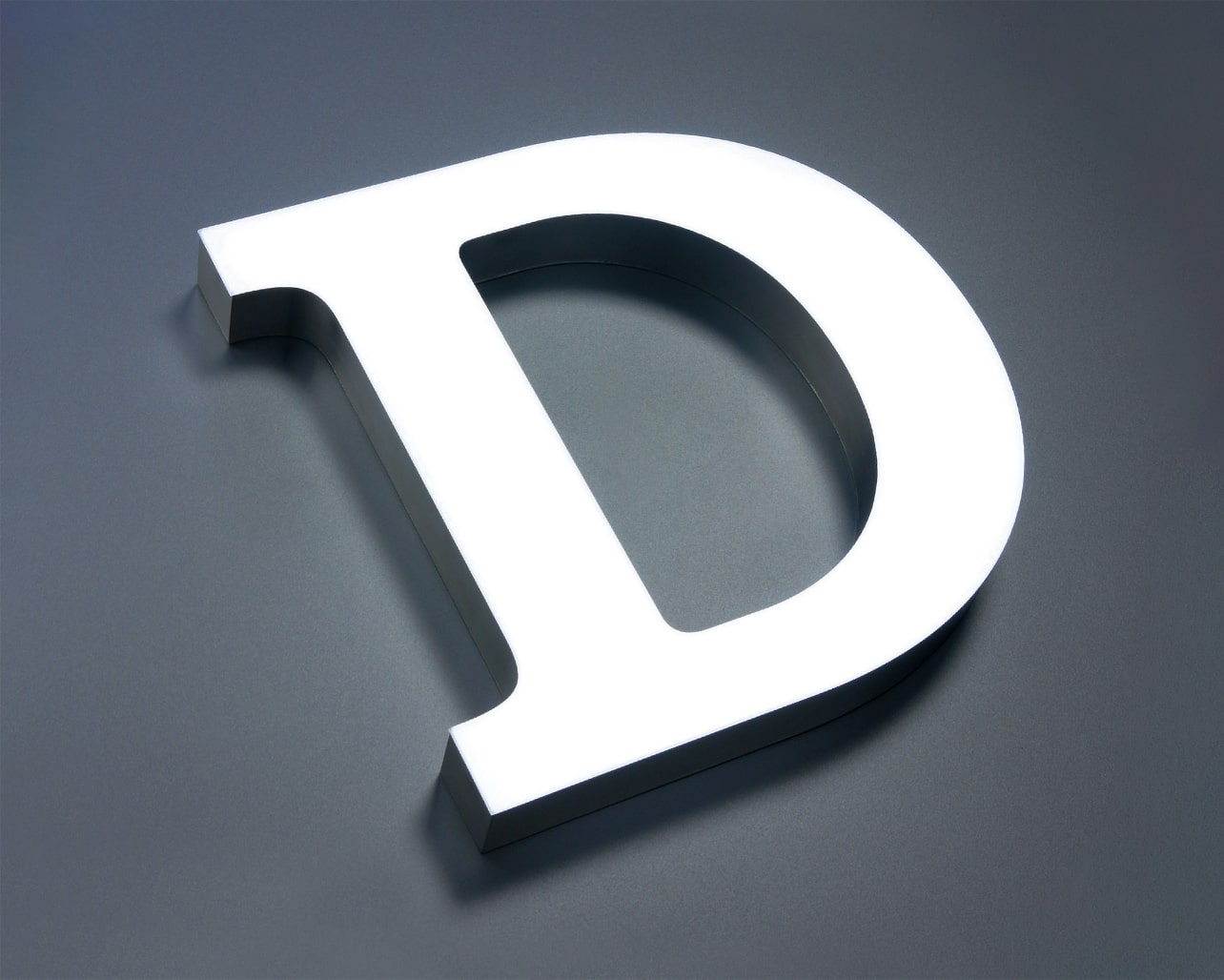

Surface: Opal Acrylic Round Edge Body: Stainless Steel Channel Brushed Finish Light Source: Custom Unit Natural White — Surface: Opal Acrylic Round Edge
Body: Stainless Steel Channel Brushed Finish
Light Source: Custom Unit Natural White

Showcase

Specification

Light Source	LED Module / LED Custom Unit
Material	Acrylic / Stainless Steel or Steel Channel *Steel is indoor use only.
Size	Recommended: 250-400mm Available: 200-450mm
Thickness	LED Module: 70mm～ \| LED Custom Unit: 40mm～
Minimum Stroke Width	LED Module: 20mm～ \| LED Custom Unit: 15mm～

Notes

*The drain hole with 8mm dia. is needed at the bottom of signage in the case of being installed outdoor locations.
*The designated AC/DC Power Supply to be used.
*Minimum letter height, minimum letter thickness and minimum stroke width vary depending on the light source. For details, please refer to our sales representatives.
*This product can be manufactured in accordance with “UL standard” or “CE mark” upon request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

*See “Warranty Policy” before placing orders.
*Film and inkjet parts are not covered under the warranty.
*Product specification and appearance may be subject to change without notice due to product improvement.
*Some letters cannot be manufactured depending on the font type. Please send us your logo artwork in Adobe Illustrator format, and we will provide an accurate quotation.

Screw-less Lumi Channel Vis-non!

Swipe left or right to view.

Color Variations

For the Light Source of LED Channel Letter
LED Custom Unit(Recommended Size: middle)

Incorporating the One-off Custom Designed Circuit Board into our Channel Letter. It is suitable for the logos with narrow strokes or a thin body. We’ve put together an abundance of LED color variations.
Face Lit | Thickness 40mm～
Back Lit | Thickness 25mm～

Cool White
6100K (6400K-5800K)
Natural White
5200K (5500K-4900K)
Vanilla white
4700K (4900K-4500K)
Ivory white
3900K (4100K-3600K)
Warm White
3400K (3600K-3100K)
Lamp Color
3000K (3200K-2800K)
Antique lamp *
2700K (2900K-2600K)
Candle Color *
2200K (2300K-2100K)
Blue
Sky Blue *
Green
Yallow *
Amber
Red
Purple *
Pink *

*Please note that Antique Lamp,Candle Color,Sky Blue,Yellow,Purple,Pink are indoor use only.

*The color temperature (Kelvin "K") values provided above are for reference only and do not represent guaranteed values (tolerance range).

*The actual colors may slightly differ from images above.

For the Light Source of LED Channel Letter
LED Module(Recommended Size: middle-large)

For high quality assurance, we select high quality and reliable LED modules that checked against the inspection standards of our in-house quality assurance body. LED modules are selected in accordance with the installation environment and lettering sizes. LEDs come in three hues of white, red, blue, and green.
Face Lit | Thickness 70mm～
Back Lit | Thickness 50mm～
