LED Metal Channel RETRO
LED Metal Channel RETRO (Filament LED Type)
Filament LED bulb type has been added to LED Metal Channel RETRO. The bulb comes in three sizes, 30, 40 and 50mm diameter. With refined 2100K luminance, it creates a nostalgic atmosphere.
Light Source: LED Filament 30mm dia. Clear Type

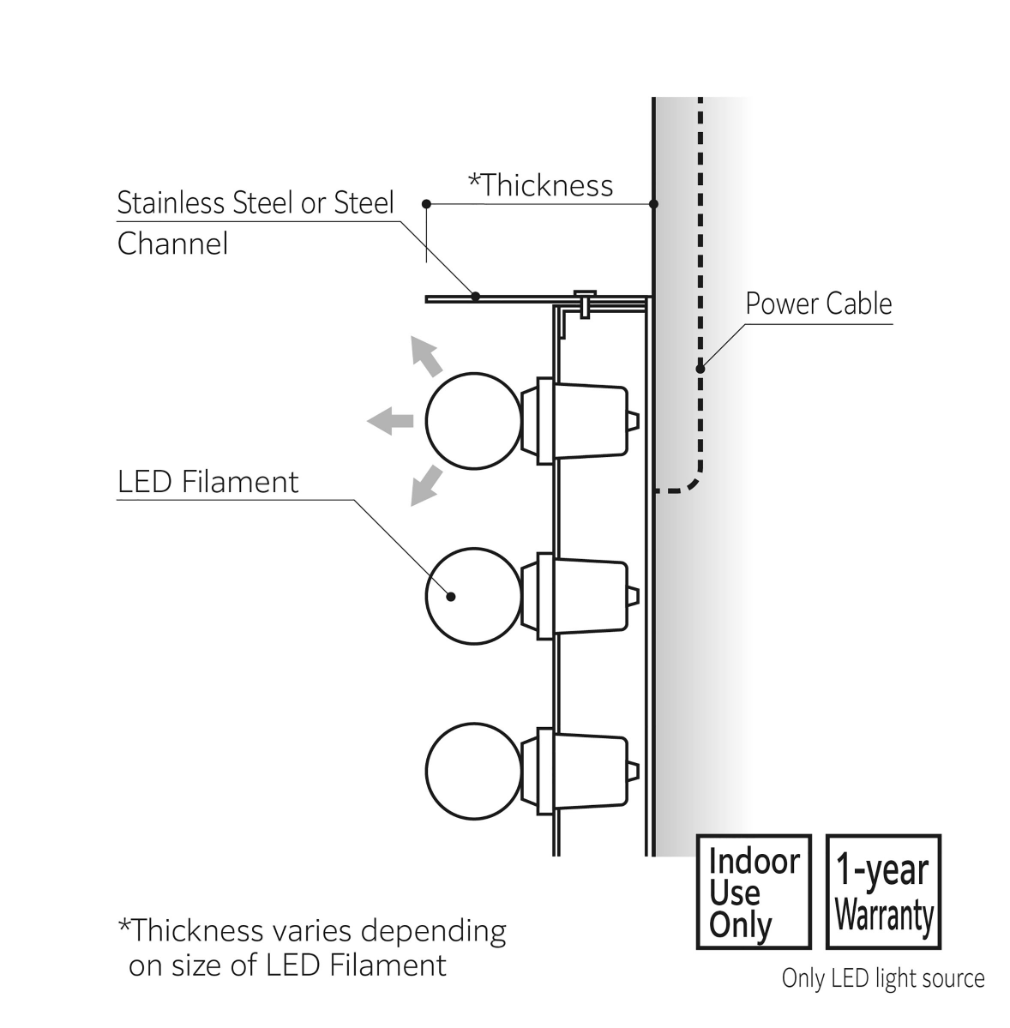

Specification
| Light Source | Light Source LED Filament (100V 50/60Hz) *100V only |
|---|---|
| Material,Thickness | Stainless Steel or Steel Channel *Steel is for indoor use only |
| Size | Recommended: 200-500mm Available: 150-600mm |
| Retro Bulb | 30, 40, 50mm dia. (Base Size 17mm) |
| Minimum Stroke | 40mm (for LED Filament 30mm dia.) |
Notes
- *Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
- *Minimum letter height, thickness and stroke width vary by the size of LED Filament. Please contact us for details.
Precautions
- *See “Warranty Policy” before placing orders.
- *Product specifications and appearance may be subject to change without notice due to the improvement.
- *Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.

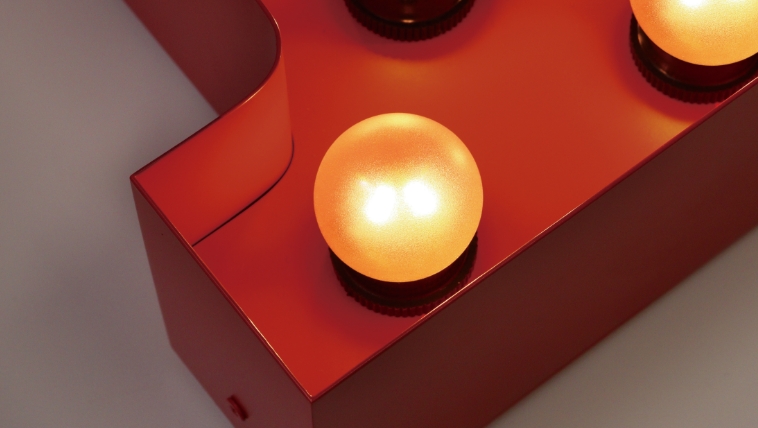

LED Filament Size Variation
-
Light Off 30mm dia. × 50 -
Light Off 40mm dia. × 62 -
Light Off 50mm dia. × 72 -
Light On 30mm dia. × 50 -
Light On 40mm dia. × 62 -
Light On 50mm dia. × 72
LED Filament Surface Finish
-
Clear Type -
Matte Type
