RETRO Series
Lumi Letter RETRO
We just released a midget-lamp-sized bulb-type LED sign. The diameter of the bulb is 10mm and 20mm, and the production is available from letter height 80mm. It is highly recommended for small signs that are installed at eye level!
Light Source: SMD-LED Lamp Color
Retro Bulb: 10mm dia. Clear Type
Specification
| Light Source | SMD-LED on Custom Designed Circuit Board |
|---|---|
| Material,Thickness | Taff Lite or D-Letter 15, 20mm Thick / Acrylic (Retro Bulb) |
| Size | Recommended: 100-300mm Available: 60-400mm |
| Retro Bulb | 10, 20mm dia. |

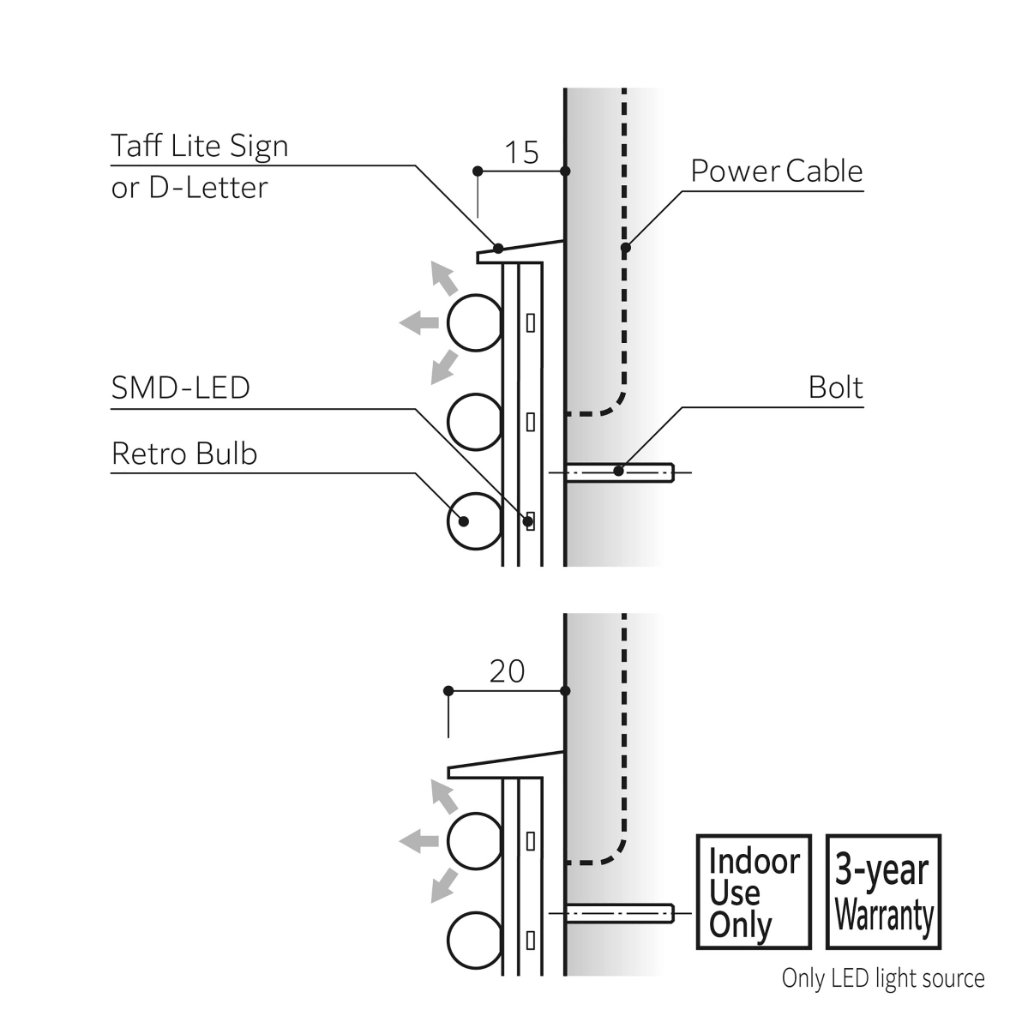

| Minimum Stroke | At Bottom: 17mm (For Retro Bulb 10mm dia. w/ Letter Thickness 15mm) |
Notes
- *Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
- *The designated AC/DC Power Supply to be used.
- *For a Quick Release System, please refer to this.
- *Maximum size of Taff Lite Sign varies with plating type.
- *Minimum letter height, thickness and stroke width vary by the size of Retro Bulb. Please contact us for details.
- *This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.
Precautions
- *See “Warranty Policy” before placing orders.
- *Product specification and appearance may be subject to change without notice due to product improvement.
- *Some letters cannot be manufactured depending on the font type. Please send us your logo data in Adobe Illustrator format, and we will provide an accurate quotation.

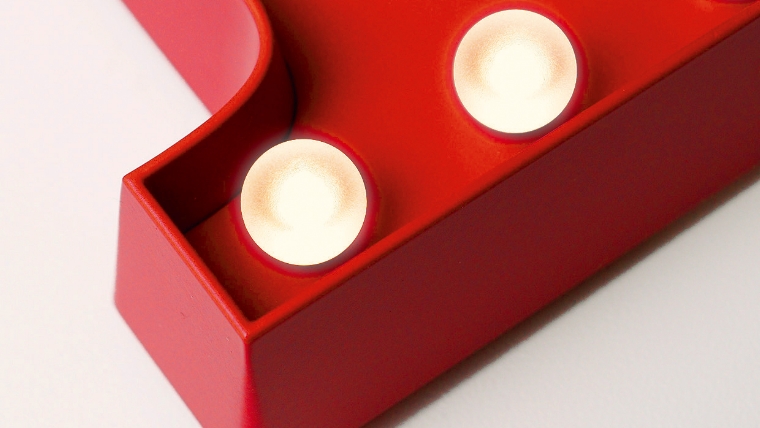

LED Color
-
White (5300K) -
Lamp Color (2700K)
*The actual colors may slightly differ from the images pictured above.

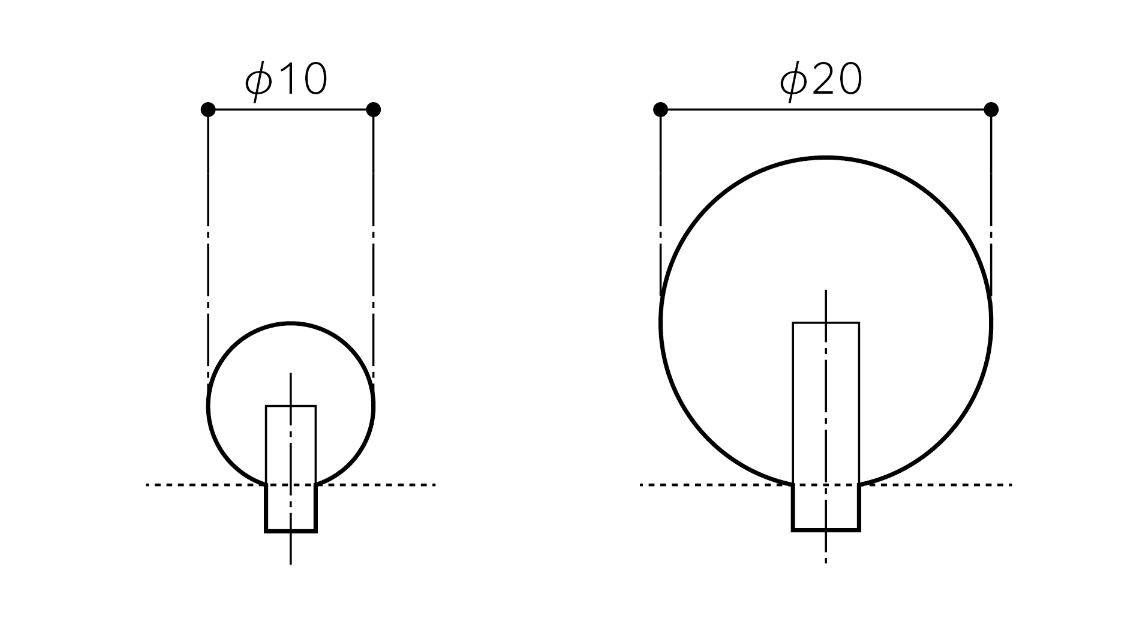

Retro-Bulb Size Variation

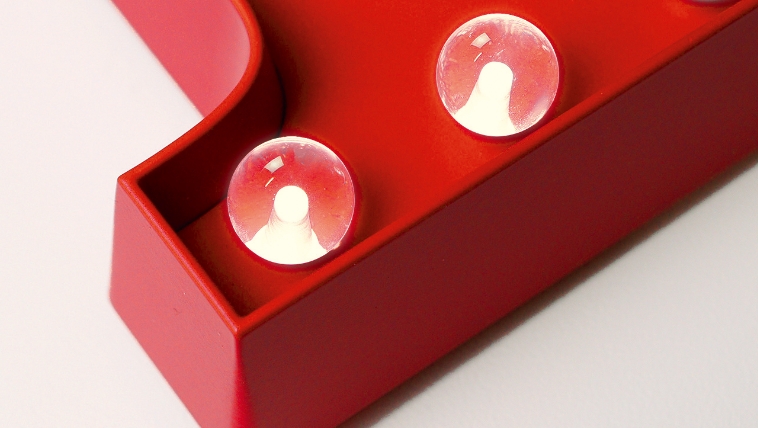

Retro-Bulb Surface Finish
-
Clear Type -
Matte Type
