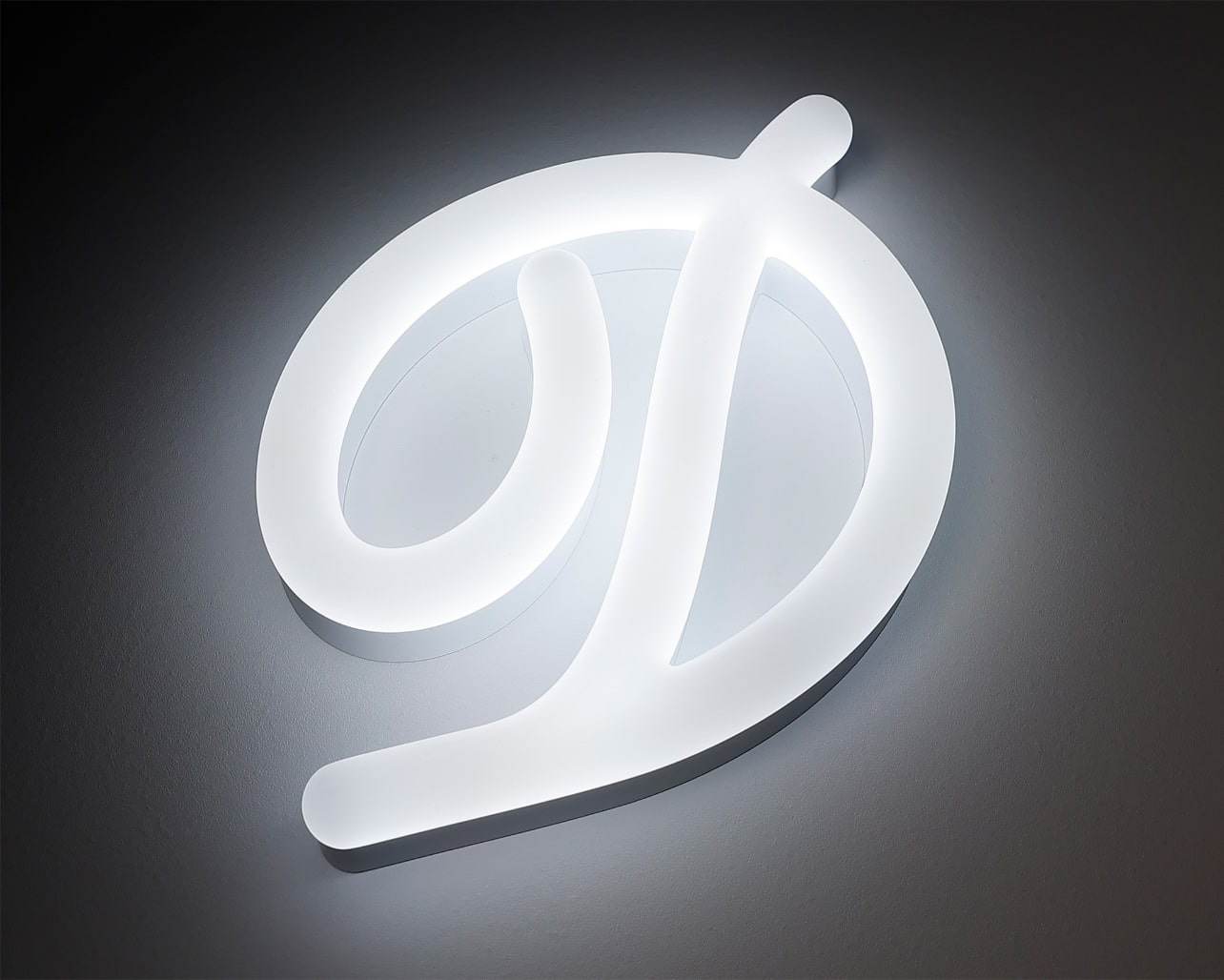

Lumi Letter TUBE-1 (With Back Panel)
Standard Type
The original product is NEON 1. It is available in four sizes: 8mm, 12mm, 15mm, and 18mm. This is the classic Lumi Letter NEON option with a variety of sizes to suit your needs.
*The 8mm dia. of NEON 1 is for indoor use only.

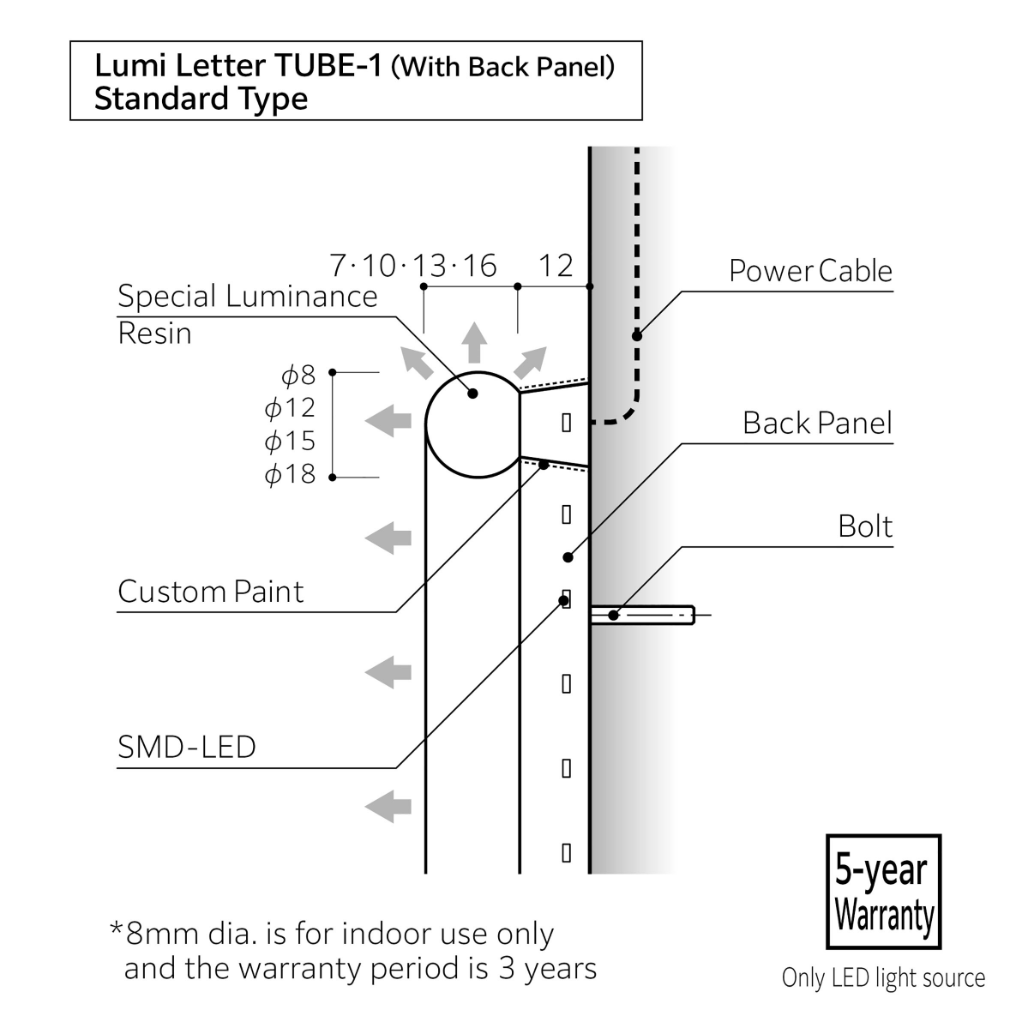

Back Panel: ABS Resin 12mm Thick White Painted Sides
Light Source: SMD-LED Natural White
Specification
| Light Source | SMD-LED on Custom Designed Circuit Board |
|---|---|
| Material,Thickness | Special Luminance Resin 7,10,13,16mm Thick / ABS Resin 12mm Thick Custom Color Painted Sides |
| Size | Recommended: 100-450mm Available: 100-900mm |
| Type of Stroke Width | 8,12,15,18mm dia. |
Notes
- *Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
- *The designated AC/DC Power Supply to be used.
- *Quick Release System is not available.
- *This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.
Precautions
- *See “Warranty Policy” before placing orders.
- *Product specifications and appearance may be subject to change without notice due to the improvement.
- *Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.
Color Variations
Color Variations
LED Color Variation
-
Cool White -
Natural White -
Vanilla White -
Ivory White -
Warm White -
Lamp Color -
Antique Lamp * -
Candle Color * -
Blue -
Sky Blue * -
Green -
Yellow * -
Amber -
Red -
Purple * -
Pink * -
Light Off
*Please note that Antique Lamp,Candle Color,Sky Blue,Yellow,Purple,Pink are indoor use only.

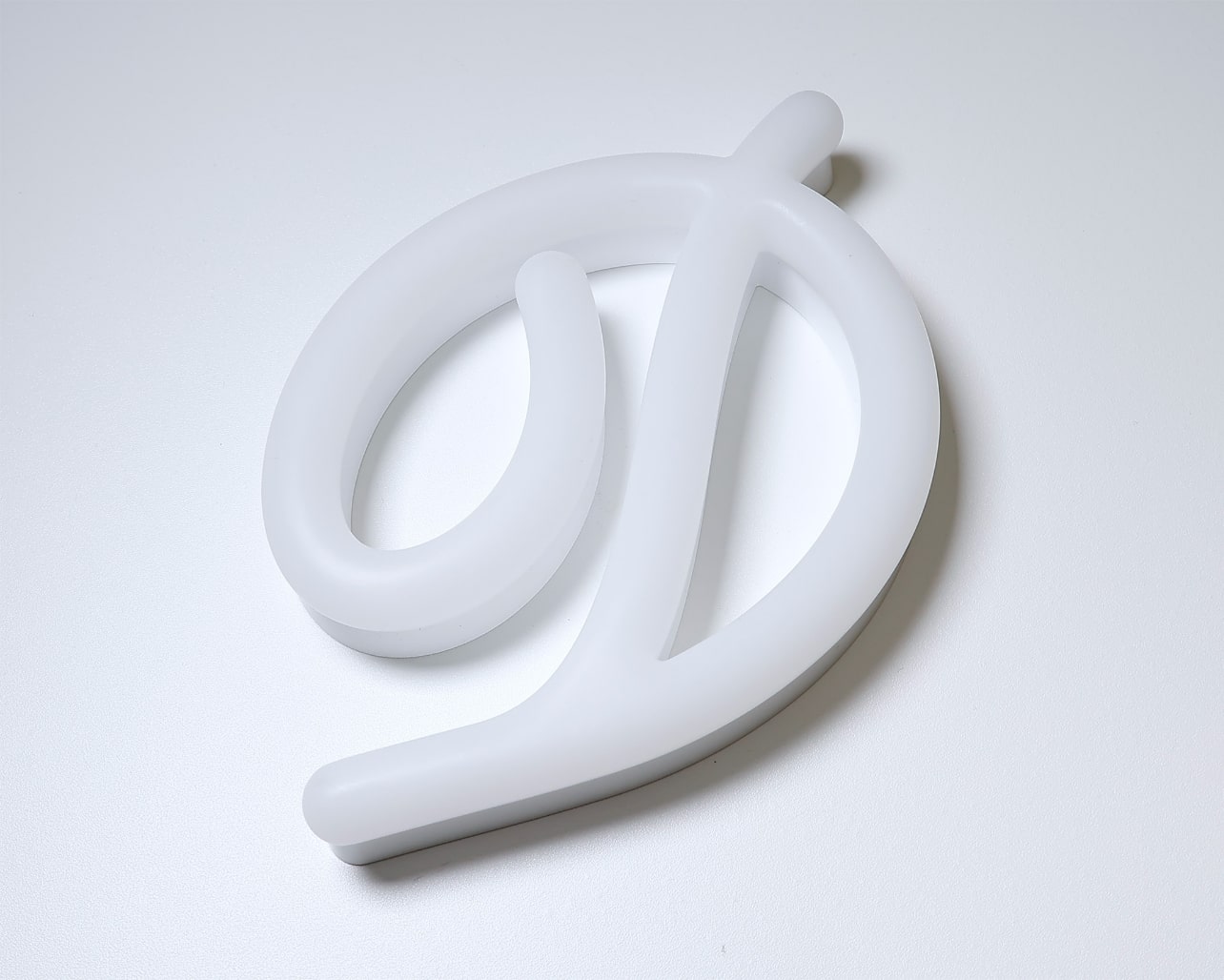

*The color of the sign is opal when the light is off.
*The actual colors may slightly differ from images above.
CONTACT
■Contact us by phone
Global Sales Group (Headquarters)+81-6-6626-9680
DAIKAN HONG KONG LIMITED+852-3618-8360
About Artwork Conversion
Please note that your provided logo artwork will be converted into a special artwork for production.
-
Original Logo Artwork
There are a variety of features such as variable width strokes or calligraphic design.
-
Creating Paths
Not just tracing the center lines but we keep the original logo features when creating the special artwork.
-
Decide the Stroke Width
We will propose the most suitable stroke width based on the signage size and generate the special artwork for production. Once you approve it, we will start the production.
Features of Converted Logo Artwork
-
Logo’s stroke width becomes even.
-
Round inner corner becomes sharp.
-
End of line becomes round.
About Processing and Division Features
-
Even a small dot can be produced by connecting the back panel of Lumi Letter TUBE-1
Connecting of back panel is not available for Lumi Letter TUBE-2,3
-
Divided with a round edge
-
Divided with a straight edge
Dividing back panel is not available for Lumi Letter TUBE-1
