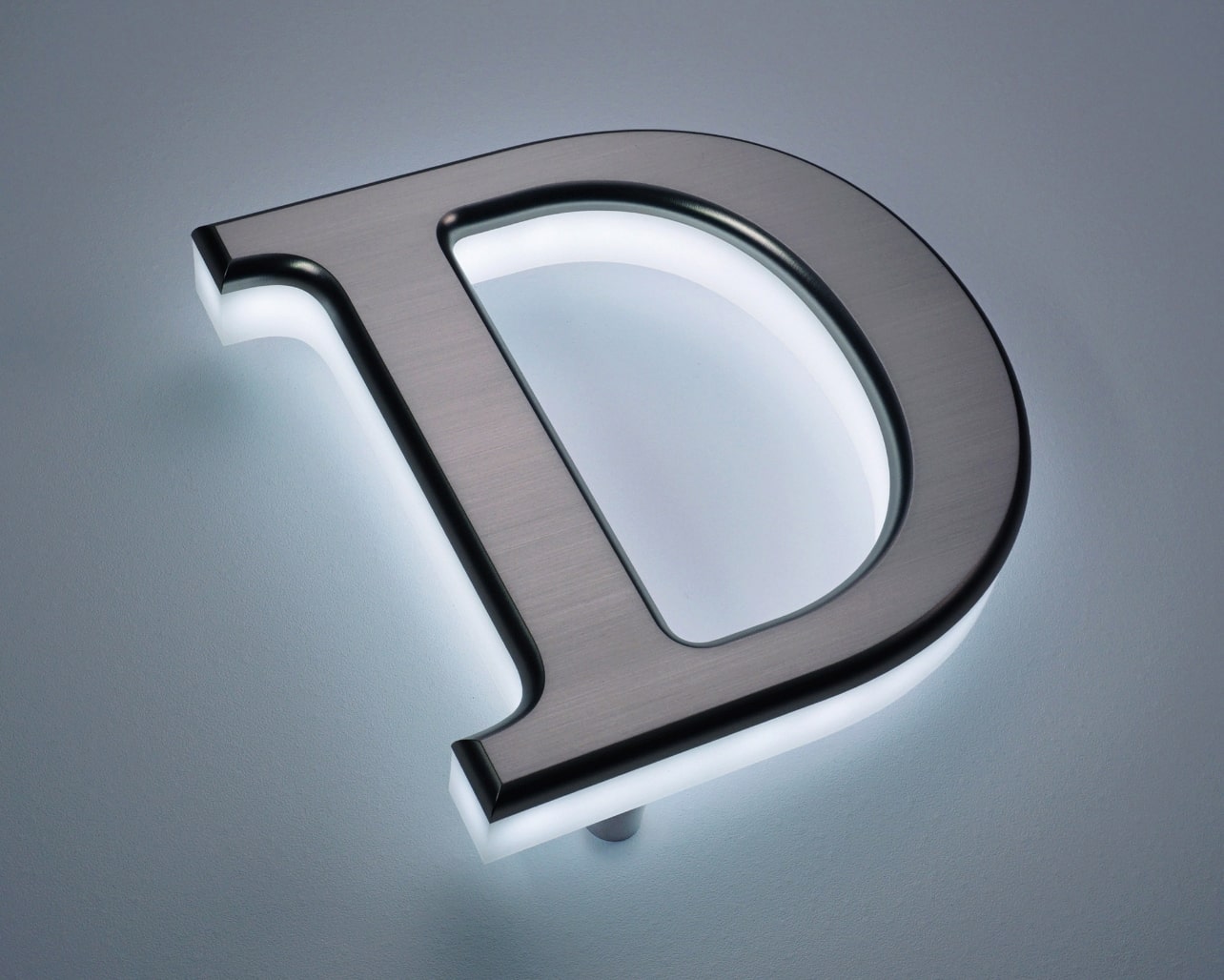

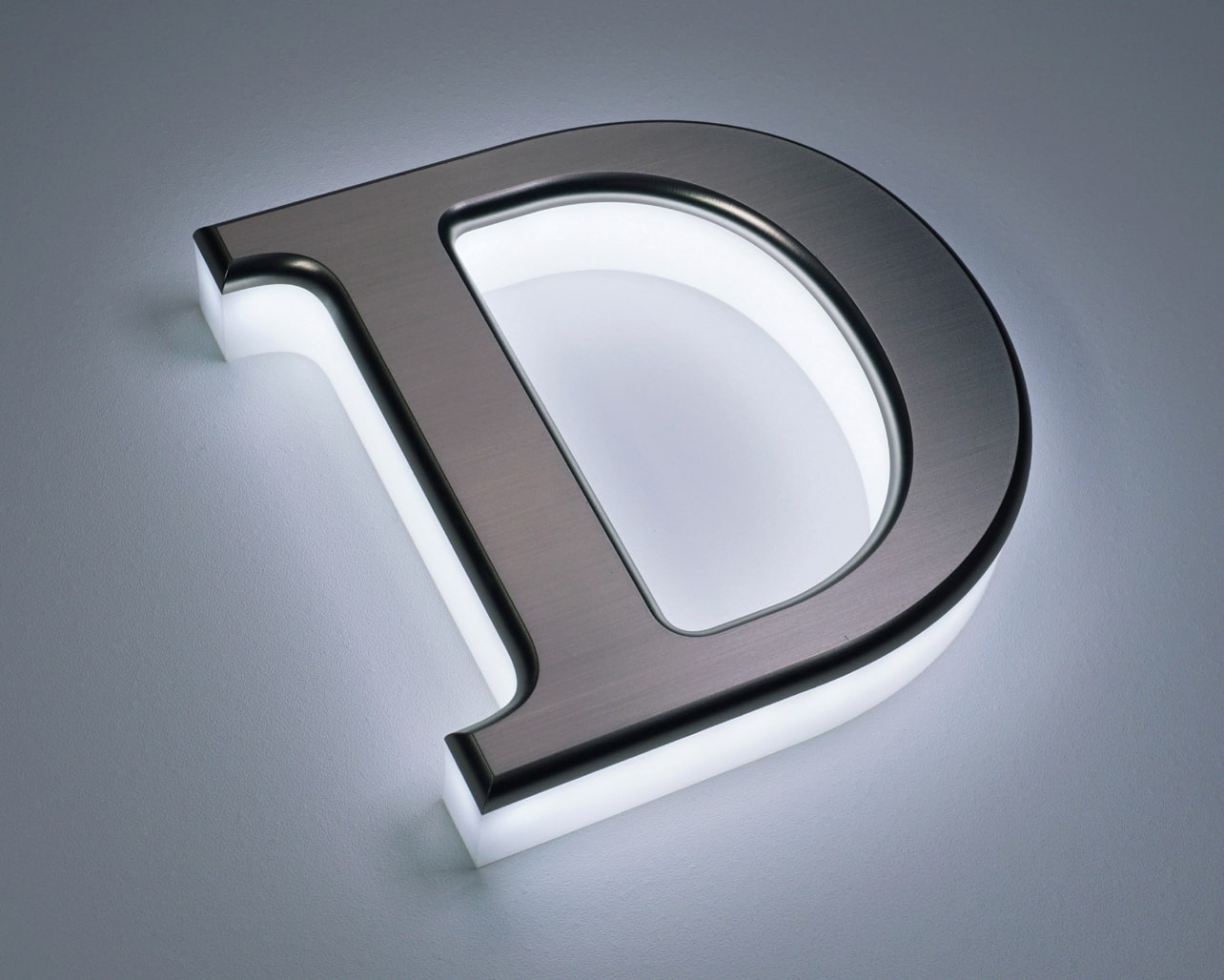

Lumi Letter

Side and Back Lit

Designed in combination with Taff Lite Sign and D-Letter, this superior quality sign creates vivid visual image. Even brighter backlight effect is achieved with off-wall installation.

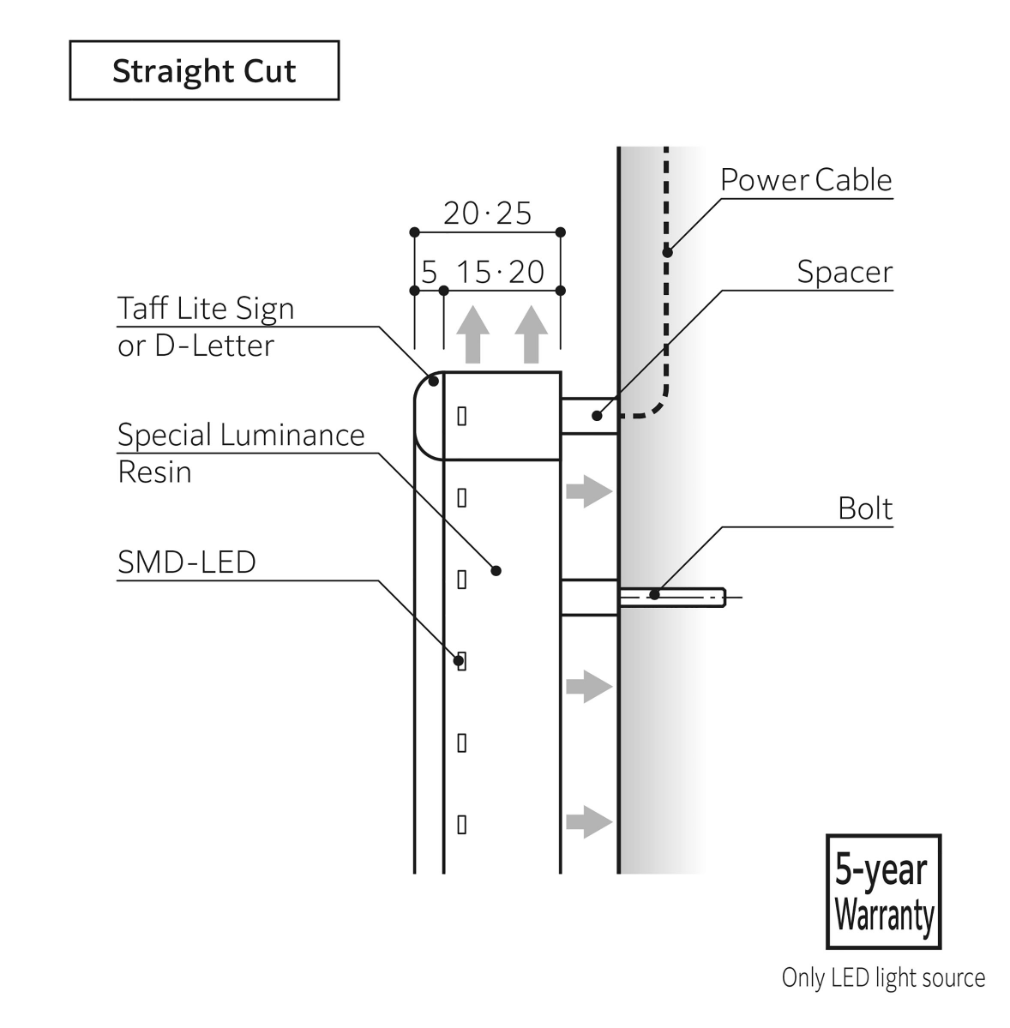

Surface: Taff Lite 5mm Thick /R-direct Cut Brushed Nickel Body: Special Luminance Resin 15mm Thick / Straight Cut Light Source: SMD LED Natural White — Surface: Taff Lite 5mm Thick /R-direct Cut Brushed Nickel
Body: Special Luminance Resin 15mm Thick / Straight Cut
Light Source: SMD LED Natural White

Showcase

Specification

Light Source	SMD-LED on Custom Designed Circuit Board
Material,Thickness	Taff Lite or D-Letter 5mm Thick (Recommended) / Special Luminance Resin 15,20mm Thick
Size	Recommended: 100-450mm Available: 100-900mm *As for Taff Lite, the largest size varies by its finishing
Minimum Stroke Width	Recommended: 24mm Available: 8mm *Light spots will be visible

Notes

*Light spots may be visible if the stroke width is less than recommended.
*Please note that light spots may be reflected depending on the wall surface.
*Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
*The designated AC/DC Power Supply to be used.
*This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

*See “Warranty Policy” before placing orders.
*Product specifications and appearance may be subject to change without notice due to the improvement.
*Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.

Color Variations

LED Color Variation

Expanded number of neutral finishes from 5 to 8, and color finishes from 4 up to 8, bringing the total to 16 colors with 7 new additions. Our key focus is on lamp color temperatures that create an antique ambience and luminance.
