Lumi Letter

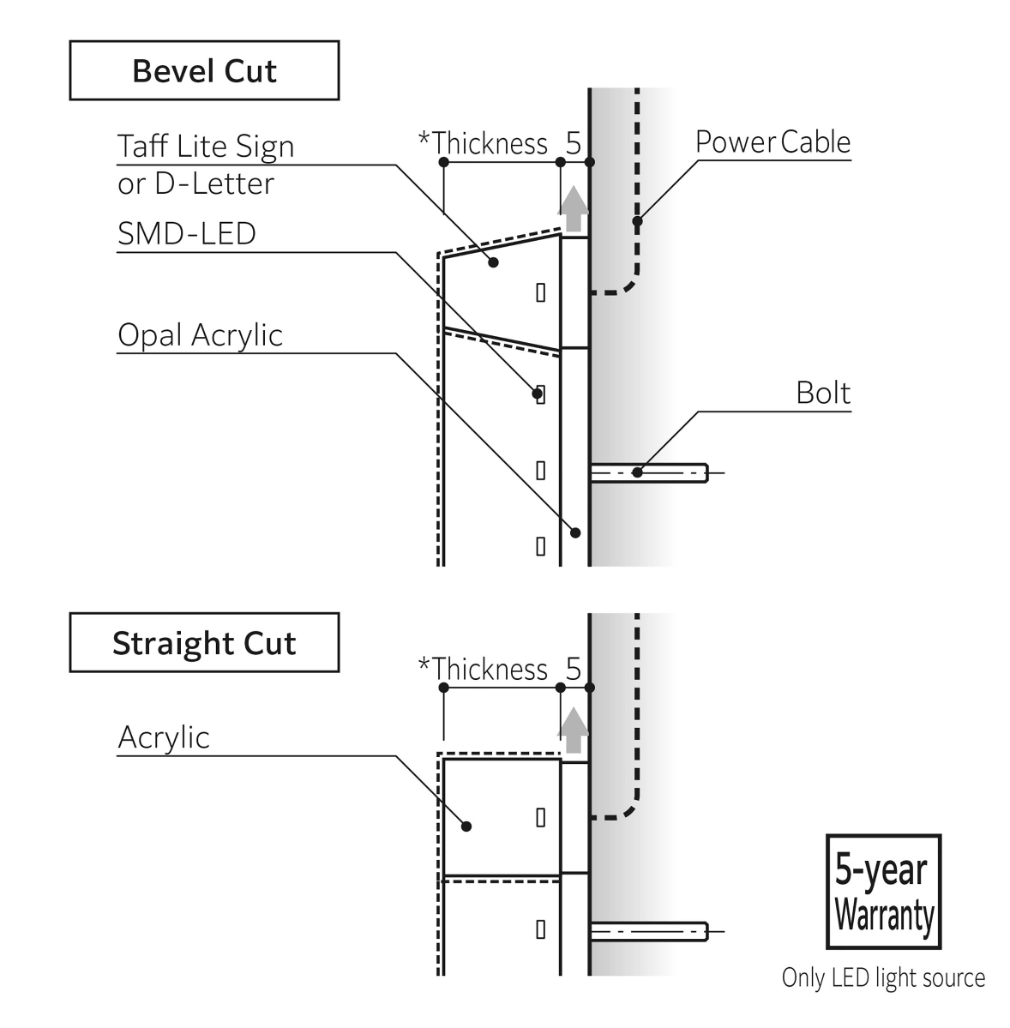

Partial Side Lit (Bevel Cut / Straight Cut)

With the slim outline of the side lit back plate, it creates fine backlight effect even without off-wall installation, which can effectively avoid reflected LED spots on glossy wall surfaces.

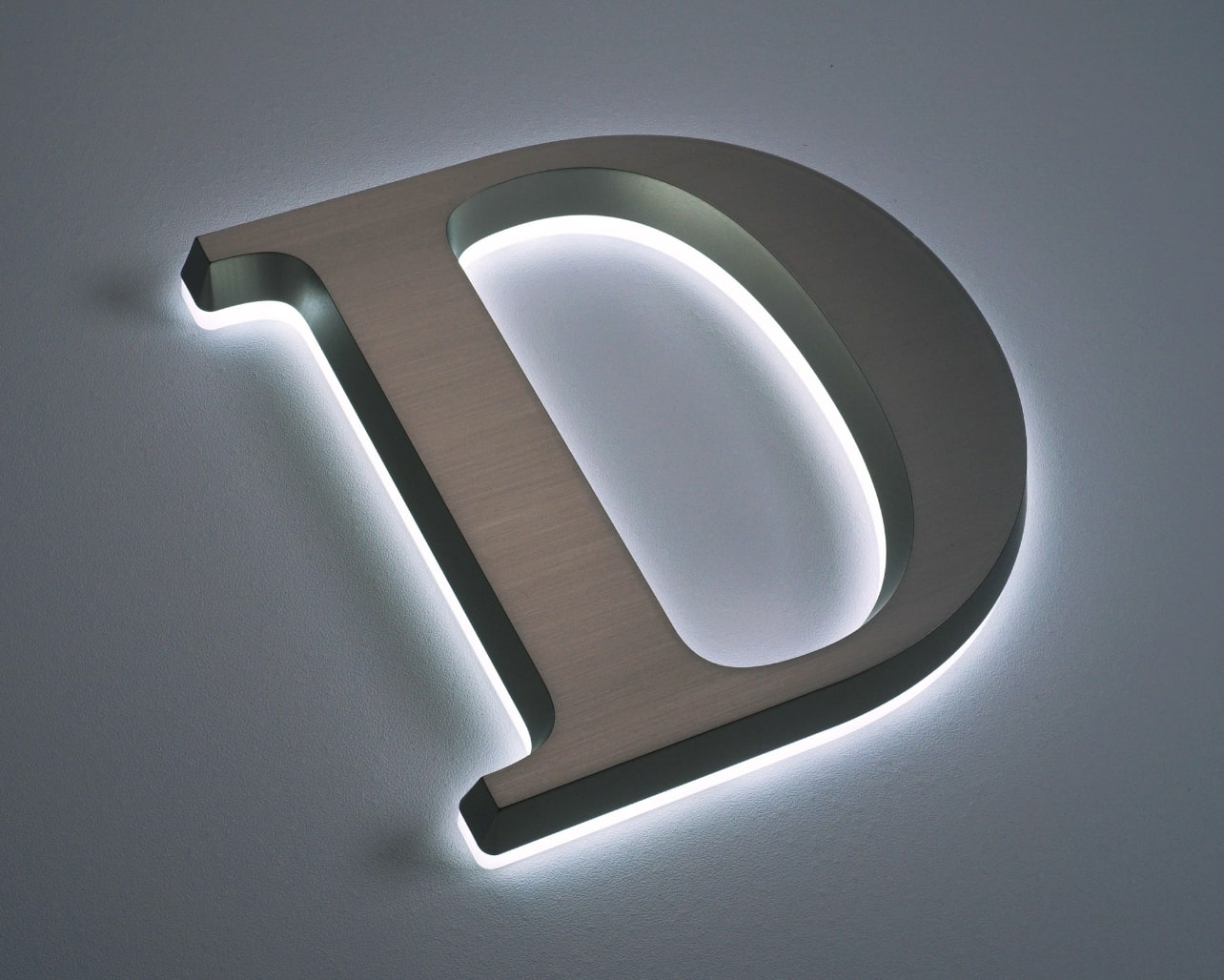

Surface: Taff Lite 10mm Thick / Bevel Cut Brushed Nickel Back Panel: Opal Acrylic 5mm Thick Light Source: SMD-LED Natural White — Surface: Taff Lite 10mm Thick / Bevel Cut Brushed Nickel
Back Panel: Opal Acrylic 5mm Thick
Light Source: SMD-LED Natural White

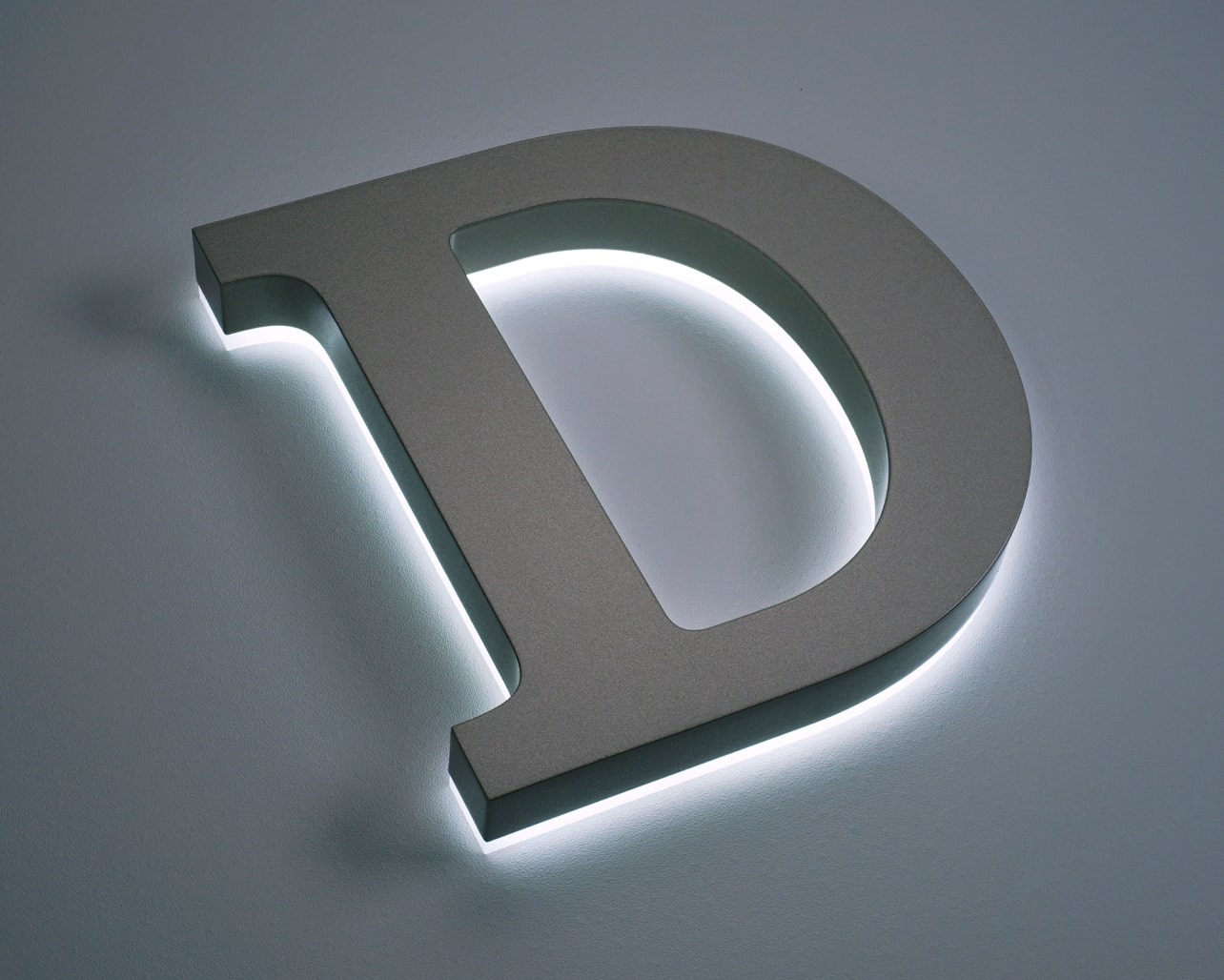

Surface: Acrylic 15mm Thick / Straight Cut Gloss Nickel Paint Back Panel: Opal Acrylic 5mm Thick Light Source: SMD-LED Natural White — Surface: Acrylic 15mm Thick / Straight Cut Gloss Nickel Paint
Back Panel: Opal Acrylic 5mm Thick
Light Source: SMD-LED Natural White

Showcase

Specification

Light Source	SMD-LED on Custom Designed Circuit Board
Material,Thickness	Taff Lite, D-Letter, or Acrylic 8,10,15,20mm Thick / Opal Acrylic 5mm Thick
Size	Bevel Cut Recommended: 70-300mm Available: 70-900mm *As for Taff Lite, the largest size varies by its finishing
Size	Straight Cut Recommended: 100-300mm Available: 100-900mm
Minimum Stroke Width	Bevel Cut: 1mm *It varies depending on thickness and cutting method
Minimum Stroke Width	Straight Cut: 8mm

Notes

*Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
*The designated AC/DC Power Supply to be used.
*For a Quick Release System, please refer to this.
*This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

*See “Warranty Policy” before placing orders.
*Product specifications and appearance may be subject to change without notice due to the improvement.
*Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.

Color Variations

LED Color Variation

Expanded number of neutral finishes from 5 to 8, and color finishes from 4 up to 8, bringing the total to 16 colors with 7 new additions. Our key focus is on lamp color temperatures that create an antique ambience and luminance.
