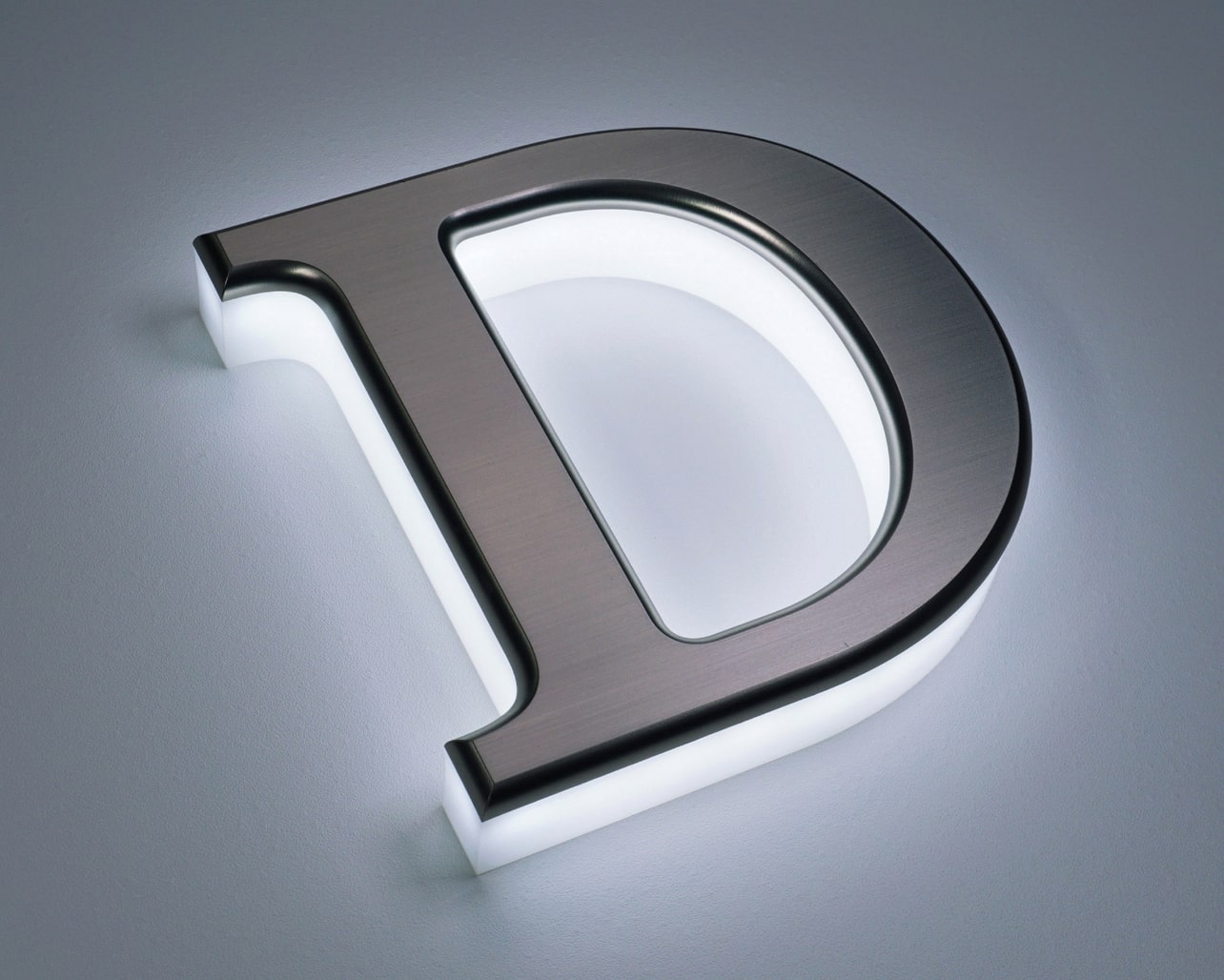

Lumi Letter

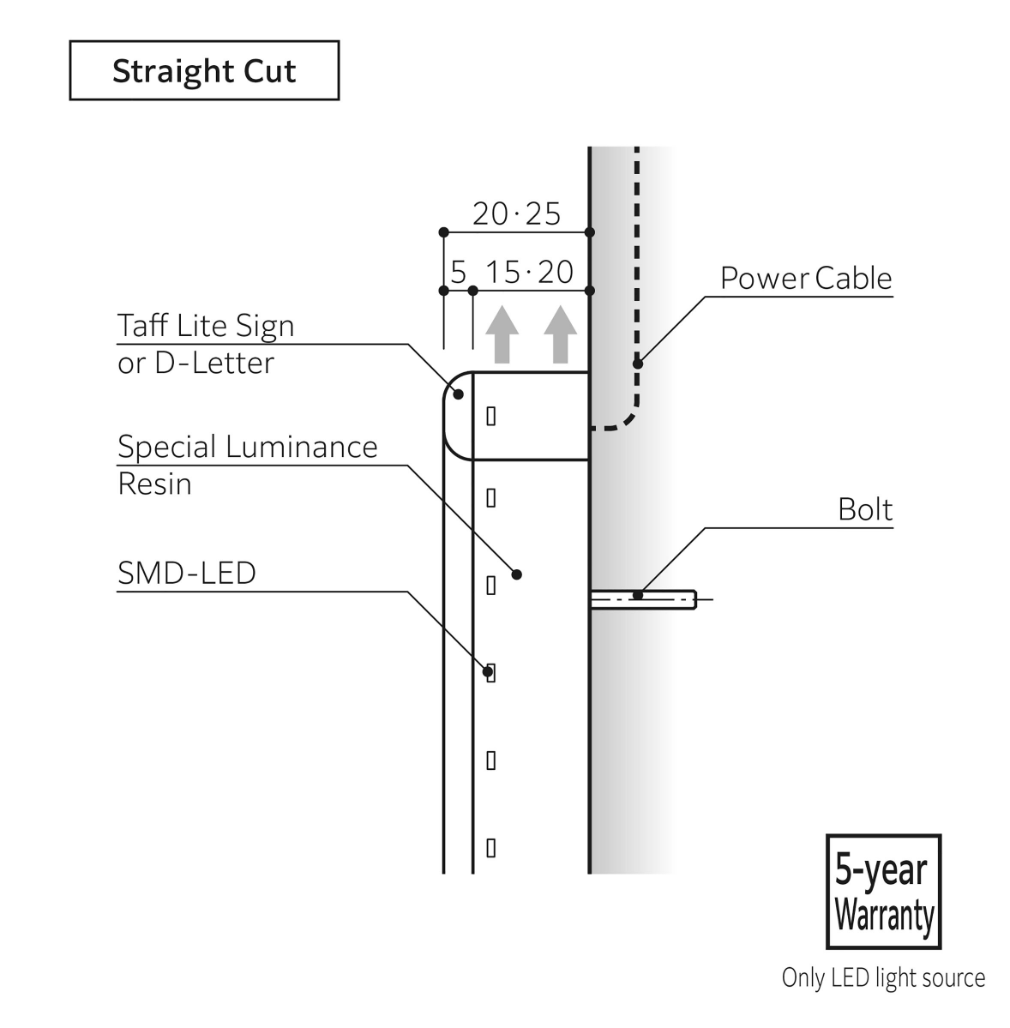

Side Lit Type-A (Straight Cut)

Wide selection of Taff Lite Sign and D-Letter finishing styles for Lumi Letter top layer provide infinite visual variations, reflecting distinct quality of Daikan brand. It also creates a nice halo effect without LED spots on any installation surface.

Surface: Taff Lite 5mm Thick / R-Direct Cut Brushed Nickel Body: Special Luminance Resin 15mm Thick / Straight Cut Light Source: SMD-LED Natural White
Surface: Taff Lite 5mm Thick / R-Direct Cut Brushed Nickel
Body: Special Luminance Resin 15mm Thick / Straight Cut
Light Source: SMD-LED Natural White
Surface: Taff Lite 5mm Thick / R-Direct Cut Brushed Nickel Body: Special Luminance Resin 15mm Thick / Straight Cut Light Source: SMD-LED Natural White
  • Dimmer
  • Extra Bright Model
  • Quick Release System
  • Outdoor Use Available

Specification

Light Source SMD-LED on Custom Designed Circuit Board
Material,Thickness Taff Lite or D-Letter 5mm Thick (Recommended) / Special Luminance Resin 15,20mm Thick
Size Recommended: 100-450mm Available: 100-900mm
*As for Taff Lite, the largest size varies by its finishing
Minimum Stroke Width Recommended: 24mm
Available: 8mm *Light spots will be visible

Notes

  • *Light spots may be visible if the stroke width is less than recommended.
  • *Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
  • *The designated AC/DC Power Supply to be used.
  • *For a Quick Release System, please refer to this.
  • *This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

  • *See “Warranty Policy” before placing orders.
  • *Product specifications and appearance may be subject to change without notice due to the improvement.
  • *Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.

Color Variations

Color Variations

LED Color Variation

Expanded number of neutral finishes from 5 to 8, and color finishes from 4 up to 8, bringing the total to 16 colors with 7 new additions. Our key focus is on lamp color temperatures that create an antique ambience and luminance.

  • Cool White 6100K (6400K-5800K)
    Cool White
    6100K (6400K-5800K)
  • Natural White 5200K (5500K-4900K)
    Natural White
    5200K (5500K-4900K)
  • Vanilla White 4700K (4900K-4500K)
    Vanilla White
    4700K (4900K-4500K)
  • Ivory White 3900K (4100K-3600K)
    Ivory White
    3900K (4100K-3600K)
  • Warm White 3400K (3600K-3100K)
    Warm White
    3400K (3600K-3100K)
  • Lamp Color 3000K (3200K-2800K)
    Lamp Color
    3000K (3200K-2800K)
  • Antique Lamp 2700K (2900K-2600K)
    Antique Lamp *
    2700K (2900K-2600K)
  • Candle Color 2200K (2300K-2100K)
    Candle Color *
    2200K (2300K-2100K)
  • Blue
    Blue
  • Sky Blue
    Sky Blue *
  • Green
    Green
  • Yellow
    Yellow *
  • Amber
    Amber
  • Red
    Red
  • Purple
    Purple *
  • Pink
    Pink *

*Please note that Antique Lamp,Candle Color,Sky Blue,Yellow,Purple,Pink are indoor use only.

*The color of the sign is opal when the light is off.

*The actual colors may slightly differ from images above.

Color Temperature Chart

Swipe left or right to view.

Scroll
