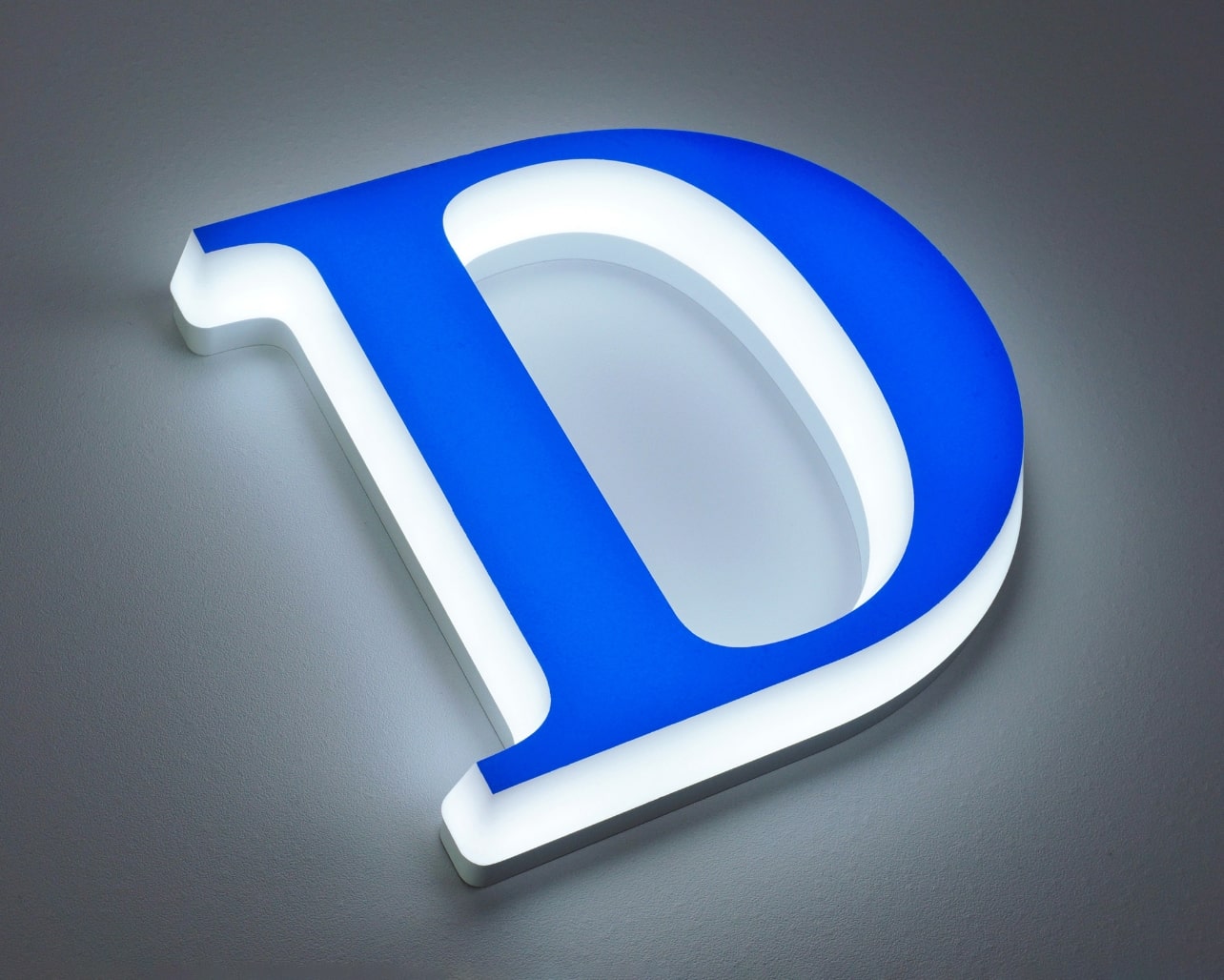

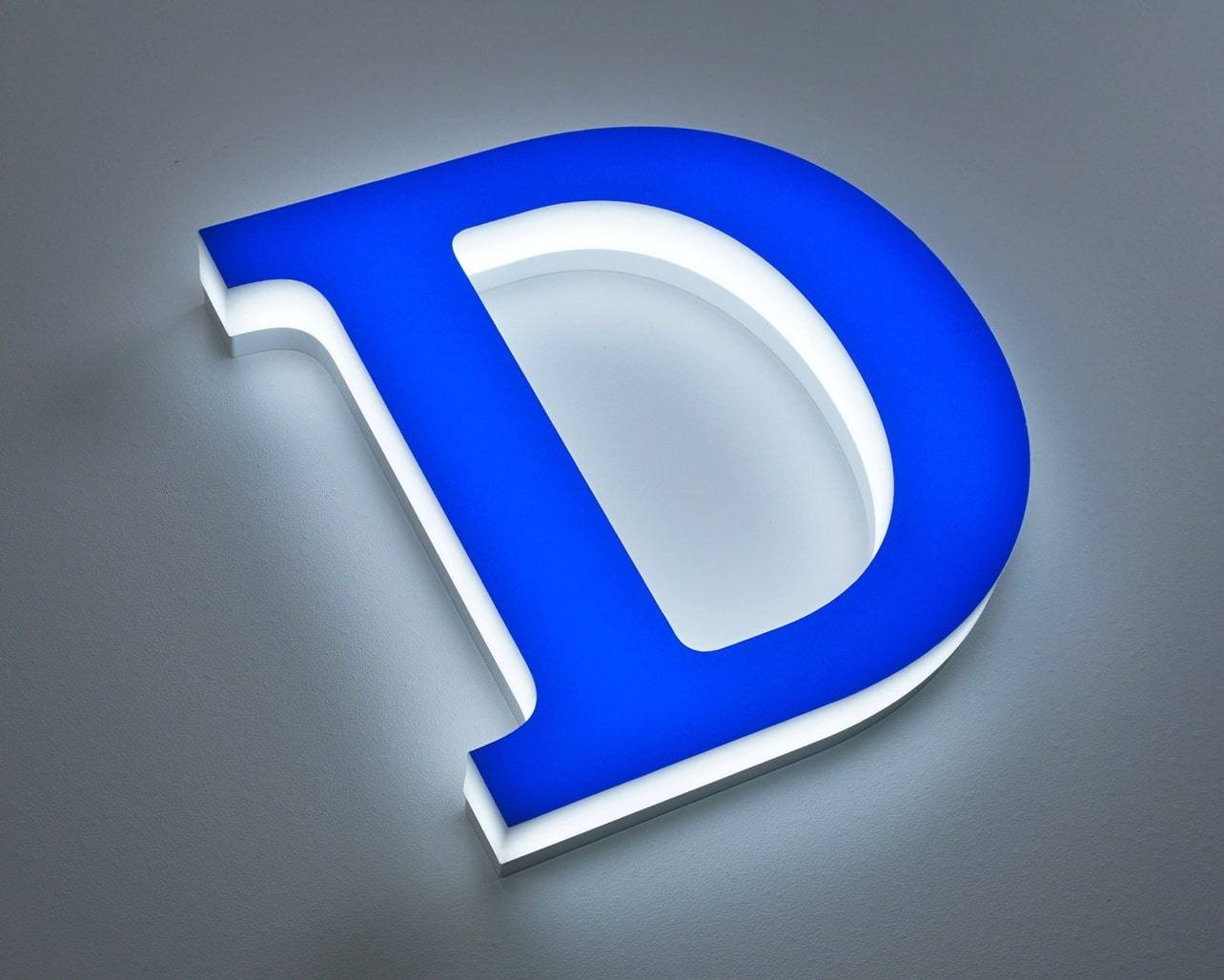

Lumi Letter

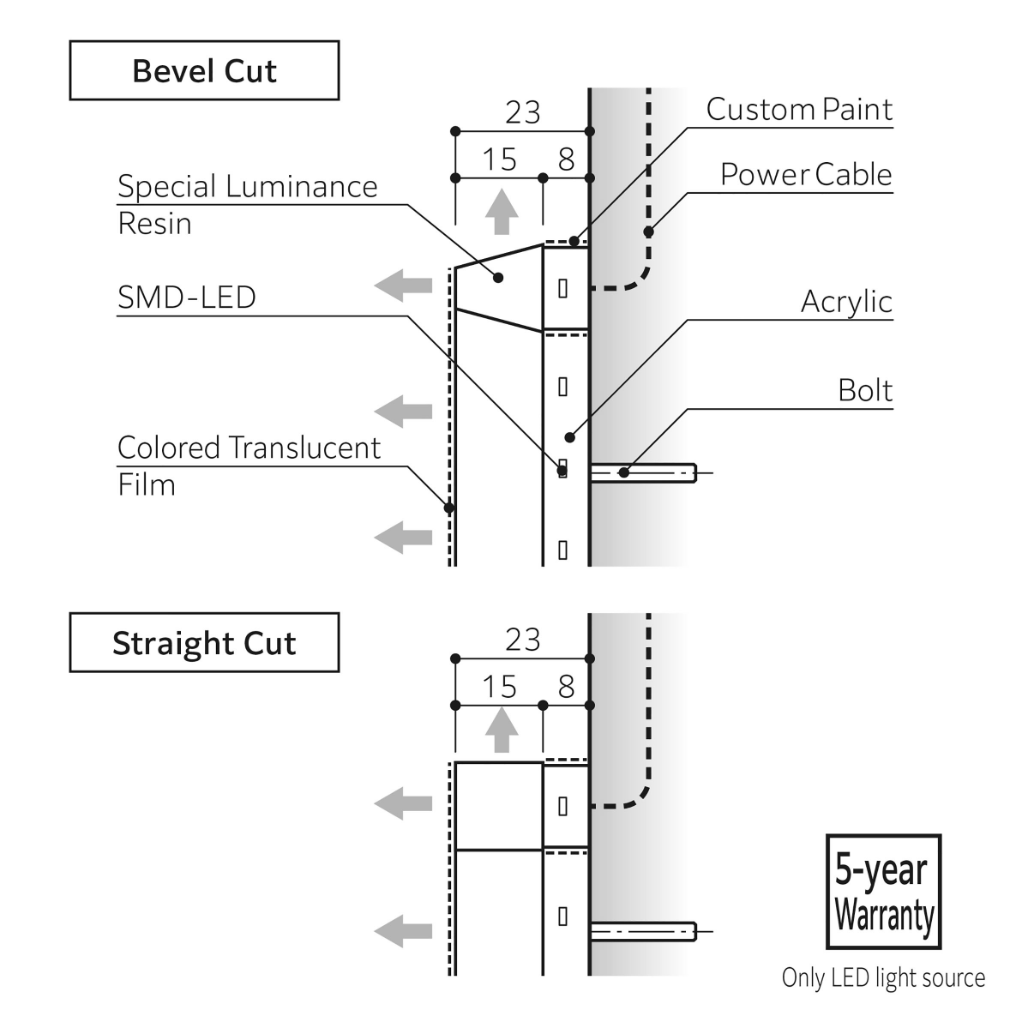

Face and Side Lit (Bevel Cut / Straight Cut)

Lumi Letter with two-tone illumination effect. With transparent vinyl sheet, it maintains the same visual image whether LED light is on or off.

Surface: Colored Translucent Film Attached Body: Special Luminance Resin 15mm Thick Bevel Cut w/ Acrylic 8mm Thick Custom White Painted Light Source: SMD-LED Natural White — Surface: Colored Translucent Film Attached
Body: Special Luminance Resin 15mm Thick Bevel Cut w/ Acrylic 8mm Thick Custom White Painted
Light Source: SMD-LED Natural White

Surface: Colored Translucent Film Attached Body: Special Luminance Resin 15mm Thick Straight Cut w/ Acrylic 8mm Thick Custom White Painted Light Source: SMD-LED Natural White — Surface: Colored Translucent Film Attached
Body: Special Luminance Resin 15mm Thick Straight Cut w/ Acrylic 8mm Thick Custom White Painted
Light Source: SMD-LED Natural White

Showcase

Specification

Light Source	SMD-LED on Custom Designed Circuit Board
Material,Thickness	Colored Translucent Film (Optional) / Special Luminance Resin 15mm Thick / Acrylic 8mmThick
Size	Bevel Cut Recommended: 70-450mm Available: 30-900mm
Size	Straight Cut Recommended: 100-450mm Available: 100-900mm
Minimum Stroke Width	Bevel Cut Recommended: 10mm Available: 1mm It varies depending on thickness and cutting method Light spots will be visible
Minimum Stroke Width	Straight Cut Recommended: 18mm Available: 9.5mm *Light spots will be visible

Notes

*Light spots may be visible if the stroke width is less than recommended.
*Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
*The designated AC/DC Power Supply to be used.
*For a Quick Release System, please refer to this.
*This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

*See “Warranty Policy” before placing orders.
*Film and inkjet parts are not covered under the warranty.
*Product specifications and appearance may be subject to change without notice due to the improvement.
*Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.

Color Variations

LED Color Variation

Expanded number of neutral finishes from 5 to 8, and color finishes from 4 up to 8, bringing the total to 16 colors with 7 new additions. Our key focus is on lamp color temperatures that create an antique ambience and luminance.
