Lumi Letter

Face Lit (Bevel Cut / Straight Cut)

Standard model of Lumi Letter with special luminance resin illuminated by embedded LED. It offers broad design possibilities with 16 LED color variations. Please specify desired paint color for the sides.

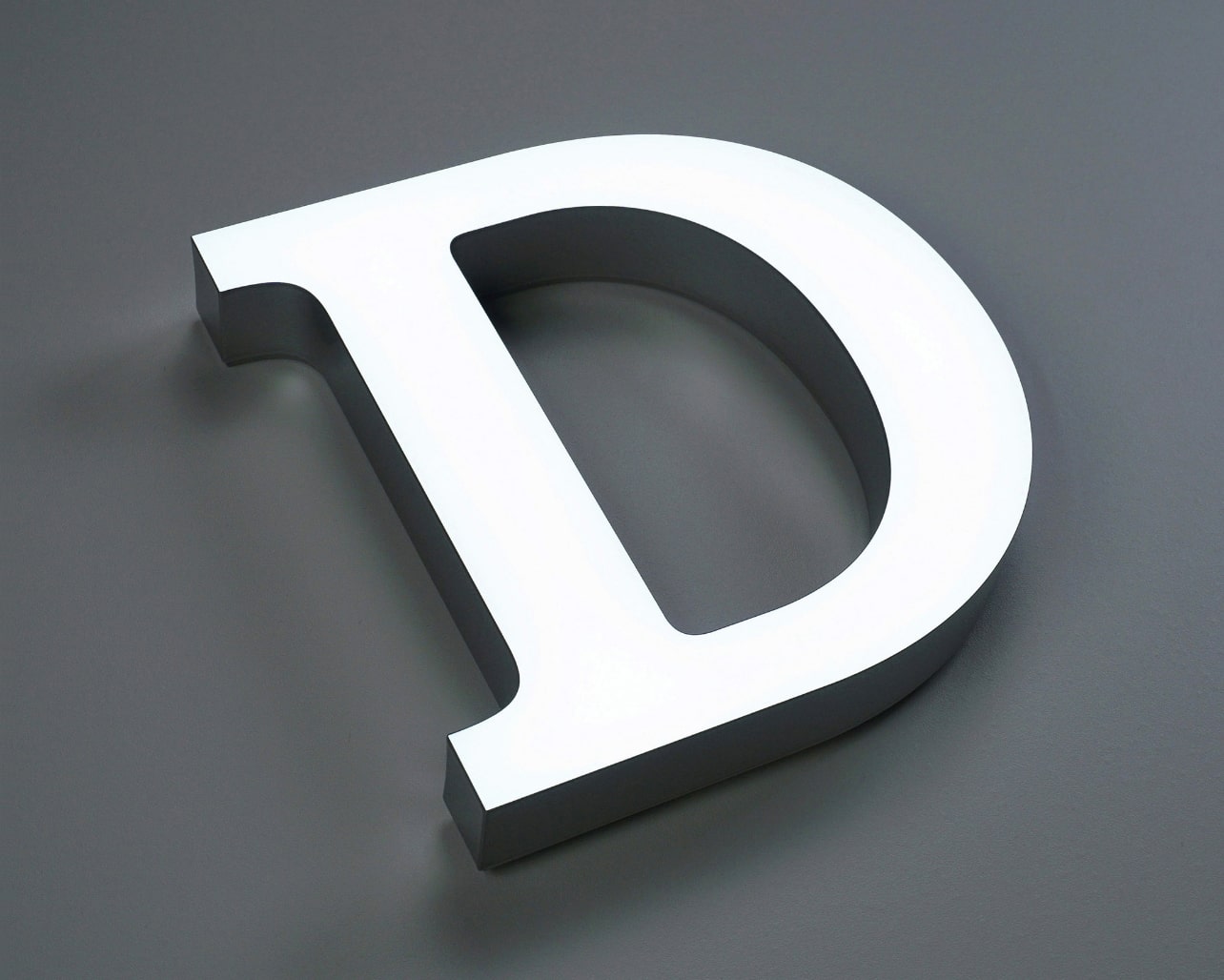

Body: Special Luminance Resin 20mm Thick/ Bevel Cut Sparkle Silver Painted sides Light Source: SMD-LED Natural White — Body: Special Luminance Resin 20mm Thick/ Bevel Cut
Sparkle Silver Painted sides
Light Source: SMD-LED Natural White

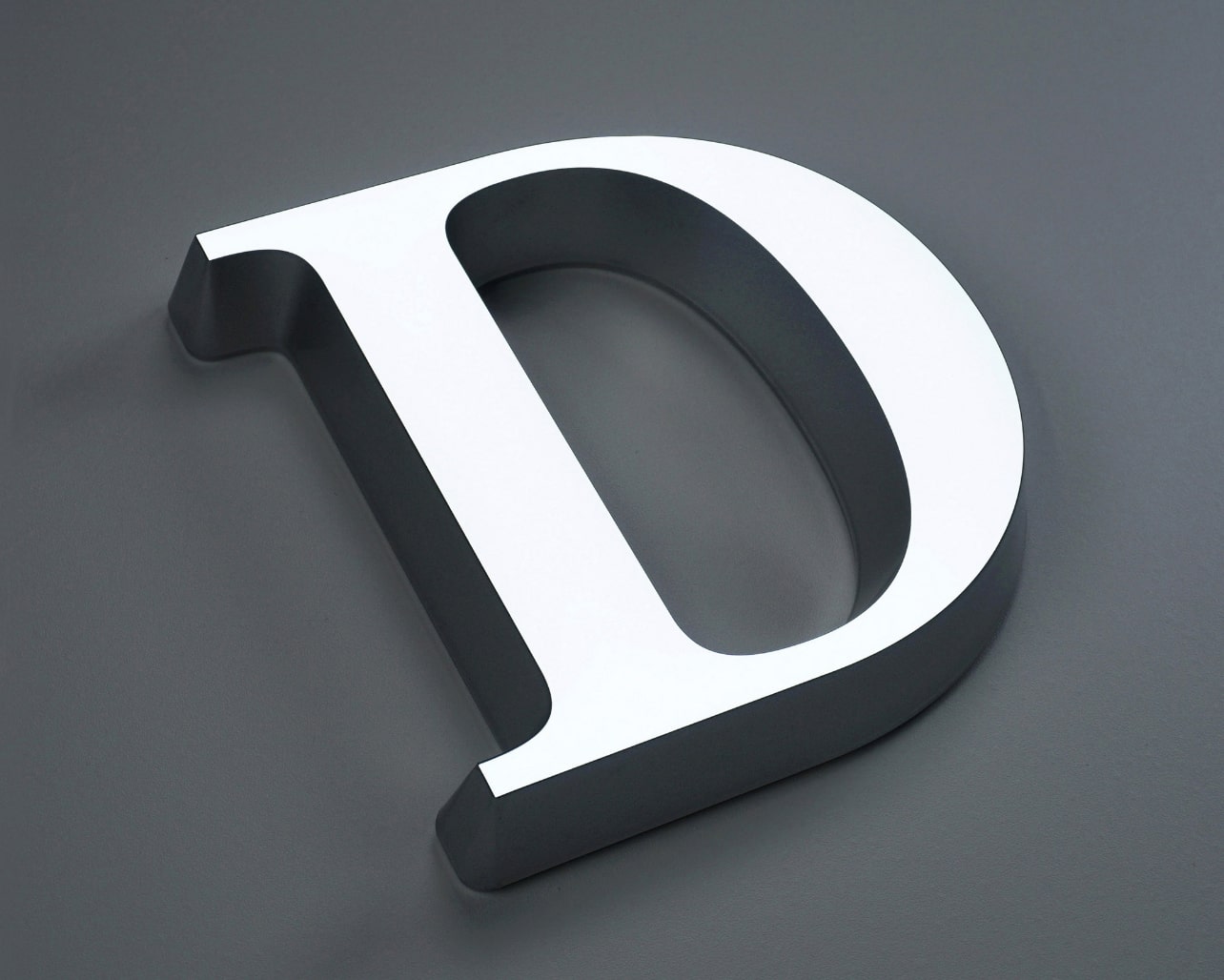

Body: Special Luminance Resin 20mm Thick/ Straight Cut Sparkle Silver Painted sides Light Source: SMD-LED Natural White — Body: Special Luminance Resin 20mm Thick/ Straight Cut
Sparkle Silver Painted sides
Light Source: SMD-LED Natural White

Showcase

Specification

Light Source	SMD-LED on Custom Designed Circuit Board
Material,Thickness	Luminance Resin 15,20,30mm Thick Custom Painted Sides Back Panel: ABS Resin 2mm Thick *15mm thick is available only for a stroke of less than 10mm.
Size	Bevel Cut Recommended: 70-450mm Available: 30-900mm
Size	Straight Cut Recommended: 100-450mm Available: 100-900mm
Minimum Stroke Width of Luminance Layer	Bevel Cut 1mm It varies depending on thickness and cutting method Please contact us for a stroke of less than 1mm.
Minimum Stroke Width of Luminance Layer	Straight Cut 8mm ( 6.5mm for Slim Type )

Notes

*Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
*The designated AC/DC Power Supply to be used.
*For a Quick Release System, please refer to this.
*This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

*See “Warranty Policy” before placing orders.
*Film and inkjet parts are not covered under the warranty.
*Product specifications and appearance may be subject to change without notice due to the improvement.
*Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.

Color Variations

LED Color Variation

Expanded number of neutral finishes from 5 to 8, and color finishes from 4 up to 8, bringing the total to 16 colors with 7 new additions. Our key focus is on lamp color temperatures that create an antique ambience and luminance.
