LUMI FLEX
LUMI FLEX LINE

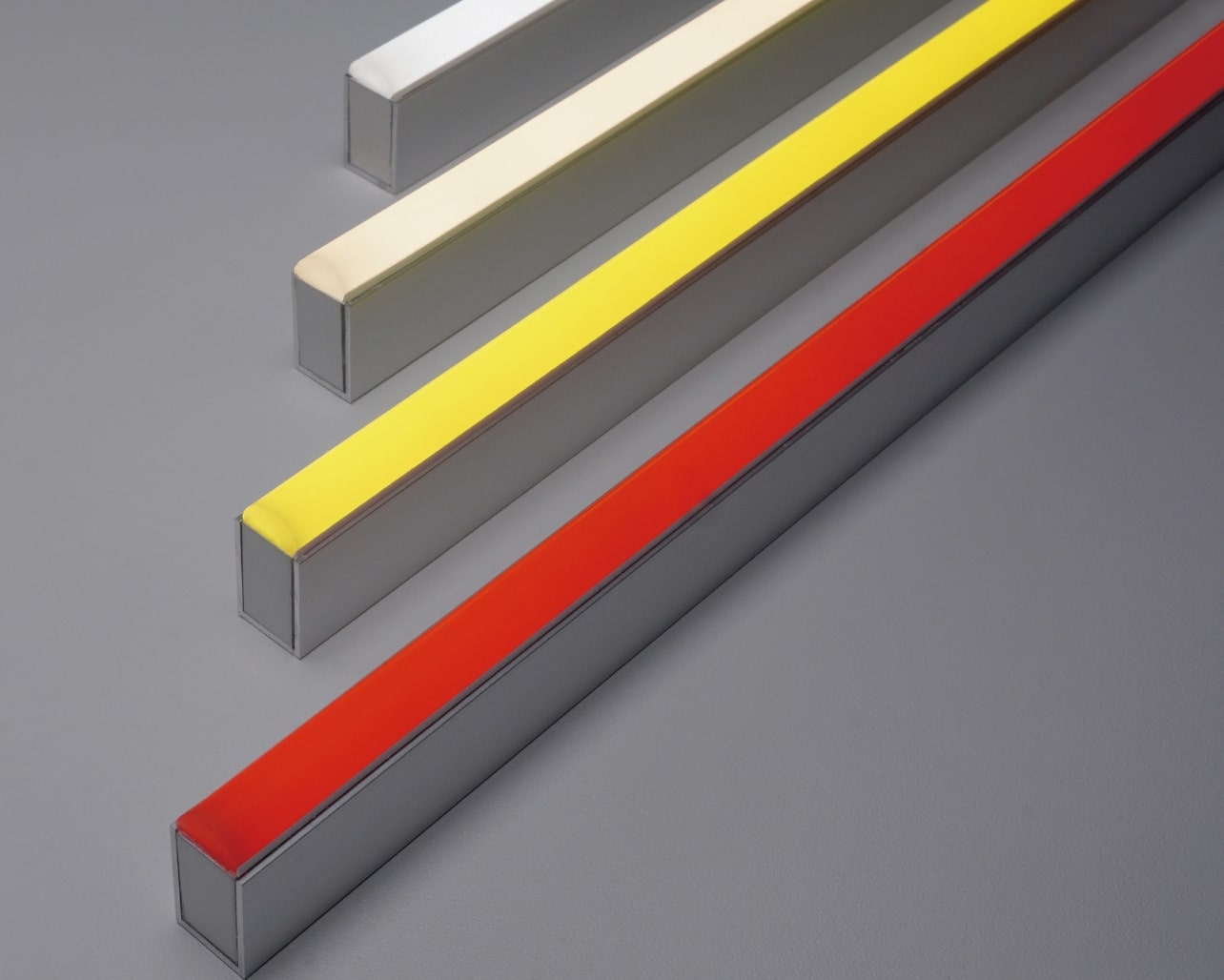

Seamless illumination with no LED bright spots. The slim aluminum body features two types of end caps with 12 different colors to choose from.

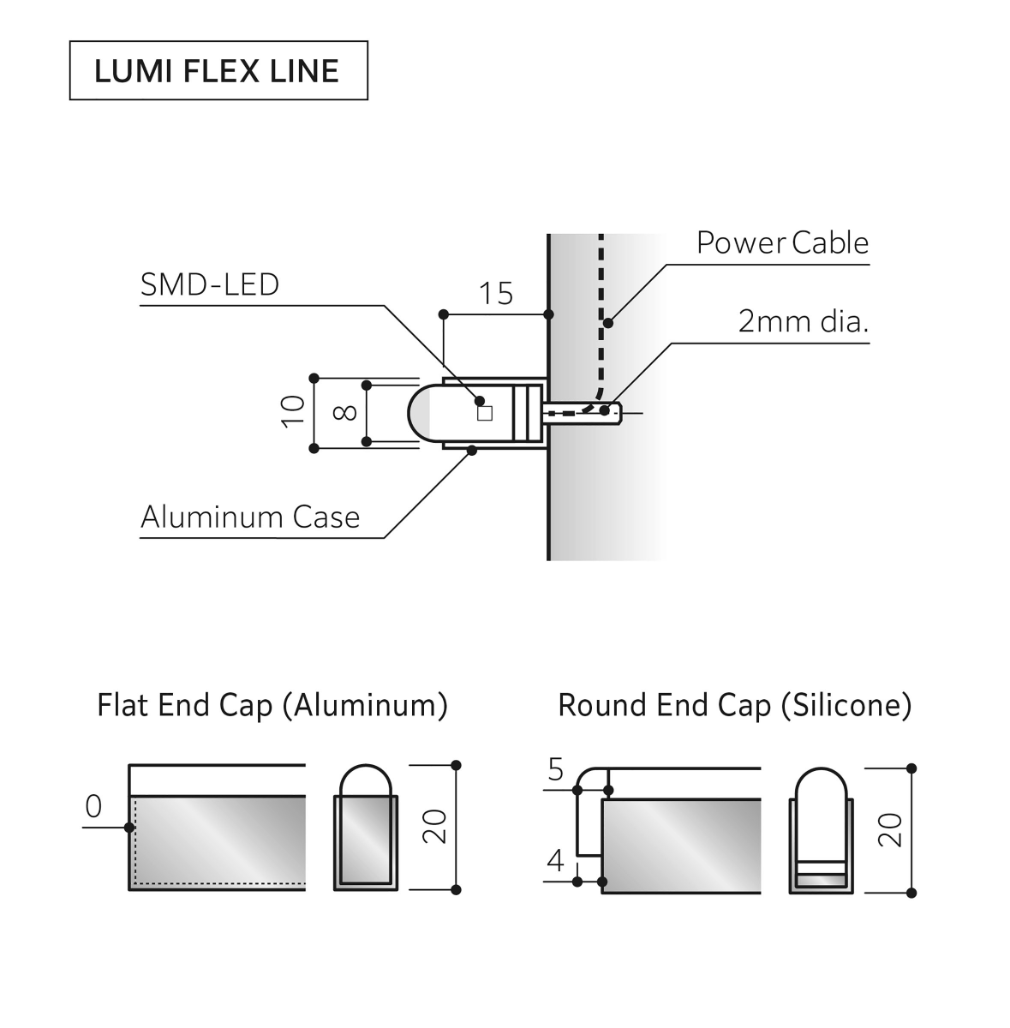

Specification
| Size | W150mm-2,000mm (W160-2,010mm if using end cap) |
|---|---|
| Case | Aluminum in Alumite Silver Finish (straight line only) |
*Length with multiple of 25mm is available. In other cases, please contact us.
*Custom painted finish and film wrapping are also available.
*Curve line is available. Please contact us for details.
Notes
- *The designated AC/DC Power Supply to be used.
Precautions
- *See “Warranty Policy” before placing orders.
- *LUMI FLEX has a one-year warranty.
- *Product specification and appearance may be subject to change without notice due to product improvement.

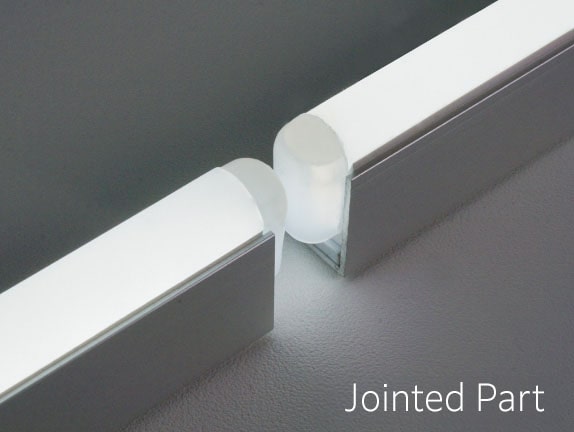

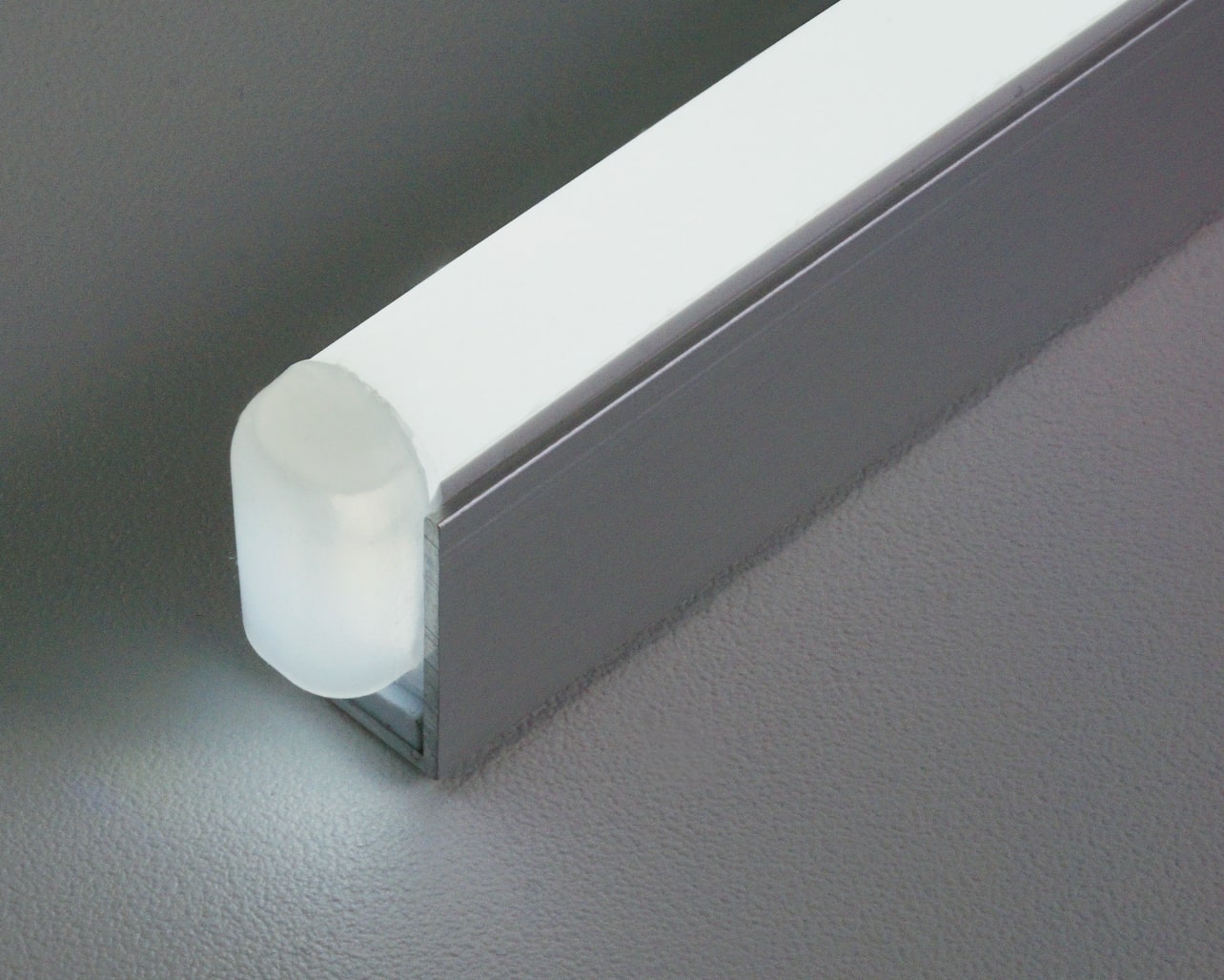

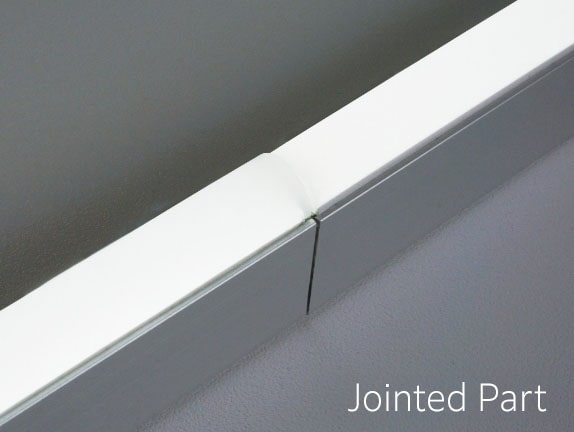

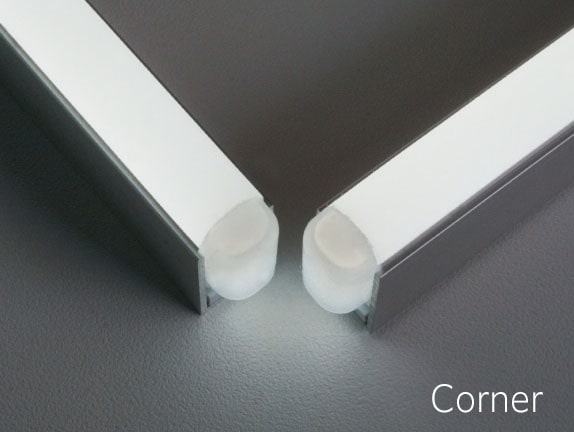

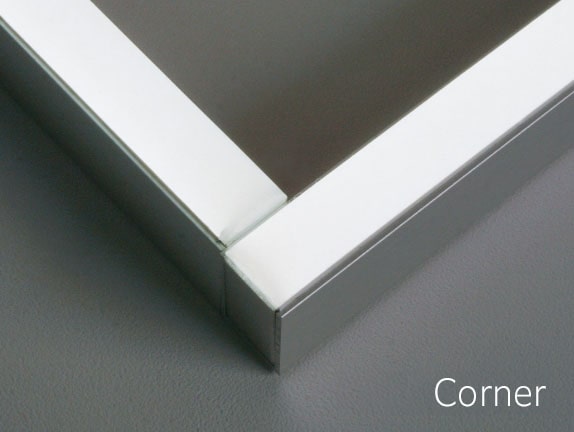

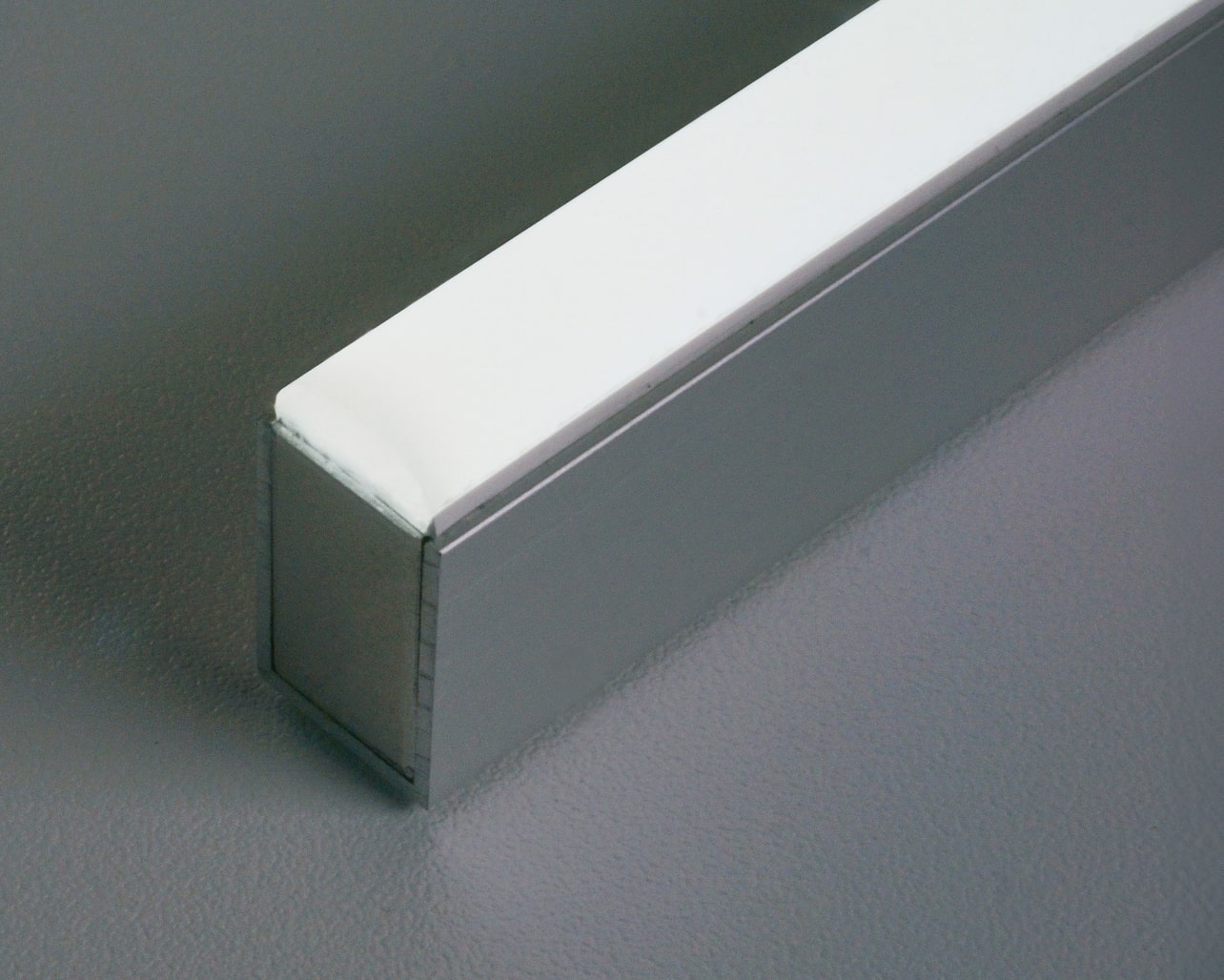

2 variations of end caps
Color Variations
Color Variations
LED Color Variation
-
Lemon Yellow * -
Golden Yellow * -
Orange * -
Red -
Light Pink * -
Pink * -
White -
Warm White -
Green * -
Blue -
Ice Blue -
Purple *
*Colors marked with * may fade due to the feature of coloring the silicone section.
Fading will not have a significant effect on the illuminated colors.
*The actual colors may slightly differ from images above.
CONTACT
■Contact us by phone
Global Sales Group (Headquarters)+81-6-6626-9680
DAIKAN HONG KONG LIMITED+852-3618-8360
About Artwork Conversion for LUMI FLEX
*Please note that your original logo artwork will be converted into a special artwork for production.
-
Based on the provided artwork, create the center line while keeping the original logo features.
-
The minimum length of dots or small parts is 35mm including the end caps.
-
The minimum radius of the curve is R12mm or more from the center of the LED tube. If it is less than R12mm, the logo need to be adjusted as shown in the above figure.
Please refer to the differences in logo artwork depending on products
Original Logo Artwork
-
LUMI LETTER TUBE SERIES
Letter stroke width should be uniformed while keeping with the logo features.
-
LUMI FLEX
The design and tube size are limited since they cannot be machined in letters smaller than 100mm or the curves of less than R12mm.
Notice about LUMI FLEX
-
The side of the LED tube (silicone resin) is white. If the Back Panel is custom painted in a different color, white outline will be slightly visible on the edge but less obvious when the logo is illuminated.
-
A resin end cap is attached to the end of ○ part. When illuminated, it will be slightly darker than other areas. Also, the ○ circled area will be slightly shaded depending on the viewing angle.
