LUMI FLEX
Base Type
Lumi FLEX (base type) is a LED sign with an integrated base that features recessed grooves with a uniformed width and where an LED tube light can be fitted into. The base color can be customized freely, making it ideal for signage for amusement facilities, logos for shops with a pop and vibrant atmosphere, and illustrations.

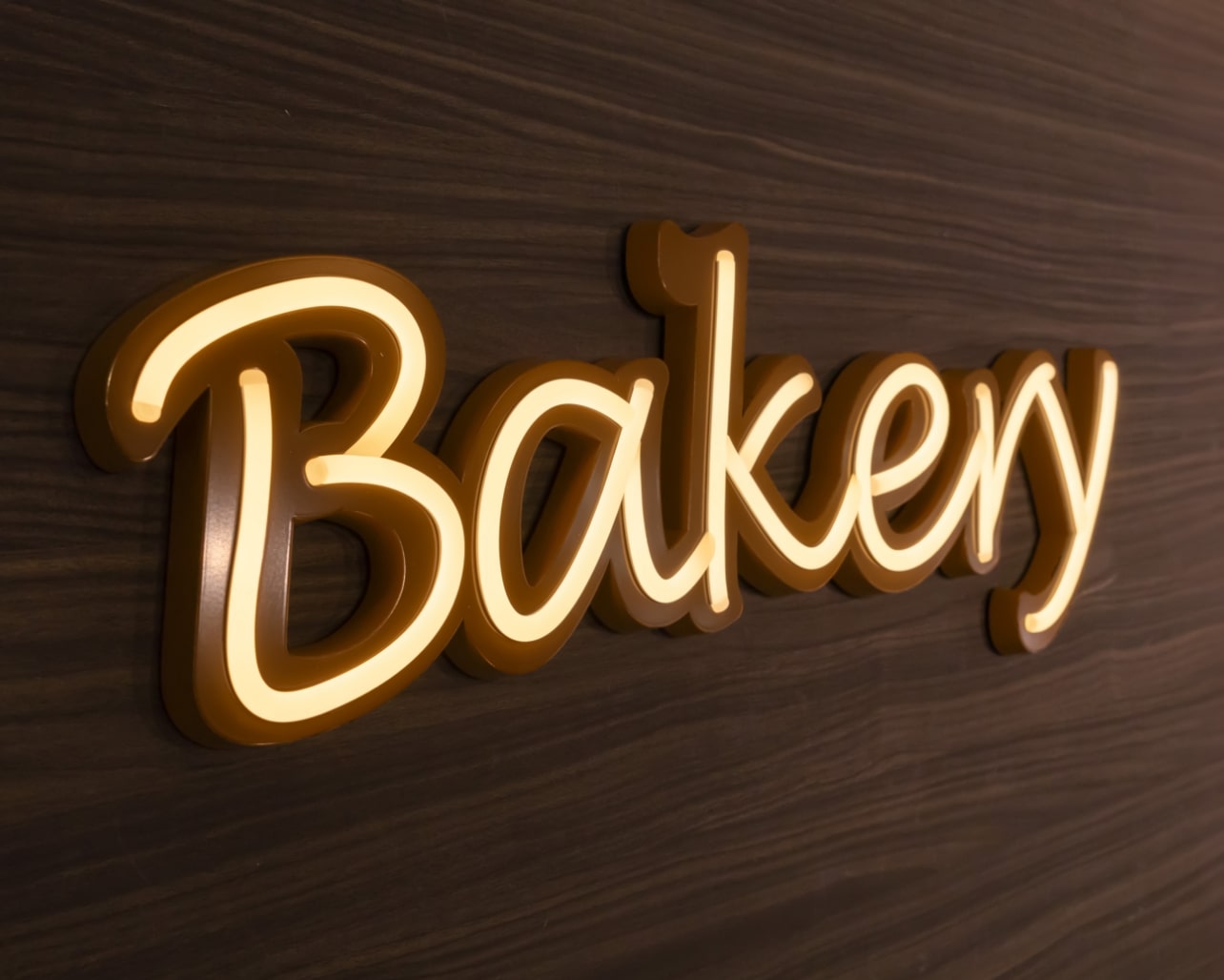

Light Source: SMD-LED Warm White

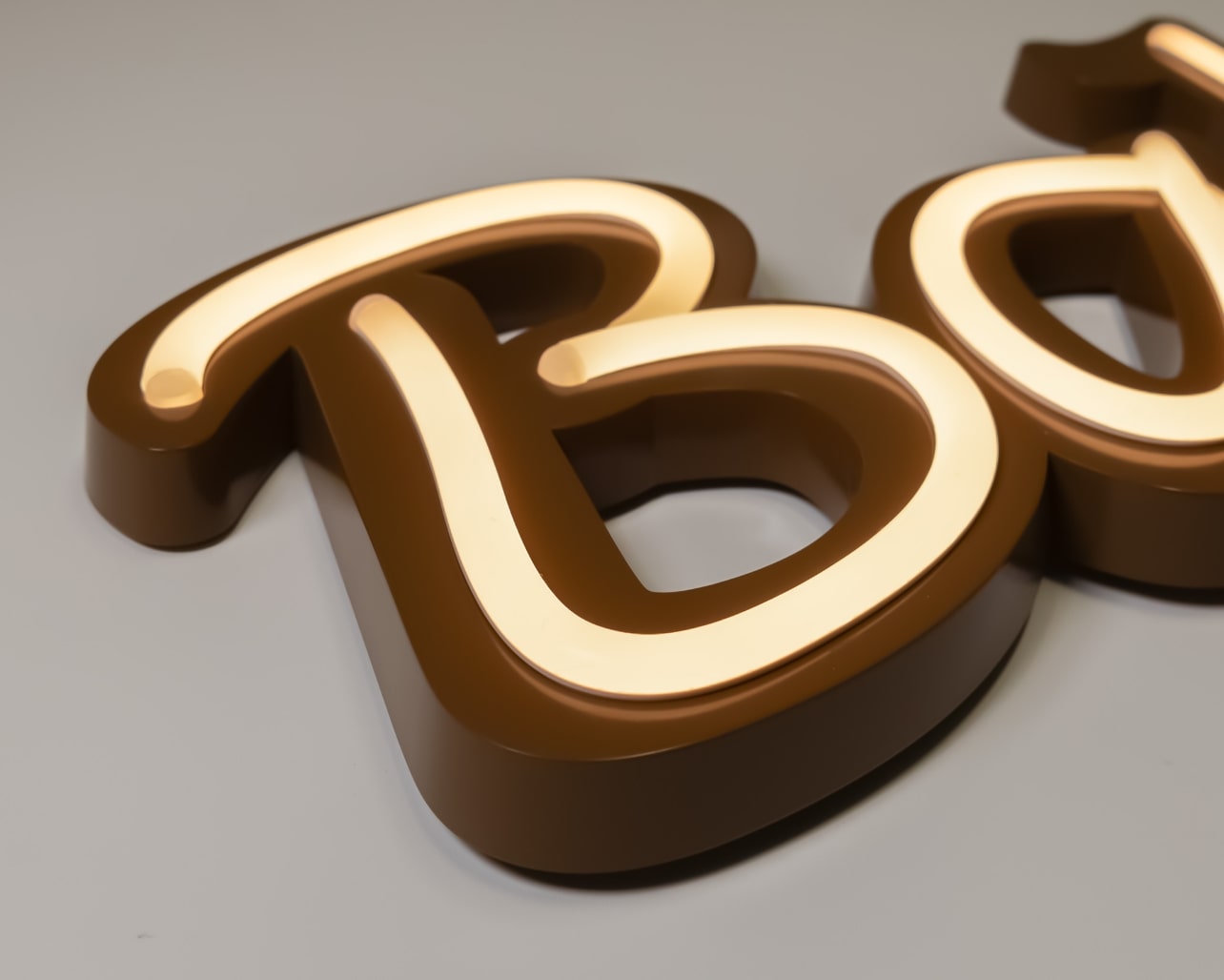

Light Source: SMD-LED Warm White

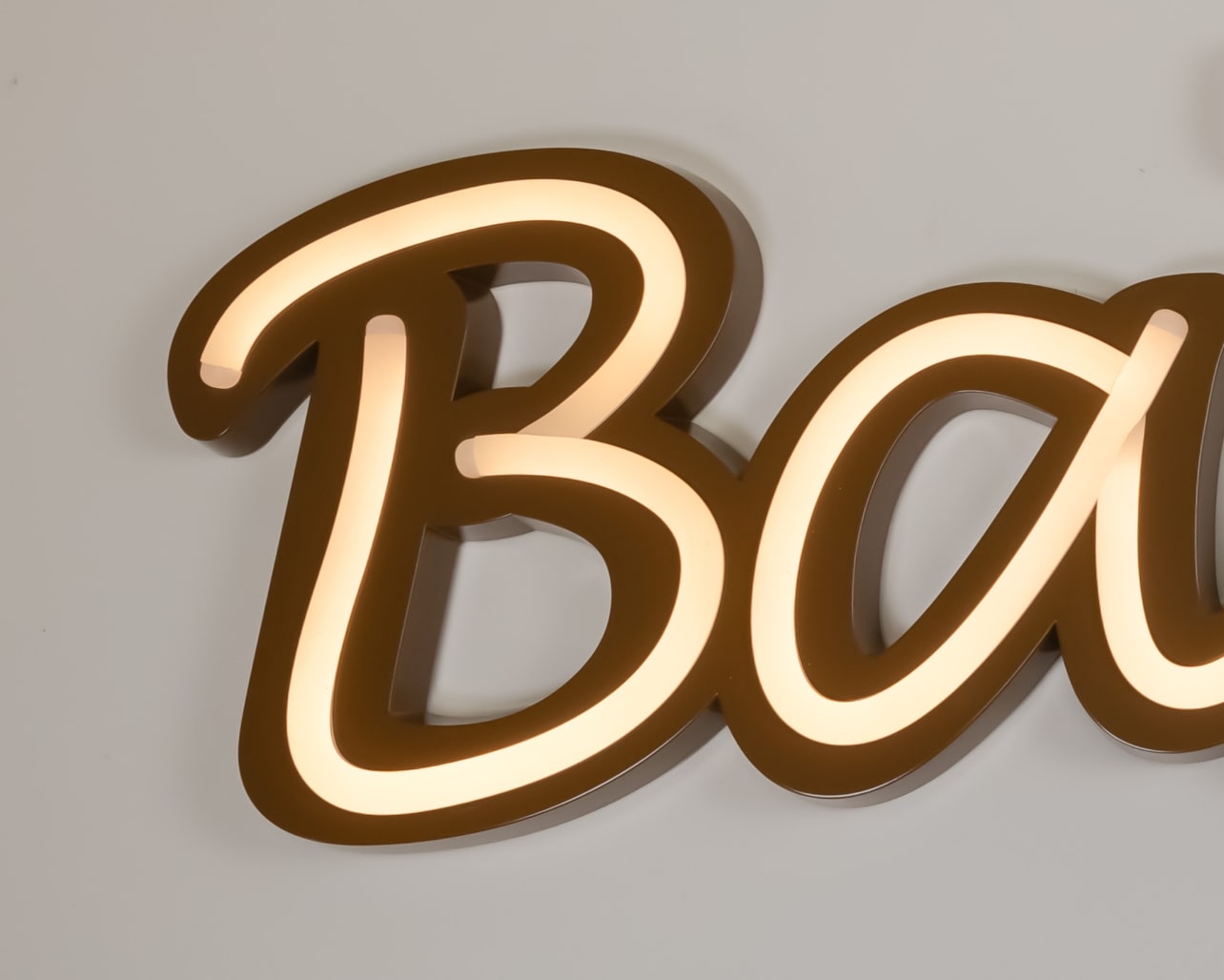

Light Source: SMD-LED Warm White

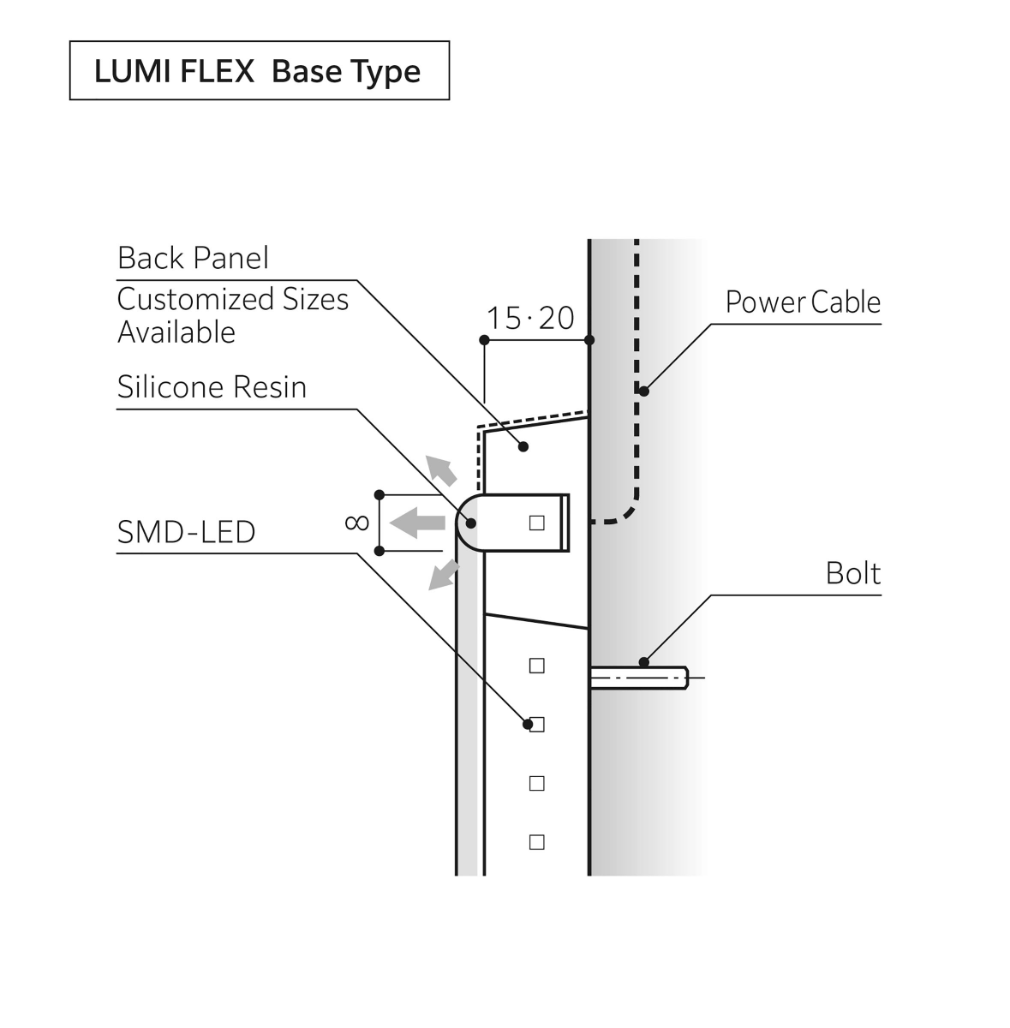

Specification
| Light Source | SMD-LED on Circuit Board (Tape Light) |
|---|---|
| Material,Thickness | Silicone Resin / ABS Resin 15, 20mm Thick |
| Size | Maximum:900×1800mm |
| Stroke Width (TUBE) | 8mm |
Notes
- *Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
- *The designated AC/DC Power Supply to be used.
- *Quick Release System is not available for LUMI FLEX.
Precautions
- *See “Warranty Policy” before placing orders.
- *LUMI FLEX has a one-year warranty. However, return of damaged item to us is required.
- *Product specification and appearance may be subject to change without notice due to product improvement.
- *Some letters cannot be manufactured depending on the font type. Please send us your logo artwork in Adobe Illustrator format, and we will provide an accurate quotation.
Color Variations
Color Variations
LED Color Variation
-
Lemon Yellow * -
Golden Yellow * -
Orange * -
Red -
Light Pink * -
Pink * -
White -
Warm White -
Green * -
Blue -
Ice Blue -
Purple *
*Colors marked with * may fade due to the feature of coloring the silicone section.
Fading will not have a significant effect on the illuminated colors.
*The actual colors may slightly differ from images above.
CONTACT
■Contact us by phone
Global Sales Group (Headquarters)+81-6-6626-9680
DAIKAN HONG KONG LIMITED+852-3618-8360
About Artwork Conversion for LUMI FLEX
*Please note that your original logo artwork will be converted into a special artwork for production.
-
Based on the provided artwork, create the center line while keeping the original logo features.
-
The minimum length of dots or small parts is 35mm including the end caps.
-
The minimum radius of the curve is R12mm or more from the center of the LED tube. If it is less than R12mm, the logo need to be adjusted as shown in the above figure.
Please refer to the differences in logo artwork depending on products
Original Logo Artwork
-
LUMI LETTER TUBE SERIES
Letter stroke width should be uniformed while keeping with the logo features.
-
LUMI FLEX
The design and tube size are limited since they cannot be machined in letters smaller than 100mm or the curves of less than R12mm.
Notice about LUMI FLEX
-
The side of the LED tube (silicone resin) is white. If the Back Panel is custom painted in a different color, white outline will be slightly visible on the edge but less obvious when the logo is illuminated.
-
A resin end cap is attached to the end of ○ part. When illuminated, it will be slightly darker than other areas. Also, the ○ circled area will be slightly shaded depending on the viewing angle.
