LED Metal Channel RETRO

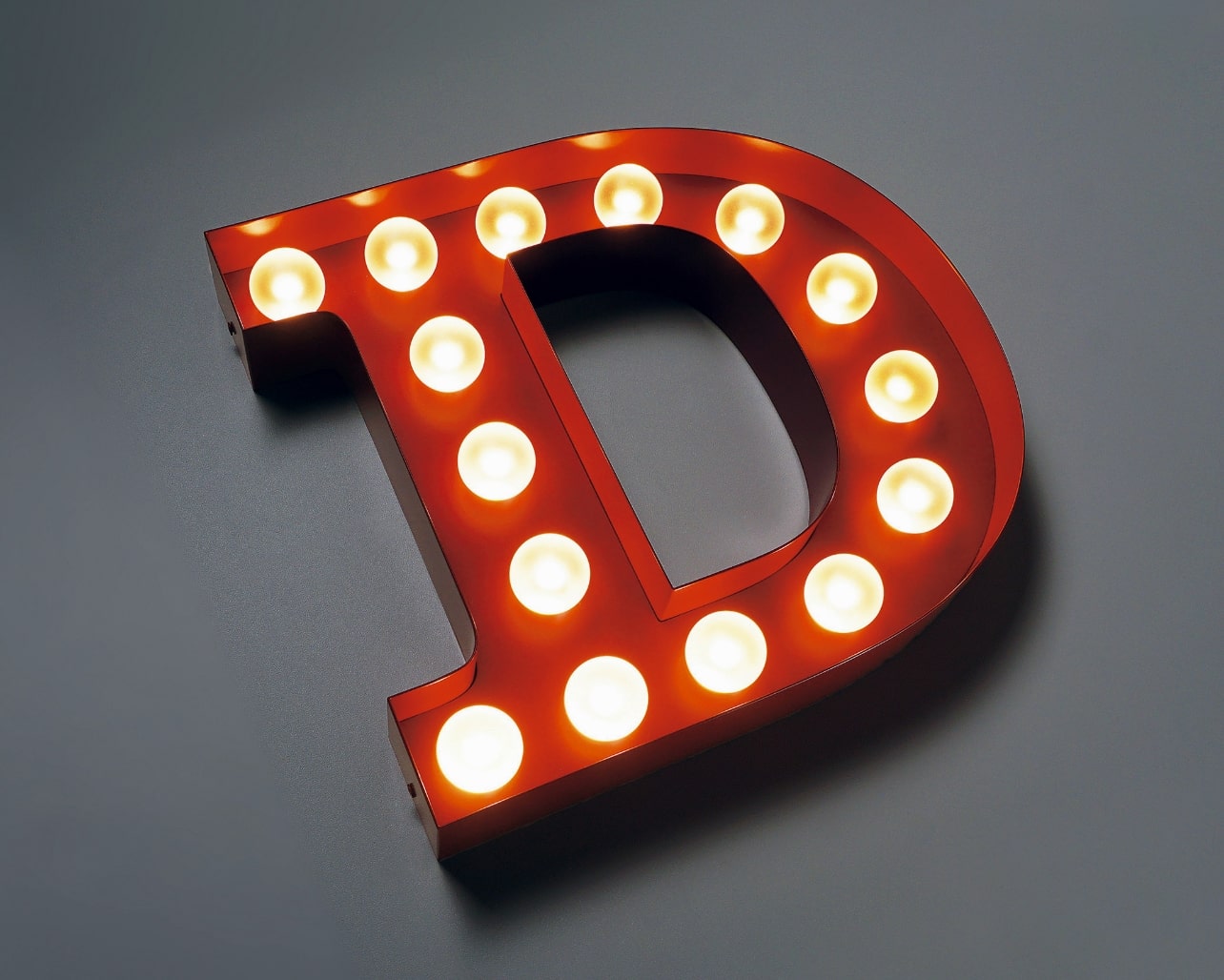

LED Metal Channel RETRO (Retro Bulb Type)
LED Metal Channel RETRO has a vintage look with Retro Bulb in Metal Channel body. The LED color can be selected from white and lump, and the texture of Retro Bulb can be selected from clear or matte to meet your needs.
Light Source: SMD-LED Lamp Color
Retro Bulb: 30mm dia. Matte Type
Specification
| Light Source | SMD-LED on Custom Designed Circuit Board |
|---|---|
| Material,Thickness | Stainless Steel or Steel Channel *Steel is for indoor use only / Acrylic (Retro Bulb) |
| Size | Recommended: 200-500mm Available: 150-600mm |
| Retro Bulb | 20, 30mm dia. |
| Minimum Stroke | 25mm (for Retro Bulb 20mm dia.) |
Notes
- *Please specify the paint color by the color code of RAL, Pantone or Benjamin Moore, etc.
- *The designated AC/DC Power Supply to be used.
- *Minimum letter height, thickness and stroke width vary by the size of Retro Bulb. Please contact us for details.
- *This product can be manufactured in accordance with “UL Recognized” or “CE” on request. Please contact us for details about standards such as UL, CE, CCC and KC.
Precautions
- *See “Warranty Policy” before placing orders.
- *Product specifications and appearance may be subject to change without notice due to the improvement.
- *Some designs may not be manufactured. Please send us the artwork in Adobe Illustrator format. We will provide the appropriate quotation.
LED Color
-

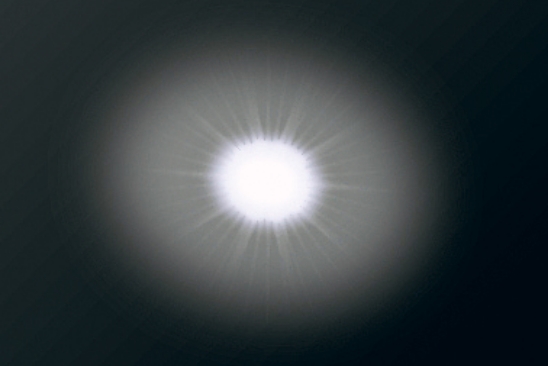

White (5300K) -

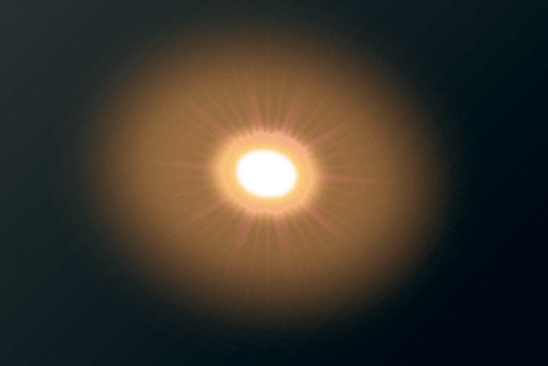

Lamp Color (2700K)
*The actual colors may slightly differ from images above.
Retro-Bulb Size Variation
Retro-Bulb Surface Finish
-

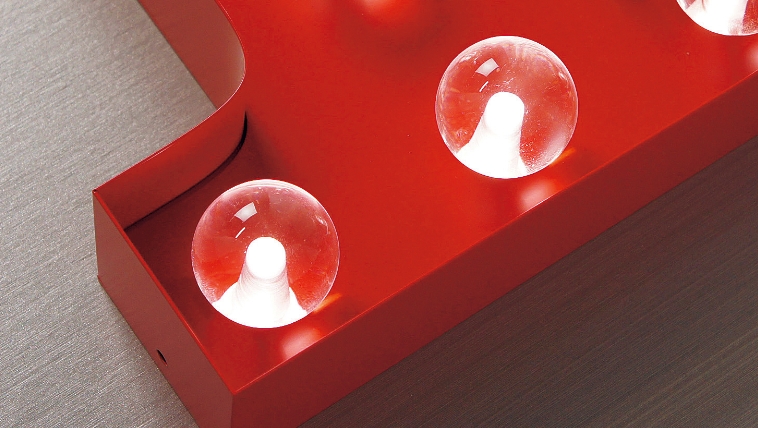

Clear Type -

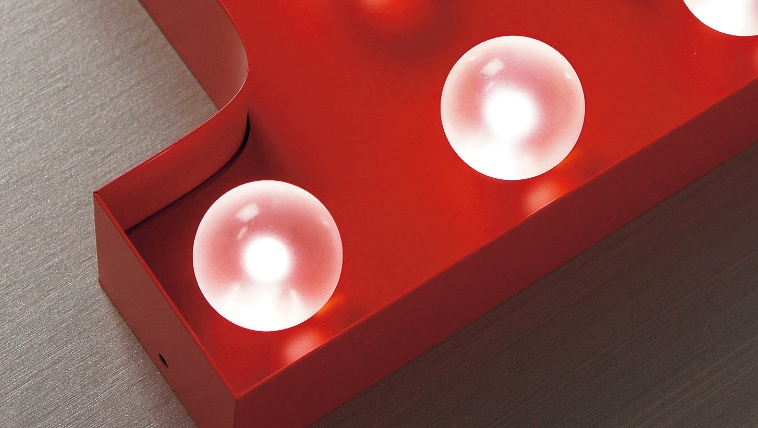

Matte Type
