LED Metal Channel

Face and Back Lit (Trim Cap Face)

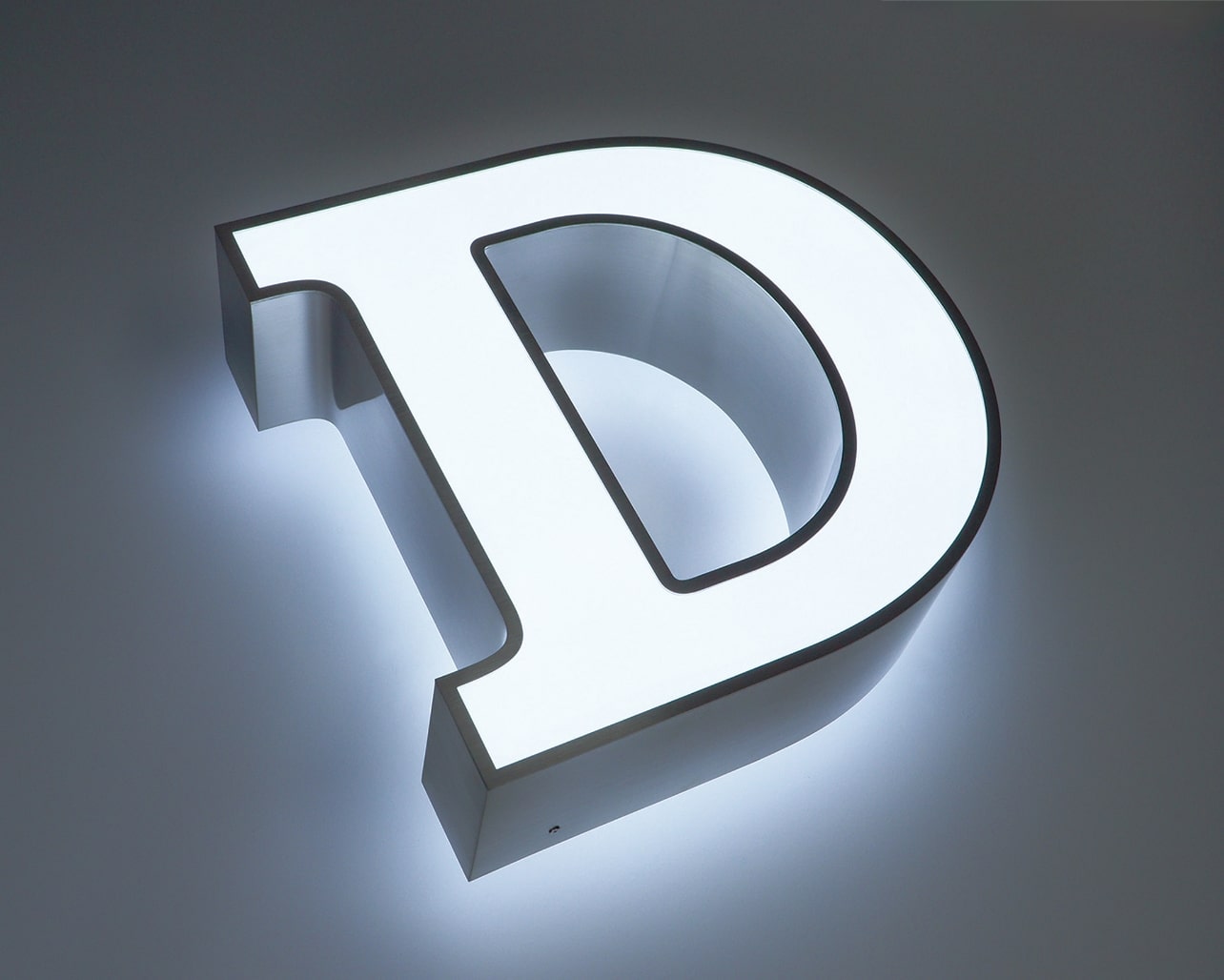

This model is a both front and back lit LED Metal Channel type. This is an ultimate LED sign that allows you to recognize letters clearly by emitting light on the front side, and also gives you a sense of floating by emitting light on the back side.

Surface: Opal Acrylic Body: Stainless Steel Channel Brushed Finish Light Source: LED Module Natural White — Surface: Opal Acrylic Body: Stainless Steel Channel Brushed Finish
Light Source: LED Module Natural White

Showcase

Specification

Light Source	LED Module / LED Custom Unit
Material	Acrylic / Stainless Steel with trim cap or Steel with trim cap *Steel is indoor use only.
Size	Recommended: 300-1000mm Available: 200-1500mm
Thickness	LED Module: 100mm～ \| LED Custom Unit: 60mm～
Minimum Stroke Width	LED Module: 20mm～ \| LED Custom Unit: 15mm～
Minimum Stroke Width of trim cap	5mm〜 *Trim Cap Width is attached from the basic logo to the outside.

Notes

*The drain hole with 8mm dia. is needed at the bottom of signage in the case of being installed outdoor locations.
*The designated AC/DC Power Supply to be used.
*Minimum letter height, minimum letter thickness and minimum stroke width vary depending on the light source. For details, please refer to our sales representatives.
*This product can be manufactured in accordance with “UL standard” or “CE mark” upon request. Please contact us for details about standards such as UL, CE, CCC and KC.

Precautions

*See “Warranty Policy” before placing orders.
*Film and inkjet parts are not covered under the warranty.
*Product specification and appearance may be subject to change without notice due to product improvement.
*Some letters cannot be manufactured depending on the font type. Please send us your logo artwork in Adobe Illustrator format, and we will provide an accurate quotation.

Color Variations

For the Light Source of LED Channel Letter
LED Custom Unit(Recommended Size: middle)

Incorporating the One-off Custom Designed Circuit Board into our Channel Letter. It is suitable for the logos with narrow strokes or a thin body. We’ve put together an abundance of LED color variations.
Face Lit | Thickness 40mm～
Back Lit | Thickness 25mm～

Cool White
6100K (6400K-5800K)
Natural White
5200K (5500K-4900K)
Vanilla white
4700K (4900K-4500K)
Ivory white
3900K (4100K-3600K)
Warm White
3400K (3600K-3100K)
Lamp Color
3000K (3200K-2800K)
Antique lamp *
2700K (2900K-2600K)
Candle Color *
2200K (2300K-2100K)
Blue
Sky Blue *
Green
Yallow *
Amber
Red
Purple *
Pink *

*Please note that Antique Lamp,Candle Color,Sky Blue,Yellow,Purple,Pink are indoor use only.

*The actual colors may slightly differ from images above.

For the Light Source of LED Channel Letter
LED Module(Recommended Size: middle-large)

For high quality assurance, we select high quality and reliable LED modules that checked against the inspection standards of our in-house quality assurance body. LED modules are selected in accordance with the installation environment and lettering sizes. LEDs come in three hues of white, red, blue, and green.
Face Lit | Thickness 70mm～
Back Lit | Thickness 50mm～
