LED Metal Channel

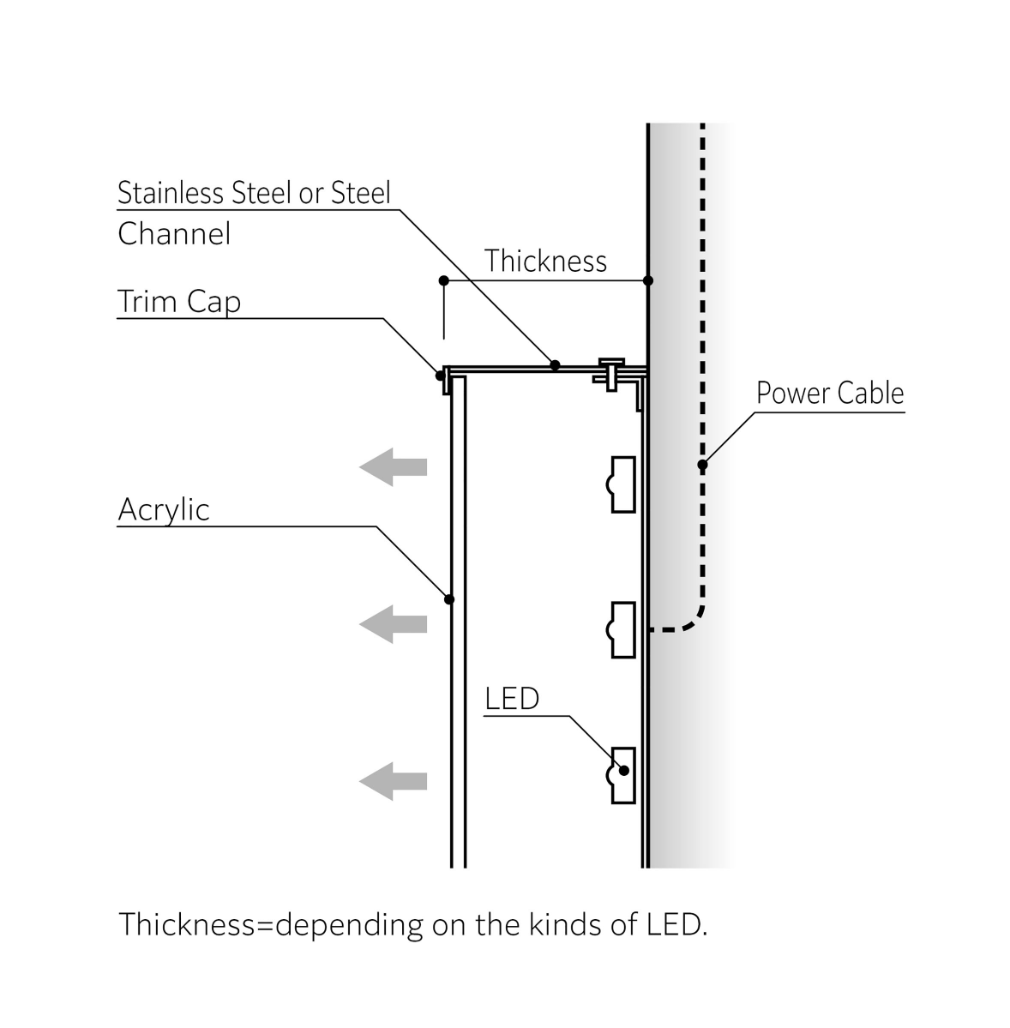

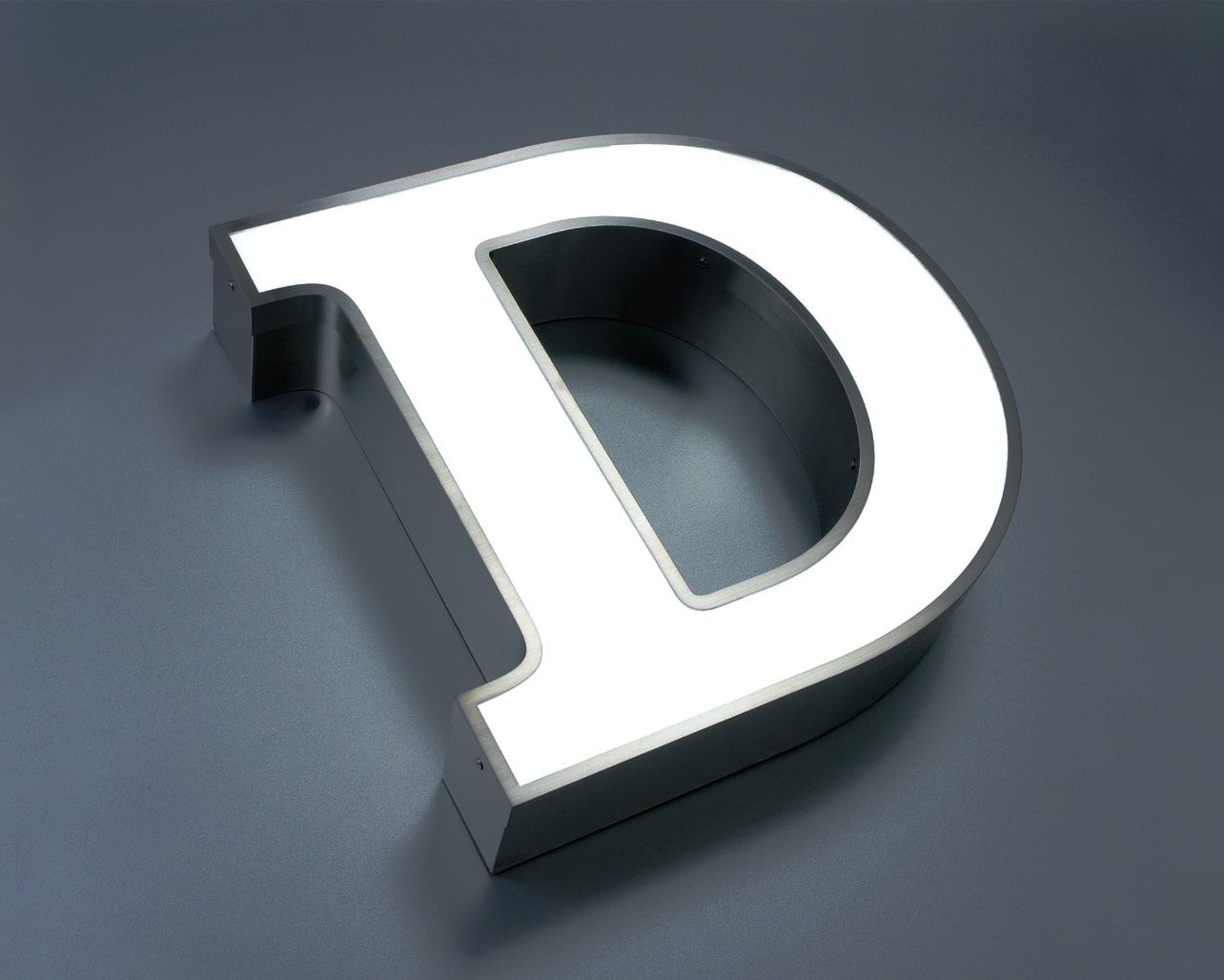

Face Lit (Trim Cap Face)
Specification
Light Source | LED Module / LED Custom Unit |
---|---|
Material | Acrylic / Stainless Steel with trim cap or Steel with trim cap *Steel is indoor use only. |
Size | Recommended: 300-1000mm Available: 200-1500mm |
Thickness | LED Module: 70mm~ | LED Custom Unit: 40mm~ |
Minimum Stroke Width | LED Module: 20mm~ | LED Custom Unit: 15mm~ |
Minimum Stroke Width of trim cap | 5mm〜 *Trim Cap Width is attached from the basic logo to the outside. |
Notes
- *The drain hole with 8mm dia. is needed at the bottom of signage in the case of being installed outdoor locations.
- *The designated AC/DC Power Supply to be used.
- *Minimum letter height, minimum letter thickness and minimum stroke width vary depending on the light source. For details, please refer to our sales representatives.
- *This product can be manufactured in accordance with “UL standard” or “CE mark” upon request. Please contact us for details about standards such as UL, CE, CCC and KC.
Precautions
- *See “Warranty Policy” before placing orders.
- *Film and inkjet parts are not covered under the warranty.
- *Product specification and appearance may be subject to change without notice due to product improvement.
- *Some letters cannot be manufactured depending on the font type. Please send us your logo artwork in Adobe Illustrator format, and we will provide an accurate quotation.
Color Variations
Color Variations
For the Light Source of LED Channel Letter
LED Custom Unit(Recommended Size: middle)
Incorporating the One-off Custom Designed Circuit Board into our Channel Letter. It is suitable for the logos with narrow strokes or a thin body. We’ve put together an abundance of LED color variations.
Face Lit | Thickness 40mm~
Back Lit | Thickness 25mm~
*Please note that Antique Lamp,Candle Color,Sky Blue,Yellow,Purple,Pink are indoor use only.
*The actual colors may slightly differ from images above.
For the Light Source of LED Channel Letter
LED Module(Recommended Size: middle-large)
For high quality assurance, we select high quality and reliable LED modules that checked against the inspection standards of our in-house quality assurance body. LED modules are selected in accordance with the installation environment and lettering sizes. LEDs come in three hues of white, red, blue, and green.
Face Lit | Thickness 70mm~
Back Lit | Thickness 50mm~
*The actual colors may slightly differ from images above.
