Taff Lite Sign

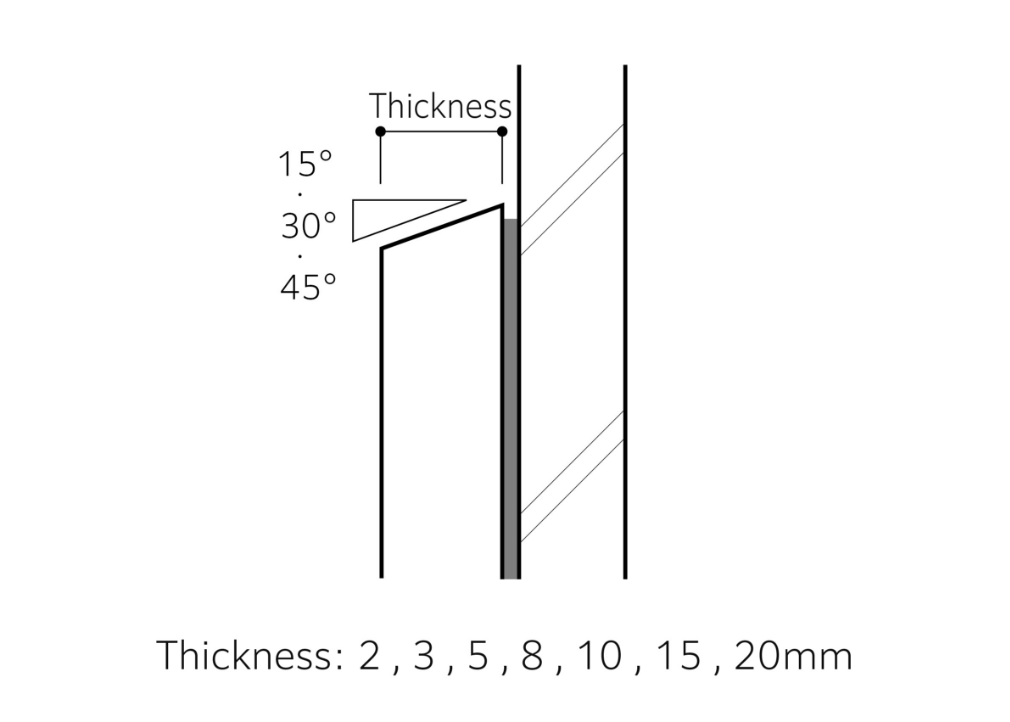

Bevel Cut (15°, 30°, 45°)

Beveled finish gives volume and presence to your signs. For design containing very small or intricate parts, Bevel Cut provides lower cost and easier installation by connecting them into one piece.

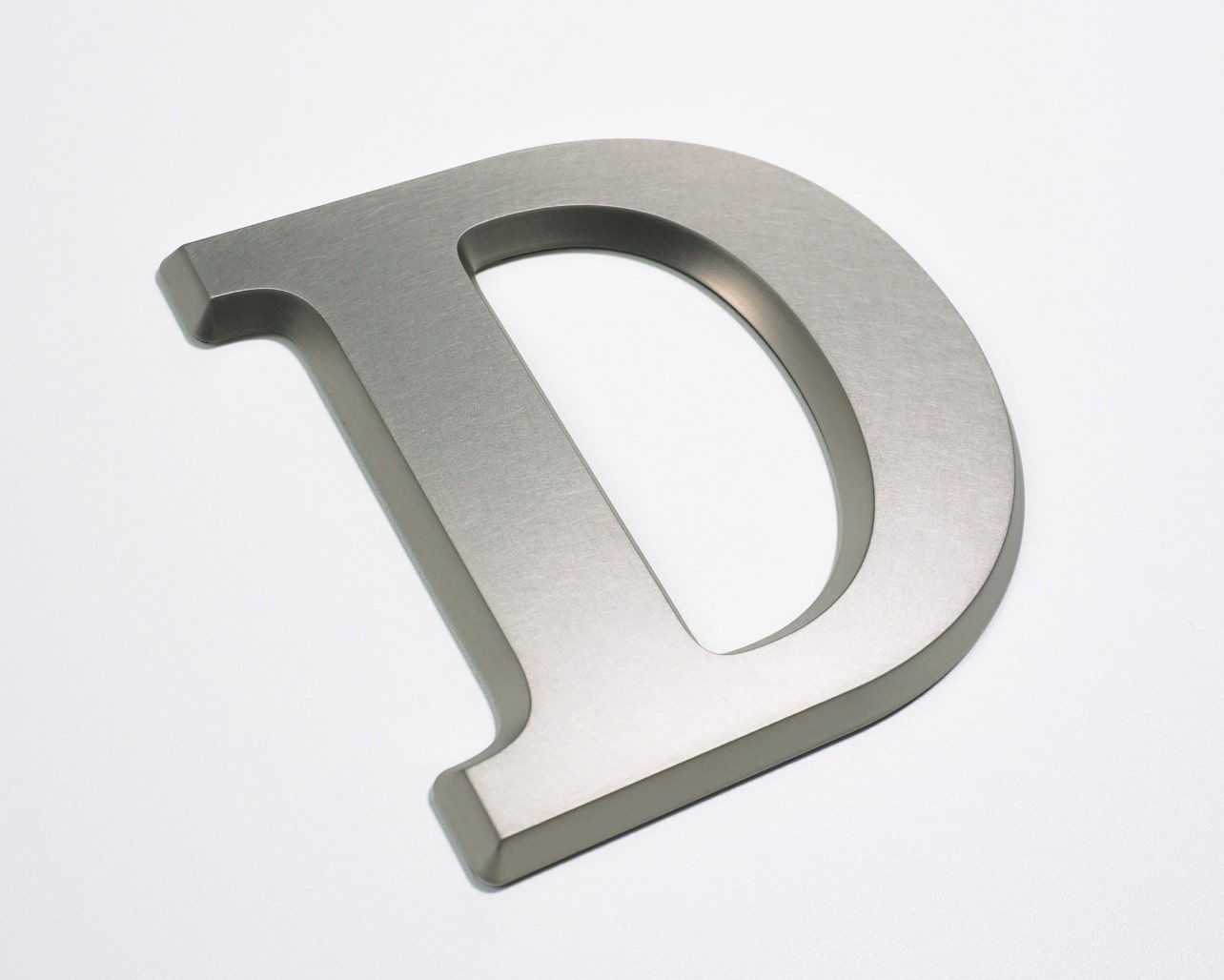

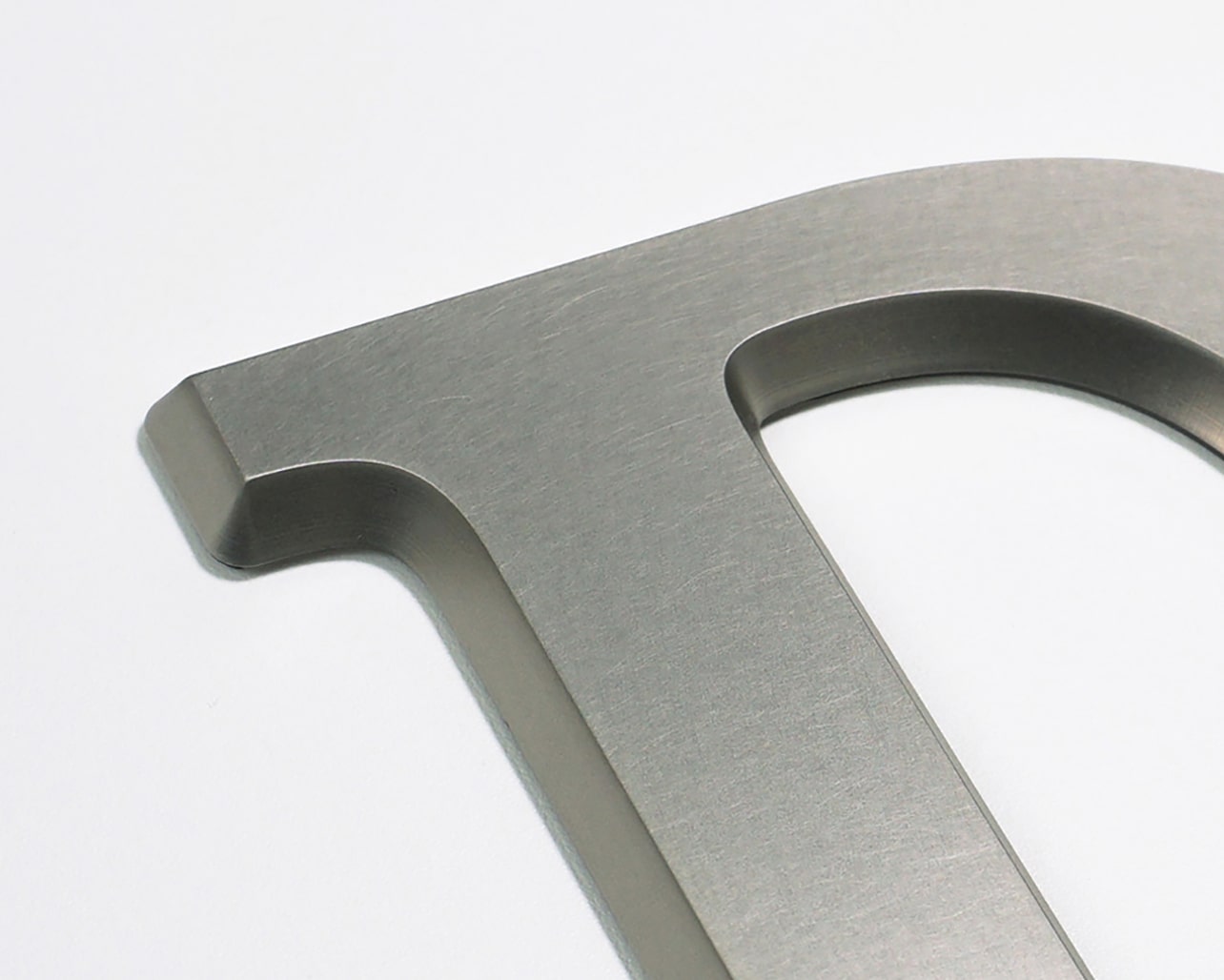

Type: Taff Lite 5mm Thick / 30° Bevel Cut Finish: Scuffed Nickel — Type: Taff Lite 5mm Thick / 30° Bevel Cut
Finish: Scuffed Nickel

Showcase

Notes

*Dimensions of the letter bottom vary depending on the thickness and bevel angle of the letter. Please contact us for further information.
*For some plating variations, sides of the letters are to be painted in a similar color to the surface finish. Please refer to the color variations below.
*Custom paint on sides is applicable at your request.
*Some letters may not be manufactured due to the size or font. Please contact us for further information.

Color Variations

Metal Plating Finish

・The Star Mark (★) indicates the finish / price grade of each color variation.

・The asterisk (*) means the finish comes with custom painted sides.

Our latest cutting-edge top coat technology has enabled us to create metal plating finishes with weather resistance parallel to metal. This includes our chrome finish, which has a proven track record as a car emblem and boasts excellent outdoor weather resistance, as well as our nickel, copper, and other types of plated finishes allowing you to use them outdoors with confidence. (*Excluding frosted type).

Chrome
Frosted Chrome
Nickel
Brushed Nickel
Scuffed Nickel
Frosted Nickel
Honing Silver Clear
Gold
Frosted Gold
Honing Gold Clear
Gold Clear
Red Gold Clear
Frosted Gold Clear
Scuffed Gold Clear
Brushed Gold Clear
Champagne Gold Clear
Pink Gold Clear
Black Nickel
Frosted Black
*Brushed Black Nickel
Honing Black Clear
Embossed Nickel
Embossed Gold
Embossed Copper
Embossed Black

Aged Plating Finish

Aged finish, which reproduces a dignified antique color as if time has actually passed, is an exquisite finish in which sulfur oxidation and coloring are executed by hand using special chemicals. This is done after metal plating with nickel and other metals.

*As with natural weathering, the same finish cannot be duplicated. Please understand in advance that regardless of the quantity ordered, the difference in finish is characteristic of a one-of-a-kind (hand-made) work.

*Aged Copper A
*Aged Copper B
*Aged Copper C
*Aged Matte Copper
*Aged Copper
*Aged Gold Bronze A
*Aged Gold Bronze B
*Aged Gold Bronze C
*Gold Matte Bronze
*Gold Bronze
*Aged Silver A
*Aged Silver B
*Aged Silver C
*Silver Matte Bronze

*The actual colors may slightly differ from images above. Actual cut samples can be ordered as required.

CONTACT

■Contact us by phone

Global Sales Group (Headquarters)+81-6-6626-9680

DAIKAN HONG KONG LIMITED+852-3618-8360

■Contact us by email
Contact
■FAQ (Frequently Asked Questions)
FAQ

Notes for Bevel Cutting Style

The outline of the provided artwork becomes the surface line of the actual letter. The bottom line is offset "d-mm" from the outline edge. Each letter can be connected or separated depending on the layout and the angle of the bit head. We usually recommend that you choose the connected layout, since it is much easier to install. It is important to note that if the connections are too small, the joints may break. However, if you follow the specs in the table below, we can ensure a successful install. For separated letters, the gap between the letters needs to be at least twice the gap as with the connected letters.

*This is a Good Connected Layout. The joint is strong enough.
*This is a Poor Connected Layout. The joint is not strong enough.
*This is a Separated Layout.

Bevel Angle

*Semi-Straight Cut
6°Bevel
*Semi-Straight Cut
8°Bevel
15°Bevel
20°Bevel
30°Bevel
45°Bevel
60°Bevel

There are many selectons of bit heads, each suitable for any design.
We can provide custom angles, please contact us for details.

Bevel Angle and Offset Distance Comparison

1: For Connected Layout, keep the distance small, as indicated in the table.
2: For Separated Layout, make the gap twice the measurement indicated in the table.

Angle	6° (Semi-Straight Cut)		8° (Semi-Straight Cut)	15°	20°	30°	45°	60°
	Offset		Offset	Offset	Offset	Offset	Offset	Offset
Thickness	ABS	Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic
2mm	0.21mm	×	0.28mm	0.54mm	0.73mm	1.15mm	2.0mm	3.46mm
3mm	0.31mm	×	0.42mm	0.8mm	1.09mm	1.73mm	3.0mm	5.19mm
5mm	0.53mm	×	0.7mm	1.34mm	1.82mm	2.89mm	5.0mm	8.65mm
8mm	0.84mm	×	1.12mm	2.14mm	2.91mm	4.62mm	8.0mm	13.84mm
10mm	1.05mm	×	1.4mm	2.68mm	3.64mm	5.77mm	10mm	17.3mm
15mm	1.58mm	×	2.1mm	4.02mm	5.46mm	8.66mm	15mm	×
20mm	2.1mm	×	2.81mm	5.36mm	7.28mm	11.54mm	20mm	×
25mm	2.63mm	×	3.51mm	×	×	×	×	×
30mm	3.15mm	×	4.22mm	×	×	×	×	×
