D-Letter
Bevel Cut (15°, 30°, 45°)
Color Variations
Color Variations
Custom Painted Finish
Daikan uses solid colors created by blending colors corresponding to the ink color guides (color numbers) represented by Pantone, RAL, and Benjamin Moore, etc.
Gloss finishes are available in 4 types
Metallic Painted Finish
Paint finishes mixed with shimmering, light-reflecting materials, such as metallics or pearls, commonly used in car paint colors.
This finish offers the advantage of lower costs compared to metal plating.
*It is a Metallic Paint, not a Mirror Surface.
*Custom Metallic Colors such as Auto Paint Colors are also available.
*The standard finish is “Gloss”. Please contact us if you require a specific gloss finish.
*The actual colors may slightly differ from images above.
Material Paint (Aged Paint)
Material Painting is the highest grade of painting technique, creating each by our expert paint technicians’s hand. Our technicians leverage specialized treatments and techniques to create the vintage atmosphere of long-accumulated years of Black Iron, Phosphate Coating, Iron Rust, Patina Copper etc.
*We can also match the provided actual stone or tile. Please contact us for further information.
*Each item exhibits a unique finish and feel. Aged painting is an expression of time that achieves a slightly different finish depending on the size and shape of the object to be aged painted, and the sensitivity and sensibility of each individual painter. Each piece is finished by hand and, as with any naturally occurring weathering, no two pieces will ever be the same. Regardless of the quantity ordered, you will find unique differences in each finished product, making it a true one-of-a-kind product.
Custom Painted on Surface
Two-tone finish on the face and sides enhances visual presentation, and provides good legibility to signs with small or intricate parts connected into one piece.
Processing conditions
Thickness: 2, 3, 5mm
Sides: Black or White
Cutting Variation: Semi-Straight Cut or Bevel Cut
CONTACT
■Contact us by phone
Global Sales Group (Headquarters)+81-6-6626-9680
DAIKAN HONG KONG LIMITED+852-3618-8360
Notes for Bevel Cutting Style

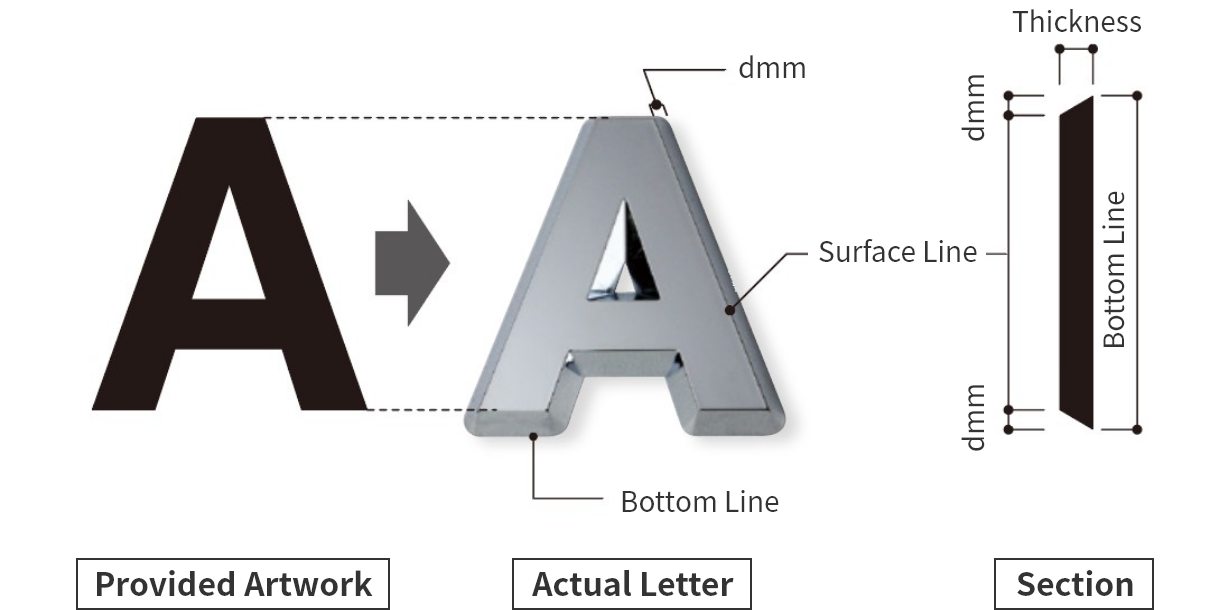

The outline of the provided artwork becomes the surface line of the actual letter. The bottom line is offset "d-mm" from the outline edge. Each letter can be connected or separated depending on the layout and the angle of the bit head. We usually recommend that you choose the connected layout, since it is much easier to install. It is important to note that if the connections are too small, the joints may break. However, if you follow the specs in the table below, we can ensure a successful install. For separated letters, the gap between the letters needs to be at least twice the gap as with the connected letters.
-

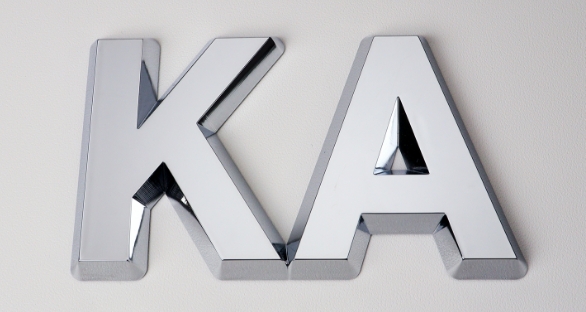

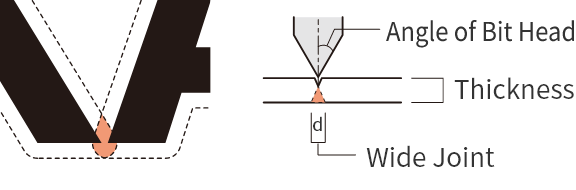

*This is a Good Connected Layout. The joint is strong enough.
-

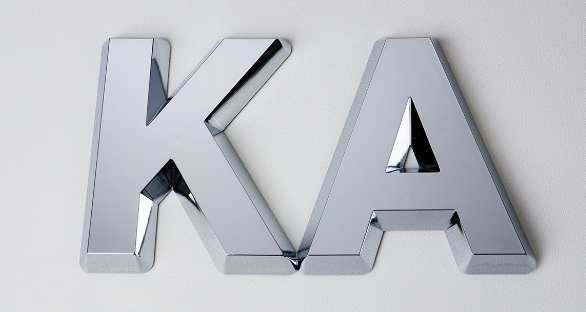

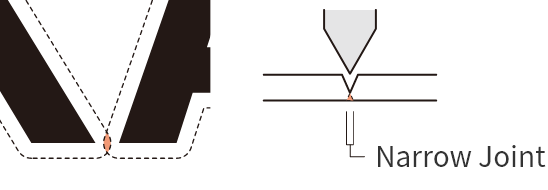

*This is a Poor Connected Layout. The joint is not strong enough.
-

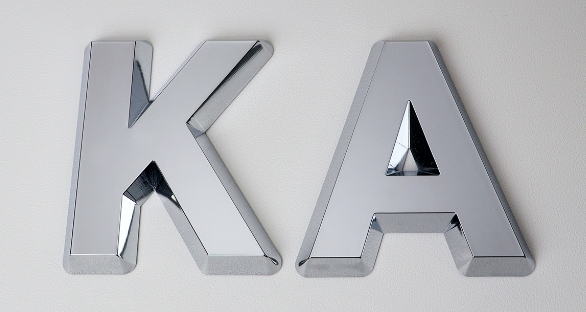

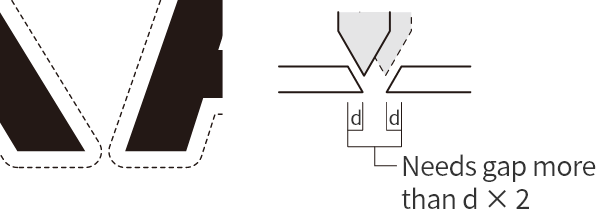

*This is a Separated Layout.
Bevel Angle
-
*Semi-Straight Cut
6°Bevel -
*Semi-Straight Cut
8°Bevel -
15°Bevel
-
20°Bevel
-
30°Bevel
-
45°Bevel
-
60°Bevel
There are many selectons of bit heads, each suitable for any design.
We can provide custom angles, please contact us for details.
Bevel Angle and Offset Distance Comparison
1: For Connected Layout, keep the distance small, as indicated in the table.
2: For Separated Layout, make the gap twice the measurement indicated in the table.
Angle | 6° (Semi-Straight Cut) |
8° (Semi-Straight Cut) |
15° | 20° | 30° | 45° | 60° | |
---|---|---|---|---|---|---|---|---|
Offset |
Offset |
Offset |
Offset |
Offset |
Offset |
Offset |
||
Thickness | ABS | Acrylic | ABS, Acrylic | ABS, Acrylic | ABS, Acrylic | ABS, Acrylic | ABS, Acrylic | ABS, Acrylic |
2mm | 0.21mm | × | 0.28mm | 0.54mm | 0.73mm | 1.15mm | 2.0mm | 3.46mm |
3mm | 0.31mm | × | 0.42mm | 0.8mm | 1.09mm | 1.73mm | 3.0mm | 5.19mm |
5mm | 0.53mm | × | 0.7mm | 1.34mm | 1.82mm | 2.89mm | 5.0mm | 8.65mm |
8mm | 0.84mm | × | 1.12mm | 2.14mm | 2.91mm | 4.62mm | 8.0mm | 13.84mm |
10mm | 1.05mm | × | 1.4mm | 2.68mm | 3.64mm | 5.77mm | 10mm | 17.3mm |
15mm | 1.58mm | × | 2.1mm | 4.02mm | 5.46mm | 8.66mm | 15mm | × |
20mm | 2.1mm | × | 2.81mm | 5.36mm | 7.28mm | 11.54mm | 20mm | × |
25mm | 2.63mm | × | 3.51mm | × | × | × | × | × |
30mm | 3.15mm | × | 4.22mm | × | × | × | × | × |
