D-Letter

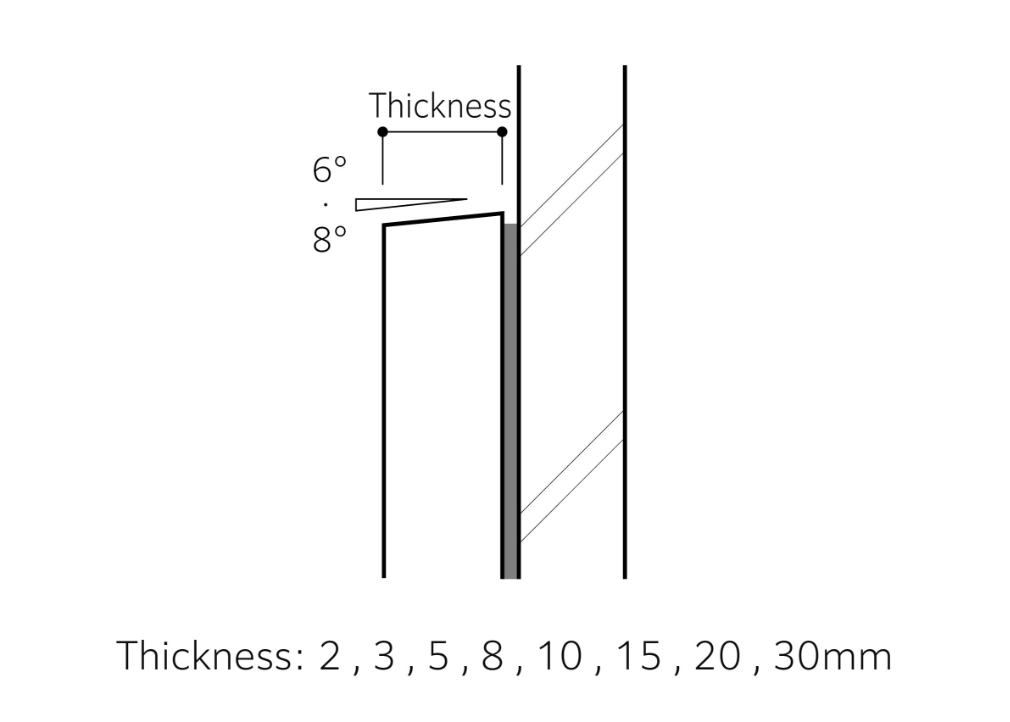

Semi-Straight Cut (6°, 8°)

The Semi-Straight Cut, a nearly right-angled bevel of 6° or 8°, is our standard cutting style, and enables us to manufacture signs containing delicately designed logos and designated typefaces.

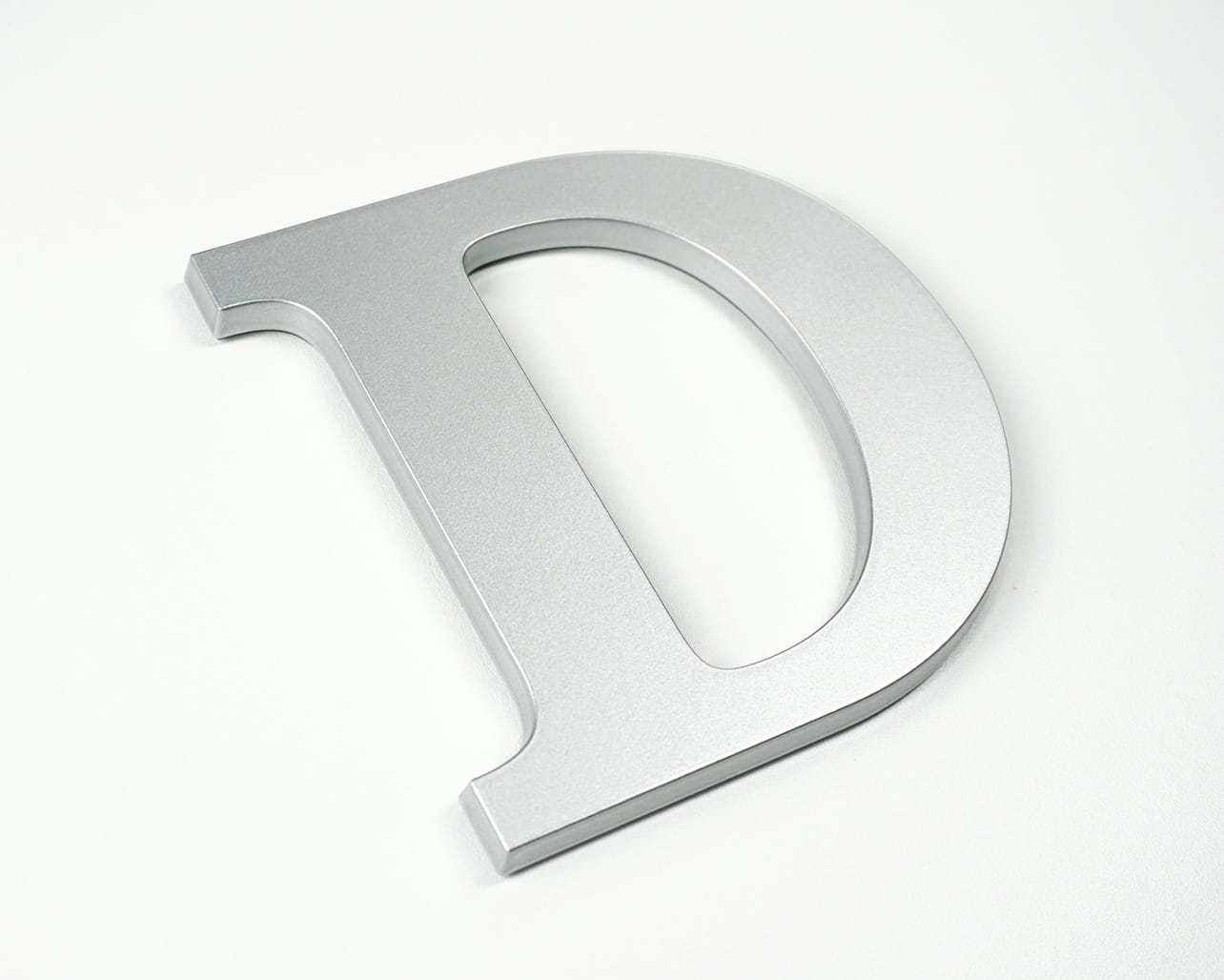

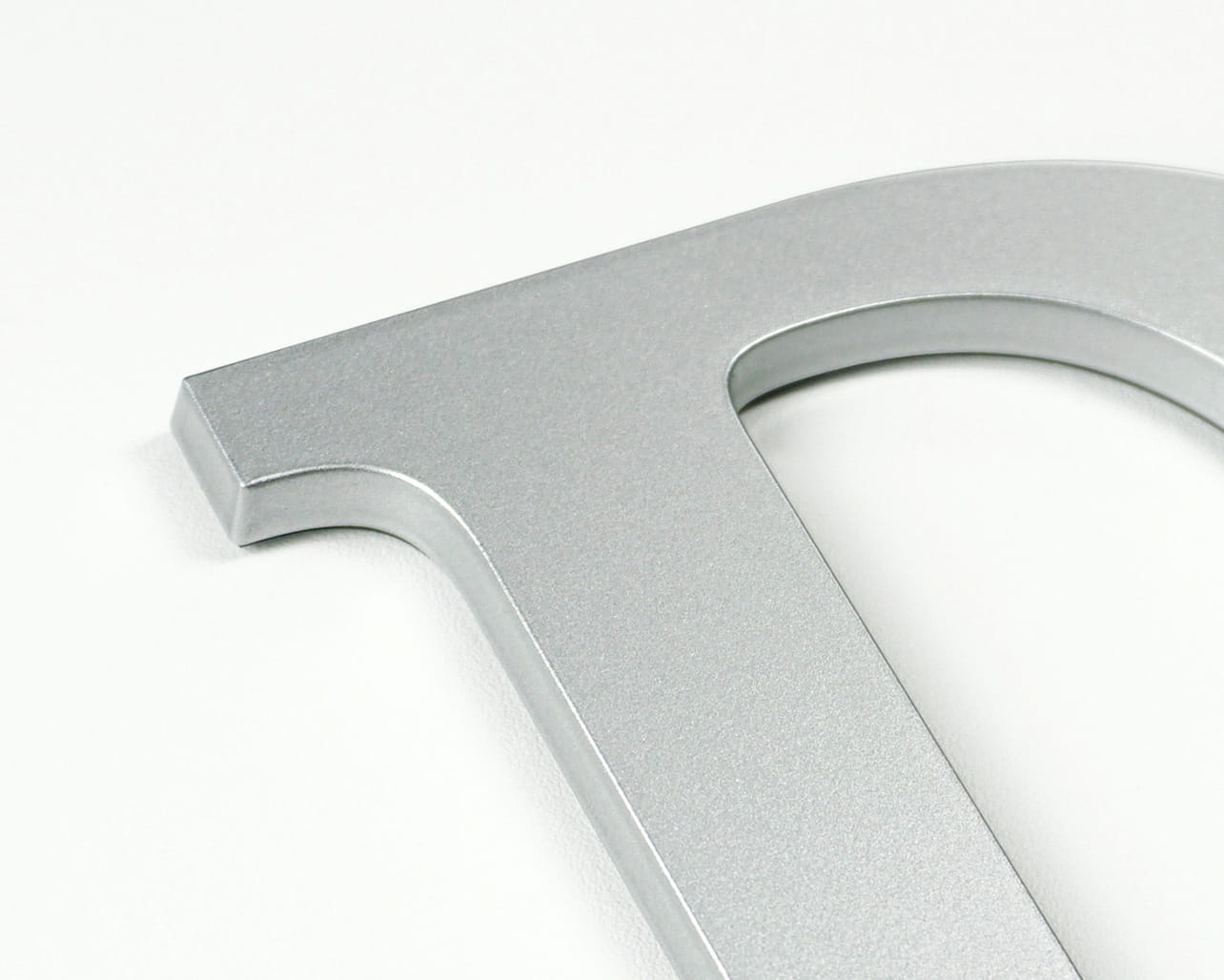

Type: D-Letter 5mm Thick / 8°Semi-Straight Cut
Finish: Snow Medium Painted

Showcase

Notes

*Standard Bevel Angle of Semi-Straight is 8°. Please specify if you need 6° angle.
*Dimensions of the letter bottom vary depending on the thickness and bevel angle of the letter.Please contact us for further information.
*Some letters may not be manufactured due to the size or font. Please contact us for further information.

Color Variations

Custom Painted Finish

Daikan uses solid colors created by blending colors corresponding to the ink color guides (color numbers) represented by Pantone, RAL, and Benjamin Moore, etc.

Nittoko L05-40V (High Gross)
DIC-2586 (Satin)
Nittoko L42-50L (Matte)
DIC-2534 (Matte)

Gloss finishes are available in 4 types

Gloss
Semi-Gloss
30% Gloss
Matte

Metallic Painted Finish

Paint finishes mixed with shimmering, light-reflecting materials, such as metallics or pearls, commonly used in car paint colors.
This finish offers the advantage of lower costs compared to metal plating.

*It is a Metallic Paint, not a Mirror Surface.

*Custom Metallic Colors such as Auto Paint Colors are also available.

*The standard finish is “Gloss”. Please contact us if you require a specific gloss finish.

Sparkle Silver Paint
Snow Medium Paint
Superior Gold Paint
Champagne Gold Paint
Gold Matte Bronze Paint
Silver Matte Bronze Paint
Honing Silver Paint
Honing Gold Paint
Honing Black Paint
Gold Bronze Paint
Aged Copper Paint
Platinum Silver Paint

*The actual colors may slightly differ from images above.

Material Paint (Aged Paint)

Material Painting is the highest grade of painting technique, creating each by our expert paint technicians’s hand. Our technicians leverage specialized treatments and techniques to create the vintage atmosphere of long-accumulated years of Black Iron, Phosphate Coating, Iron Rust, Patina Copper etc.

MP-ARI-01
(Aged Rusted Iron 01)
MP-PHC-03
(Phosphate Coating 03)
MP-BLI-01
(Black Iron 01)

*We can also match the provided actual stone or tile. Please contact us for further information.

*Each item exhibits a unique finish and feel. Aged painting is an expression of time that achieves a slightly different finish depending on the size and shape of the object to be aged painted, and the sensitivity and sensibility of each individual painter. Each piece is finished by hand and, as with any naturally occurring weathering, no two pieces will ever be the same. Regardless of the quantity ordered, you will find unique differences in each finished product, making it a true one-of-a-kind product.

Custom Painted on Surface

Two-tone finish on the face and sides enhances visual presentation, and provides good legibility to signs with small or intricate parts connected into one piece.

Sides: Black
Sides: White

Processing conditions

Thickness: 2, 3, 5mm
Sides: Black or White
Cutting Variation: Semi-Straight Cut or Bevel Cut

CONTACT

■Contact us by phone

Global Sales Group (Headquarters)+81-6-6626-9680

DAIKAN HONG KONG LIMITED+852-3618-8360

■Contact us by email
Contact
■FAQ (Frequently Asked Questions)
FAQ

Notes for Bevel Cutting Style

The outline of the provided artwork becomes the surface line of the actual letter. The bottom line is offset "d-mm" from the outline edge. Each letter can be connected or separated depending on the layout and the angle of the bit head. We usually recommend that you choose the connected layout, since it is much easier to install. It is important to note that if the connections are too small, the joints may break. However, if you follow the specs in the table below, we can ensure a successful install. For separated letters, the gap between the letters needs to be at least twice the gap as with the connected letters.

*This is a Good Connected Layout. The joint is strong enough.
*This is a Poor Connected Layout. The joint is not strong enough.
*This is a Separated Layout.

Bevel Angle

*Semi-Straight Cut
6°Bevel
*Semi-Straight Cut
8°Bevel
15°Bevel
20°Bevel
30°Bevel
45°Bevel
60°Bevel

There are many selectons of bit heads, each suitable for any design.
We can provide custom angles, please contact us for details.

Bevel Angle and Offset Distance Comparison

1: For Connected Layout, keep the distance small, as indicated in the table.
2: For Separated Layout, make the gap twice the measurement indicated in the table.

Angle	6° (Semi-Straight Cut)		8° (Semi-Straight Cut)	15°	20°	30°	45°	60°
	Offset		Offset	Offset	Offset	Offset	Offset	Offset
Thickness	ABS	Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic
2mm	0.21mm	×	0.28mm	0.54mm	0.73mm	1.15mm	2.0mm	3.46mm
3mm	0.31mm	×	0.42mm	0.8mm	1.09mm	1.73mm	3.0mm	5.19mm
5mm	0.53mm	×	0.7mm	1.34mm	1.82mm	2.89mm	5.0mm	8.65mm
8mm	0.84mm	×	1.12mm	2.14mm	2.91mm	4.62mm	8.0mm	13.84mm
10mm	1.05mm	×	1.4mm	2.68mm	3.64mm	5.77mm	10mm	17.3mm
15mm	1.58mm	×	2.1mm	4.02mm	5.46mm	8.66mm	15mm	×
20mm	2.1mm	×	2.81mm	5.36mm	7.28mm	11.54mm	20mm	×
25mm	2.63mm	×	3.51mm	×	×	×	×	×
30mm	3.15mm	×	4.22mm	×	×	×	×	×
