Crystal Letter

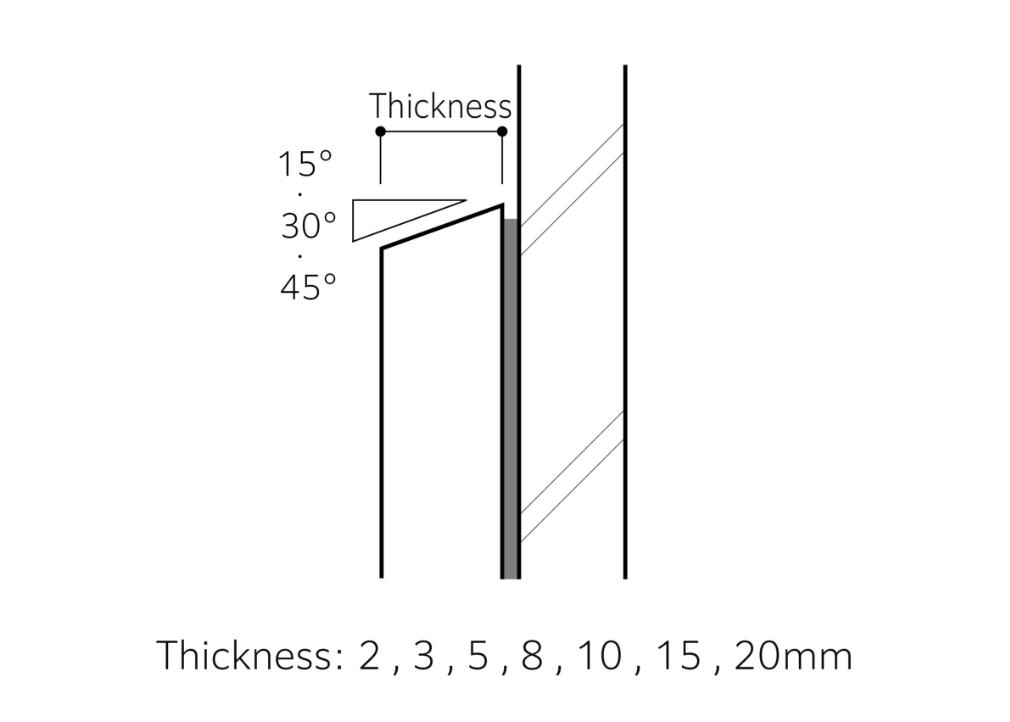

Bevel Cut (15°, 30°)

Beveled finish gives volume and presence to your signs. For design containing very small or intricate parts, Bevel Cut provides lower cost and easier installation by connecting them into one piece.

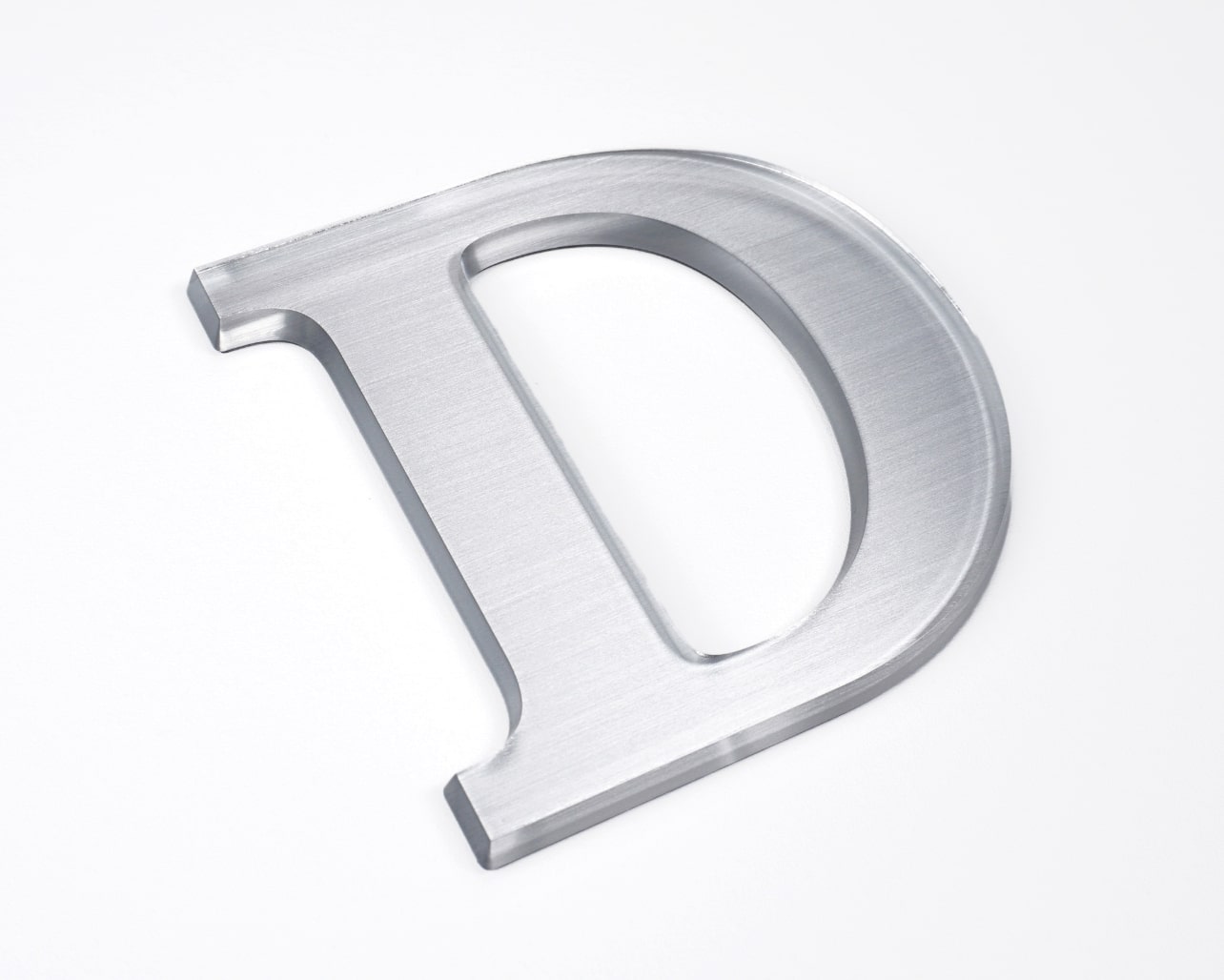

Type: Crystal Letter 5mm Thick / 15°Bevel Cut Finish: Brushed Aluminum Silver on Rear Side — Type: Crystal Letter 5mm Thick / 15°Bevel Cut
Finish: Brushed Aluminum Silver on Rear Side

Showcase

Notes

*Dimensions of the letter bottom vary depending on the thickness and bevel angle of the letter. Please contact us for further information.
*Some letters may not be manufactured due to the size or font. Please contact us for further information.

Color Variations

Painted Type from Rear Side

The custom color is mixed according to the ink color guides (color number) from PANTONE, RAL and Benjamin Moore etc., and then applied for painted finish on rear side of the clear acrylic.

*Frosted Coating on Face

*We can also match the provided color sample.
*Highly saturated colors of special inks are difficult to reproduce.

*Frosted coating on face is available.
*Daikan Standard Metallic Painted Finish is also available.

Available Size

Size: H1000 × W2000mm / Thickness: 2, 3, 5, 8, 10, 15, 20mm

UV Direct Print on Rear Side

We use UV (ultraviolet light) curing inks to print in full color, at high resolutions of 1200 dpi, directly from the rear side of clear acrylic. The light from the lighting penetrates through the cut surface of the letters, making the various gradations more vivid to the eye.

*The standard service includes color output according to the provided artwork.

*Additional fees apply if you wish to match the color to a provided color number or sample. (Estimated on a case-by-case basis depending on the number of colors)

Available Size

Size: H1250 × W2450mm / Thickness: 2, 3, 5, 8, 10mm

Metal Plating Type on Rear Side (Clear Mirror)

Clear Mirror letters and ornamental products integrate the light-reflecting qualities of mirrored surfaces with a highly transmittable clear acrylic. It reflects diverse light sources and interiors including natural light and designer illumination, coupled with a luxurious elegance that takes lighting design to the next level.

CM-001
Gold Mirror
CM-002
Silver Mirror
CM-003
Smoke Mirror
CM-004
Bronze Mirror
CM-005
Glass Mirror

Available Size

Size: H1200 × W1800mm / Thickness: 3, 5mm

*Please note that the installation location is indoor only.(Outdoor is not available)

Painted Type on Rear Side (Crystal Metal Coat)

Metal Coat fuses painting technologies to deliver a combined translucent and metallic feel. A specialized metallic paint is applied on the rear side of clear acrylic to create a variety of finishes 2 patters of brushed (HL) and scuffed (PHL), and 6 other coating color variations. Customized colors are available on demand. Please contact us for more details.

Brushed Aluminum Silver
Scuffed Aluminum Silver
Brushed Stainless Steel Silver
Scuffed Stainless Steel Silver
Brushed Gold
Scuffed Gold
Brushed Black
Scuffed Black
Brushed Gold Bronze
Scuffed Gold Bronze
Brushed Pink Bronze
Scuffed Pink Bronze

*The actual colors may slightly differ from images above.

Available Size

Brushed (HL)

Size: H1000 × W2000mm / Thickness: 2, 3, 5, 8, 10, 15mm

Scuffed (PHL)

Size: H1200 × W2400mm / Thickness: 2, 3, 5, 8, 10, 15mm

*Stock available in 5mm thick Brushed Aluminum Silver and Brushed Gold.

*Brushed direction available in a longitudinal direction.

*Please note that the installation location is indoor only.(Outdoor is not available)

CONTACT

■Contact us by phone

Global Sales Group (Headquarters)+81-6-6626-9680

DAIKAN HONG KONG LIMITED+852-3618-8360

■Contact us by email
Contact
■FAQ (Frequently Asked Questions)
FAQ

Notes for Bevel Cutting Style

The outline of the provided artwork becomes the surface line of the actual letter. The bottom line is offset "d-mm" from the outline edge. Each letter can be connected or separated depending on the layout and the angle of the bit head. We usually recommend that you choose the connected layout, since it is much easier to install. It is important to note that if the connections are too small, the joints may break. However, if you follow the specs in the table below, we can ensure a successful install. For separated letters, the gap between the letters needs to be at least twice the gap as with the connected letters.

*This is a Good Connected Layout. The joint is strong enough.
*This is a Poor Connected Layout. The joint is not strong enough.
*This is a Separated Layout.

Bevel Angle

*Semi-Straight Cut
6°Bevel
*Semi-Straight Cut
8°Bevel
15°Bevel
20°Bevel
30°Bevel
45°Bevel
60°Bevel

There are many selectons of bit heads, each suitable for any design.
We can provide custom angles, please contact us for details.

Bevel Angle and Offset Distance Comparison

1: For Connected Layout, keep the distance small, as indicated in the table.
2: For Separated Layout, make the gap twice the measurement indicated in the table.

Angle	6° (Semi-Straight Cut)		8° (Semi-Straight Cut)	15°	20°	30°	45°	60°
	Offset		Offset	Offset	Offset	Offset	Offset	Offset
Thickness	ABS	Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic	ABS, Acrylic
2mm	0.21mm	×	0.28mm	0.54mm	0.73mm	1.15mm	2.0mm	3.46mm
3mm	0.31mm	×	0.42mm	0.8mm	1.09mm	1.73mm	3.0mm	5.19mm
5mm	0.53mm	×	0.7mm	1.34mm	1.82mm	2.89mm	5.0mm	8.65mm
8mm	0.84mm	×	1.12mm	2.14mm	2.91mm	4.62mm	8.0mm	13.84mm
10mm	1.05mm	×	1.4mm	2.68mm	3.64mm	5.77mm	10mm	17.3mm
15mm	1.58mm	×	2.1mm	4.02mm	5.46mm	8.66mm	15mm	×
20mm	2.1mm	×	2.81mm	5.36mm	7.28mm	11.54mm	20mm	×
25mm	2.63mm	×	3.51mm	×	×	×	×	×
30mm	3.15mm	×	4.22mm	×	×	×	×	×
